American Trailer Axle 13ton

American Trailer Axle 13ton thumbnail-1
American Trailer Axle 13ton photo-1
US$ 350 - 650 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Axles
OEM No.:
all
Max Payload:
13T
Contact Supplier Request Quote Chat Now
Xiamen Tinmy Autoparts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Axles
OEM No. all
Max Payload 13T
Size Track:1840mm
Place of Origin Fujian, China
Brand Name TINMY
Model Number TMAD13-A01

13T trailer axle:



1. Type: Drum, spoke axle,
2. Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3. Certificate: ISO/TS16949

4. High quality, competitive price & fast delivery



Tinmy Axle Factory can supply various axles for different trucks and trailers



1. American type axle and German type axle with different capacity from 1ton-25ton

2. Other special axles are available according to clients's design or requirement

3. The annual turnout is over 100.000 pieces based on on-time deliery.

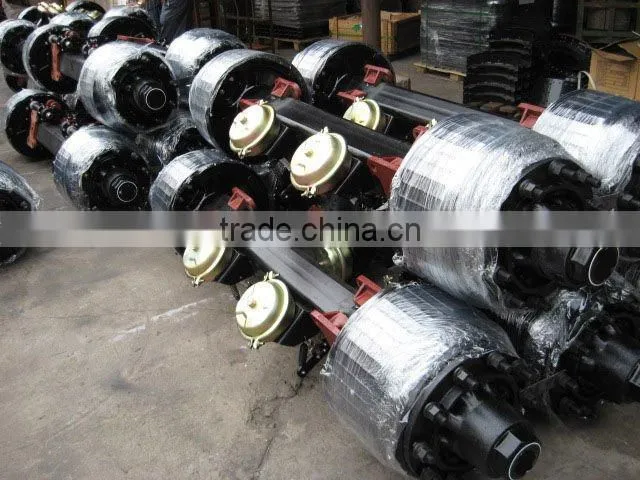

American trailer axle 13ton



American Inboard And Outboard Series Axle

Item No. Capacity (T) Track (mm) Axle Beam (mm) Center Distance Of Chamber (mm) Brake Spec(mm) Wheel Fixing                                (mm)          Wheel Rim  Total Length (mm) Weight (Kg) Bearing
    L2   L3   D1xD2   L1   Inner/Outer
TMAD05-A01 5 1700 90 600 S320*95 6xM20xΦ222.5xΦ162 5.5F-16 1908   7514/7813
TMAD08-A01 8 1800 130 455 S 420*150 8xM20xΦ285xΦ221 7.5V-20 2138   7816/7513
TMAD10-A01 10 2335 140 511 S 420*180 10xM22xΦ335xΦ281 7.5V-20 2165 361 HM518445/10
TMAD11-A01 11 1850 127 450 S 312*180 10xM22xΦ285.75xΦ221 6.5-15 2165 347 HM518445/10
33213

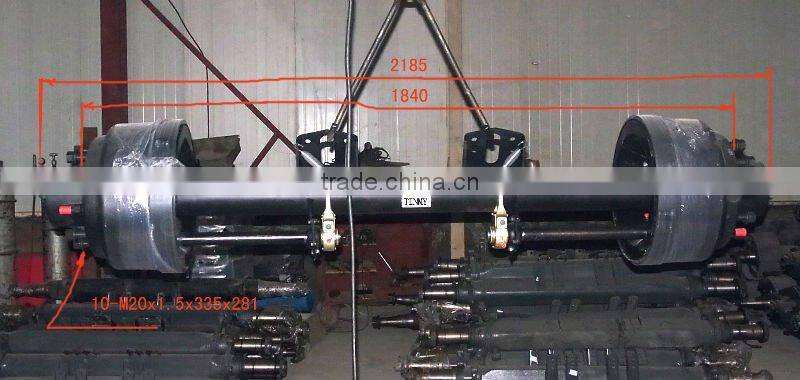

TMAD13-A01 13 1840 150*150 388 S 420*180 10x7/8"xΦ335xΦ281 7.5V-20 2185 362 HM518445/10                 HM518445/10
TMAD13-A02 13 1840 150*150 388 S 420*180 8xM20xΦ285xΦ221 7.5V-20 2185 365
TMAD14-A01 14 1840 150*150 348 S 420*180 10xM22xΦ335xΦ281 8.0V-20 2192 408 HM518445/10
TMAD15-A01 15 1850 150*150 396 S 420*180 8xM20xΦ285xΦ221 8.0V-20 2185 382 HM518449/10                 HM220145/10
TMAD15-A02 15 1850 150*150 396 S 420*180 10xM22xΦ335xΦ281 8.0V-20 2185 382
TMAD16-A01 16 1850 127 354 S 420*220 10xM22xΦ335xΦ281 8.5V-20 2185 421
TMAD16-A02 16 1850 150*150 354 S 420*220 10xM22xΦ335xΦ281 8.5V-20 2205 425
TMAD20-A01 20 1850 150*150 354 S 420*220 10×M24×Φ335×Φ281 8.5V-20 2270 460 32222 HM518445/10

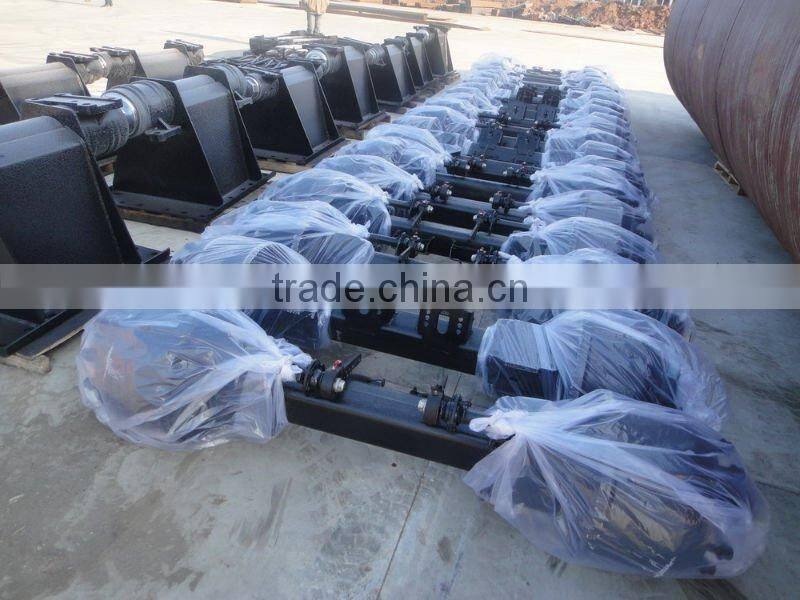

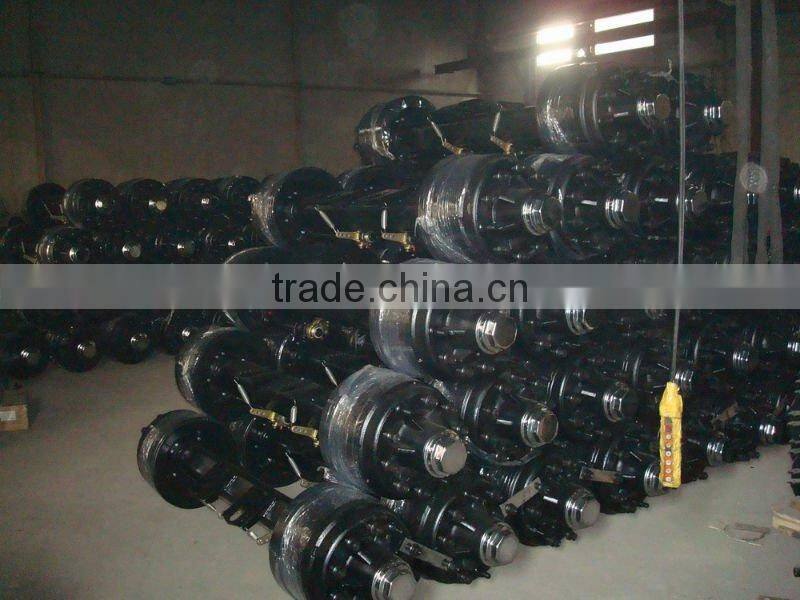

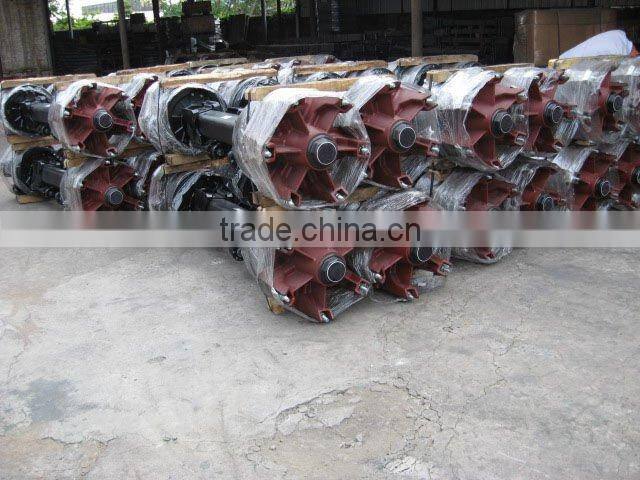

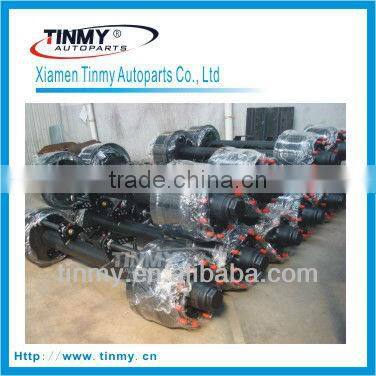

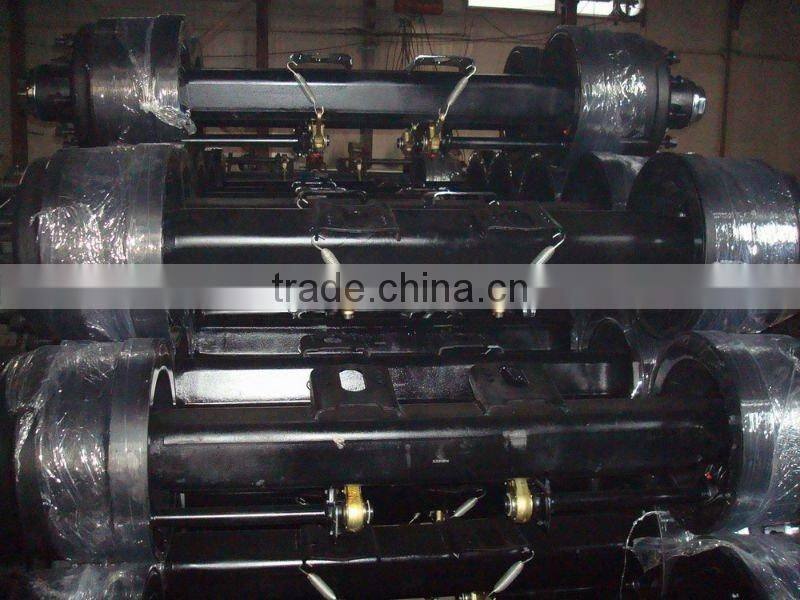

American trailer axle 13tonAmerican trailer axle 13tonAmerican trailer axle 13tonAmerican trailer axle 13tonAmerican trailer axle 13tonAmerican trailer axle 13ton


Tinmy axle factory can supply various axles for different trucks and trailers.



Xiamen Tinmy Co., Ltd, which belongs to Xiamen Tinmy Inc., Is a leading supplier in auto parts and construction machine parts that organized by several factories and joint-ventured manufacturers and is successfully certified with TS16949 and ISO9001/2000 quality control system. With more then ten years' development, our construction machine department can supply a full range of spare parts for undercarriage spare parts and bucket and so on . Our main spare parts are track roller,top roller,sprocket,track link ,bolt & nut, bucket ,teeth ,adaptor,muffler etc .
