US$ 550 - 620
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Other, Axle, Fuwa,Bpw,Saf,York
Truck Model:
Other, all Truck, Trailer, Bus
Size:
Track: 1840mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, Axle, Fuwa,Bpw,Saf,York
Truck Model
Other, all Truck, Trailer, Bus
Size
Track: 1840mm
OEM No.
TMAD13-A01
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
Spoke,Drum
Specifications

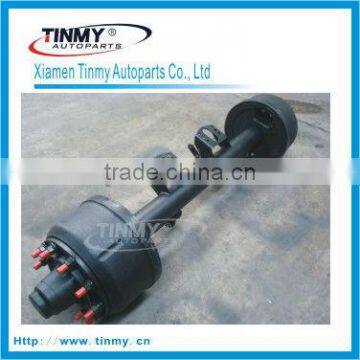

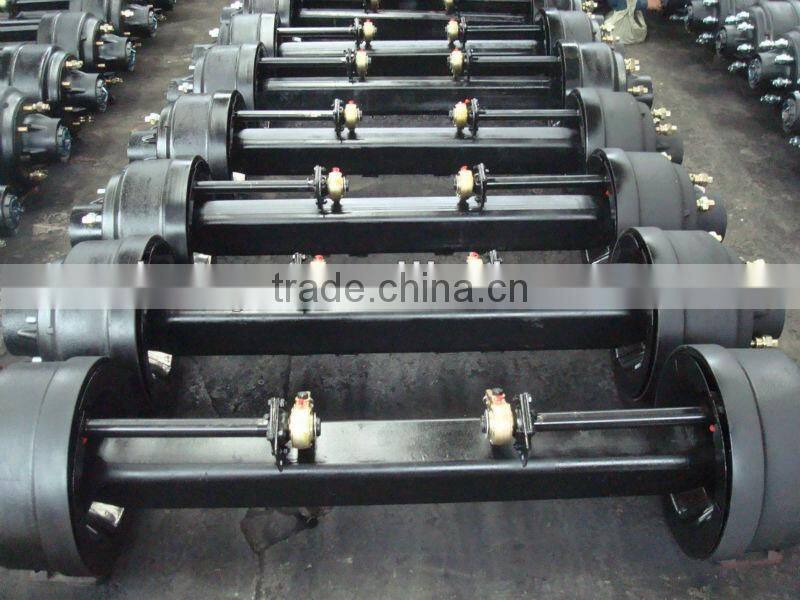

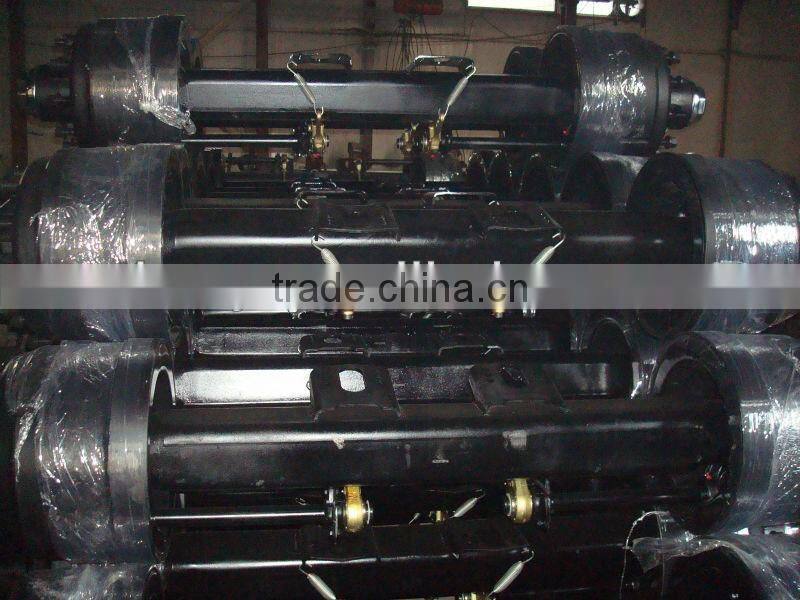

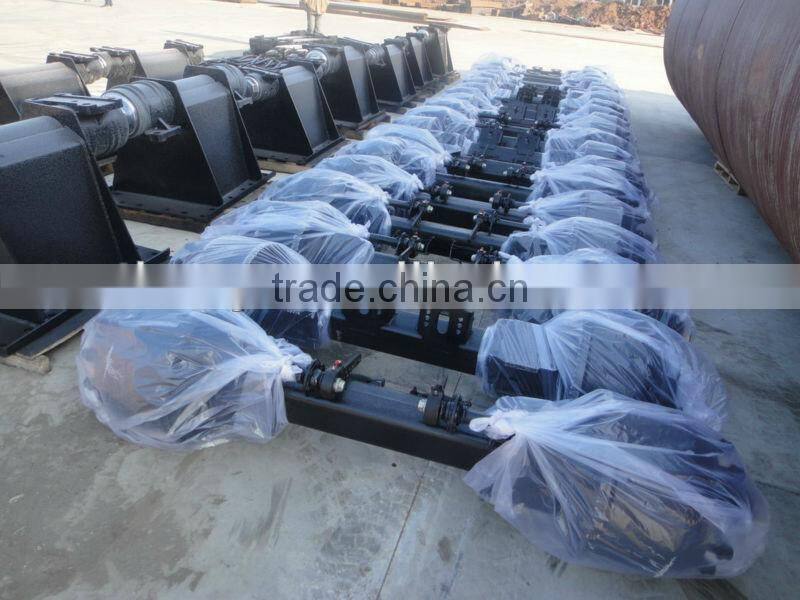

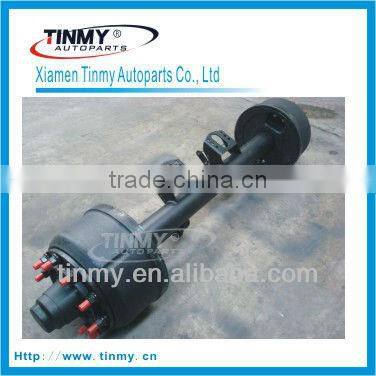

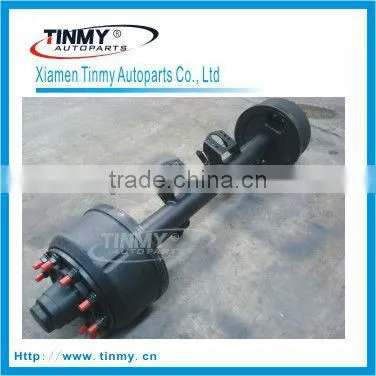

Super Quality 13T Rear Axle:1)Capacity: 5-20T axles
2)Type: Drum & spoke, German & America
3)Certificate: ISO9001/TS16949;
Super Quality Rear Axle:
1) Capacity: 5-20T
2) Type: Drum & spoke
3) Certificate: ISO9001/TS16949
Type:drum axle & spoke axle are both available
Tinmy axle factory can supply various axles for different trucks and trailers.
| American Inboard And Outboard Series Axle | ||||||||||
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Wheel Rim | Total Length (mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1xD2 | L1 | Inner/Outer | ||||||
| TMAD05-A01 | 5 | 1700 | 90 | 600 | S320*95 | 6xM20xΦ222.5xΦ162 | 5.5F-16 | 1908 | 7514/7813 | |
| TMAD08-A01 | 8 | 1800 | 130 | 455 | S 420*150 | 8xM20xΦ285xΦ221 | 7.5V-20 | 2138 | 7816/7513 | |
| TMAD10-A01 | 10 | 2335 | 140 | 511 | S 420*180 | 10xM22xΦ335xΦ281 | 7.5V-20 | 2165 | 361 | HM518445/10 |
| TMAD11-A01 | 11 | 1850 | 127 | 450 | S 312*180 | 10xM22xΦ285.75xΦ221 | 6.5-15 | 2165 | 347 | HM518445/10 33213 |
| TMAD13-A01 | 13 | 1840 | 150*150 | 388 | S 420*180 | 10x7/8"xΦ335xΦ281 | 7.5V-20 | 2185 | 362 | HM518445/10 HM518445/10 |
| TMAD13-A02 | 13 | 1840 | 150*150 | 388 | S 420*180 | 8xM20xΦ285xΦ221 | 7.5V-20 | 2185 | 365 | |
| TMAD14-A01 | 14 | 1840 | 150*150 | 348 | S 420*180 | 10xM22xΦ335xΦ281 | 8.0V-20 | 2192 | 408 | HM518445/10 |
| TMAD15-A01 | 15 | 1850 | 150*150 | 396 | S 420*180 | 8xM20xΦ285xΦ221 | 8.0V-20 | 2185 | 382 | HM518449/10 HM220145/10 |
| TMAD15-A02 | 15 | 1850 | 150*150 | 396 | S 420*180 | 10xM22xΦ335xΦ281 | 8.0V-20 | 2185 | 382 | |
| TMAD16-A01 | 16 | 1850 | 127 | 354 | S 420*220 | 10xM22xΦ335xΦ281 | 8.5V-20 | 2185 | 421 | |
| TMAD16-A02 | 16 | 1850 | 150*150 | 354 | S 420*220 | 10xM22xΦ335xΦ281 | 8.5V-20 | 2205 | 425 | |
| TMAD20-A01 | 20 | 1850 | 150*150 | 354 | S 420*220 | 10×M24×Φ335×Φ281 | 8.5V-20 | 2270 | 460 | 32222 HM518445/10 |
