Refrigerated Van Truck/Reefer transport van box trucks/refrigerator truck/cargo box van truck/Insulated Box Van Truck

Specifications

1).high quality 2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
6).high speed

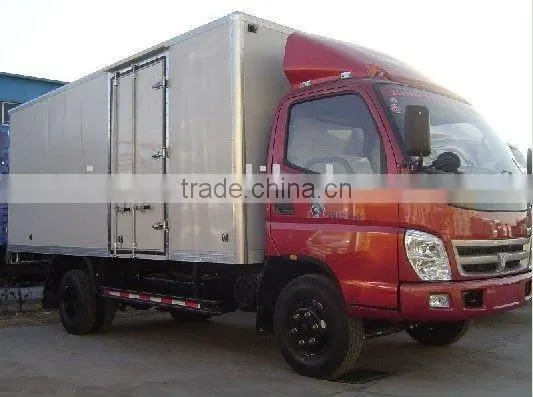

 The Foton refrigerated Truck Specifications



Model			5090XLCA3
CHASSIS	Model and ID NO.		QL1090TLARY
	Manufacturer		ISUZU Automoble Co., LTD
	Axle		2
	Wheelbase(mm)		4175mm
	Wheel Track(Front/Rear mm)		1680mm/1650mm
	Tyre Size		8.25-16,8.25R16,8.25-20,8.25R20
	Tyre		6
ENGINE	Model		4HK1-TC
	Manufacturer		ISUZU Engine Co., LTD
	Delivery Capacity(ml)		5193
	Fuel		Disel
	Rated Power(Kw)		129
	Emission Standard		GB17691-2005,GB3847-2005
FRAME	Front	Type	Steel Plate Spring
		Quantity	8
	Rear	Type	Steel Plate Spring
		Quantity	10+6
CAR LOAD	Dimension Parameters	Overall Dimensions(mm)	7750*2330*3450
		L*W*H
		Interior Cargo Body Dimentions(mm)	5710*2110*2110
		L*W*H
		Cubage(m3)	25.4m³
		Front Overhang/Rear Overhang(mm)	1110/2465
	Quality Parameters	Approch Angle/Departure Angle(°)	21/11.5
		Curb Weight(Kg)	4655KG
		Rated Payload(Kg)	4560KG
		Gross Vehicle Weight(Kg)	9410KG
	Max. Speed(km/h)		110
	Person In Cab(Persons)

Our Isuzu Trucks



We are the leading manufacture of various truck bodies and Catering Traiers Our main products are various models of Dry Cargo Truck, Containers, Insulated truck, Store stake Truck, Refrigerated trucking, medical garbage truck, hearse, Dump(Tipper) Truck, Tank Truck, Power Truck, Catering Truck, Mobile Truck, Truck Mounted Crane, IVECO Dining Car, Pull-Type Dinners and explosion-proof trucks, Catering Trailer, and so on. The brand we have FOTON, ISUZU, JMC, JAC,FAW, JAC, DONGFENG and so on with lower price and high quality.

Sale points of  refrigerator truck
1).high quality
2).low price
3).best configuration
4).low fuel consumption

5).excellent performance

6).high speed

7).heavy load capacity

8).advanced skills

Our Other Refrigerated Trucks,Freezer Truck,Reefer Box Van Truck



MODEL			ZZT5041XLC
CHASSIS	ID NO.		NKR77LLEACJAY/1214024
	category		2
	manufacturer		Qingling Motors (GROUP).Co.,Ltd
	axle		2
	wheel base(mm)		3360
	wheel track(front/rear mm)		1504/1425
	tire size		7.50-15,7.50R15,7.00-15,7.00-16
	tire		6
ENGINE	model		4KH1-TC
	manufacturer		Qingling Motors (GROUP).Co.,Ltd
	delivery capacity(ml)		2999
	fuel		diesel
	rated power(Kw)		96
	emission standard		GB17691-2005( EURO3)
FRAME	FRONT	type	steel plate spring
		quantity	8
	BACK	type	steel plate spring
		quantity	6+5
CAR LOAD	dimension parameters	overall dimensions(mm)	5995*1880/1930*2850
		L*W*H
		interior cargo body dimensions(mm)	4100*1710*1730
		L*W*H
		cubage(m3)	12.12
		front overhang/rear overhang(mm)	1015/1620
	quality parameters	approach angle/departure angle(°)	24/16
		curb weight(Kg)	2815
		rated payload(Kg)	1545
		gross vehicle weight(Kg)	4490
	max. speed(km/h)		100
	Persons in cab (persons)		2

Main Products

We manufacture: Refrigerated Truck( refrigerator van), Insulated Truck (Isolated Truck,Isolated Van, Insulated Van), Dry Cargo Truck (Cargo Van, Box Truck), Light Truck, Explosion-proof Truck, Dump Truck, Store-stake Truck, Truck Crane, Medical Wast Vehicle Truck, Wing Opening Truck, Catering Truck, Mobile Stage Truck, Mobile Shop, Box Trailer, Catering Trailer, Truck body (Van Body), Refrigerated Truck Body, Insulated Truck Body, Trailer, Semi-trailer, any other special purpose vehicles and vehicle bodies ect.



Truck Body:
Truck body, Truck van body, Truck box, CKD Trucks body panel, Cargo box, Van body, Meat Transport truck body, Cargo body, Van box

We manufacture truck bodies as your request, material can be: FRP, Aluminium, Color coated steel, ect. The bodies of trucks are the most popular sandwich type, which can be more strong and beautiful.
