Specifications

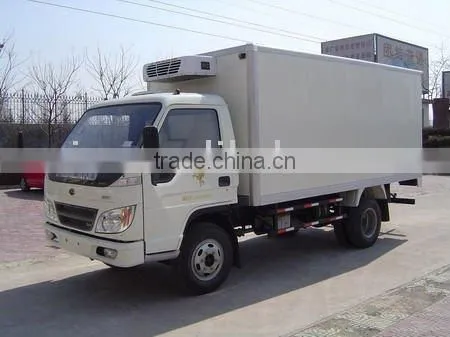

Ice-bunker refrigeration box van1)low fuel consumption
2).High safety design
3).Temperature:-18-20
4).Better insulation
1.The advantage of refrigerator truck ZZT5040XLC
1).Cooling effect
2).Energy saving
3).Driving Comfort
4).High safety design
5).capacity:1 tons-3 tons
6).temperature:-18-20
7). High efficient and comfortable ergonomic space
8).Technical equipment leading in market
Ice-bunker refrigeration box van
1)low fuel consumption
2).High safety design
3).Temperature:-18-20
4).Better insulation
------------------------------------------------------------------------------------------------------------------------------2.The Specifications of Refrigerator freezer Trucks ZZT 5040XLC
Model
5040XLC1
CHASSIS
Model and ID NO.
QL10408HWRY
Manufacturer
ISUZU Automoble Co., LTD
Axle
2
Wheelbase(mm)
3360mm
Wheel Track(Front/Rear mm)
1835mm/2590mm
Tyre Size
7.00-15,7.00R15,7.00-16,7.00R16
Tyre
6
ENGINE
Model
4JB1-TC1
Manufacturer
ISUZU Engine Co., LTD
Delivery Capacity(ml)
2771
Fuel
Disel
Rated Power(Kw)
70
Emission Standard
GB17691-2005(III),GB3847-2005
FRAME
Front
Type
Steel Plate Spring
Quantity
8
Rear
Type
Steel Plate Spring
Quantity
6+5
CAR LOAD
Dimension Parameters
Overall Dimensions(mm)
5995*1940*2780
L*W*H
Interior Cargo Body Dimentions(mm)
3156*1756*1626
L*W*H
Cubage(m3)
8m³
Front Overhang/Rear Overhang(mm)
1015/1620
Quality Parameters
Approch Angle/Departure Angle(°)
24/16
Curb Weight(Kg)
2760kg
Rated Payload(Kg)
1340kg
Gross Vehicle Weight(Kg)
4425kg
Max. Speed(km/h)
95
Person In Cab(Persons)
----------------------------------------------------------------------------
3.Sale points of Foton refrigerator truck
1).high quality
2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
6).high speed
7).heavy load capacity
8).advanced skills
REEFER TRUCK BODY,reefer cargo truck body, frige truck body, reefer truck container, reefer truck box, reefer truck body panels
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc.
Refrigerated truck body, Refrigerated truck body panels, CKD REFRIGERATED TRUCK BODY PANEL, Freezer truck body, van
---
