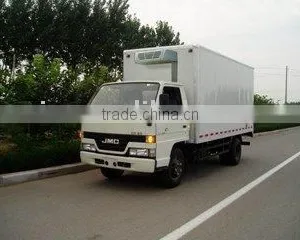

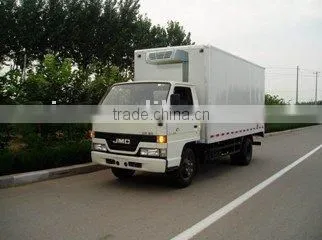

Help CenterJMC Freezer Food Transport GRP Refrigerated Box Truck
Related Products
Specifications
1).JMC Freezer food transport GRP Refrigerated box Truck2).Capcity 1.5 ton-3ton
3).Cooling effect Temperature:-18-20
1.The advantage of JMC Freezer food transport GRP Refrigerated box Truckfreezer food refrigerator truck ZZT5046XLC
1).Cooling effect,PU insulated Material, Fiber-glass Reinforced Plastic
2).Energy saving
3).Driving Comfort
4).High safety design
5).capacity:8 tons-10 tons
6).temperature:-18-20
7). High efficient and comfortable ergonomic space
8).Technical equipment leading in market
2.The Specifications of Refrigerator freezer Trucks ZZT 5046XLC
Model
ZZT5046XLC
CHASSIS
Model and ID NO.
JX1040TGA23/1224471
Manufacturer
JMC Automobile Co., LTD
Axle
2
Wheelbase(mm)
3360
Wheel Track(Front/Rear mm)
1385/1425
Tyre Size
7.00R16LT
Tyre
6
ENGINE
Model
JX493ZLQ3
Manufacturer
JMC Automobile Co., LTD
Delivery Capacity(ml)
2771
Fuel
Disel
Rated Power(Kw)
85
Emission Standard
GB17691-2005,GB3847-2005
FRAME
Front
Type
Steel Plate Spring
Quantity
7
Rear
Type
Steel Plate Spring
Quantity
4+5
CAR LOAD
Dimension Parameters
Overall Dimensions(mm)
5990*1970/1920*2890
L*W*H
Interior Cargo Body Dimentions(mm)
4150*1740*1750
L*W*H
Cubage(m3)
12.6m³
Front Overhang/Rear Overhang(mm)
1015/1615
Quality Parameters
Approch Angle/Departure Angle(°)
27/18.5
Curb Weight(Kg)
2680
Rated Payload(Kg)
1490
Gross Vehicle Weight(Kg)
4300
Max. Speed(km/h)
100
Person In Cab(Persons)
3
3.Sale points of Foton refrigerator truck
1).high quality
2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
6).high speed
7).heavy load capacity
8).advanced skills
4. Our company main products:
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc.
Refrigerated truck body, Refrigerated truck body panels, CKD REFRIGERATED TRUCK BODY PANEL, Freezer truck body, van,Refrigerated truck body, refrigerated truck body panel, CKD refrigerated truck body, FRP refrigerated truck body, truck body
Truck body, FRP truck body, FRP refrigerated truck body, FRP Cargo box, FRP truck box, FRP insulated truck body, reefer van body,
reefer truck body, Truck body panels, CKD truck body, Freezer truck body, isolation truck body, Isolated cargo box, truck box, truck van body, Van truck body, cargo van body, meat transport truck body, truck cold box, truck cool box, REFRIGERATED TRUCK BODY ckd
