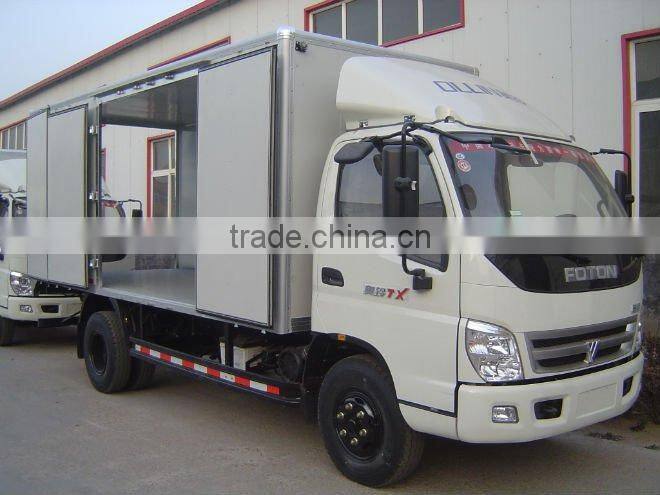

Cold food transport refrigerated box truck1). foton chassis 4*2 ,gasline
2).temperature:-18-20
3). refrigerated box truck
1.The advantage of Cold food transport refrigerated box truck
refrigerator truck ZZT5021XLC
1).Cooling effect
2).Energy saving
3).Driving Comfort
4).FOTON 4*2 chassis
5).capacity:0.5-1.5tons
6).temperature:-18-20
7).Better insulation, quickly loading/unloading
8).The wall of the container are made of FRP.
9). ISO9001-2000
2.The Specifications of Refrigerator freezer Trucks ZZT 5021XLC
| MODEL | ZZT5021XLC | ||
| CHASSIS | ID NO. | BJ1020V3JV2-S11228785 | |
| category | |||
| manufacturer | Beijing FOTON Automobile Co.,ltd | ||
| axle | 2 | ||
| wheel basemm) | 2370 | ||
| wheel track(front/rear mm) | 12601260 | ||
| tire size | 165R13,175R13 | ||
| tire | 4 | ||
| ENGINE | model | LJ465Q3-1AE1 | |
| manufacturer | Liuzhou Wuling Motor Co.,ltd | ||
| delivery capacity(ml) | 1051 | ||
| fuel | gasline | ||
| rated power(Kw) | 38.5 | ||
| emission standard | GB18352.3-2005( EURO) | ||
| FRAME | FRONT | type | steel plate spring |
| quantity | 5 | ||
| BACK | type | steel plate spring | |
| quantity | 4 | ||
| CAR LOAD | dimension parameters | overall dimensions(mm) | 4180*1505*2280 |
| L*W*H | |||
| interior cargo body dimensions(mm) | 2590*1355*1350 | ||
| L*W*H | |||
| cubage(m3) | 4.7 | ||
| front overhang/rear overhang(mm) | 795/1015 | ||
| quality parameters | approach angle/departure angle(°) | 28/28 | |
| curb weight(Kg) | 1260 | ||
| rated payload(Kg) | 500 | ||
| gross vehicle weight(Kg) | 1890 | ||
| max. speed(km/h) | 85 | ||
| Persons in cab (persons) | 2 | ||
We are a leading special purpose vehicle manufacturer from China, we manufacturer: Refrigerated truck (Refrigerarted van), Insulated truck( Isolated truck, Isolated van, Insulated van), Dry cargo truck( cargo van, box truck), Light truck, Explosion-proof truck, Tank truck, Dump truck, Store-stake truck, Truck crane, Medical waste transport truck, Wing opening truck, Catering truck, Mobile stage truck, Mobile shop, Box trailer, Catering trailer, Truck body( van body), Refrigerated truck body, Insulated truck body, Trailers, Semi- trailers, Any other special purpose vehicle and vehicle bodies, etc.
