US$ 8,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ISUZU
Model:
ZZT5040XLC
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Refrigerated FRP Truck BodyUS$ 1,000 - 5,000MOQ: 1 Unit -
Freezer Truck Box BodyUS$ 500 - 1,500MOQ: 1 Unit
-
Foton Refrigerated Box TruckUS$ 2,000 - 8,888MOQ: 1 Set
-
Refrigerator Truck for Meat / Milk/ Fish /frozen ChickenUS$ 2,000 - 8,888MOQ: 1 Set
-
Refrigerated Truck Body/ Insulated Box/Ckd Reefer PanelUS$ 2,000 - 888,888MOQ: 1 Unit
Brand Name
ISUZU
Model
ZZT5040XLC
Place of Origin
China
Transmission Type
Manual
Condition
New
Emission Standard
Euro 3
Fuel Type
Diesel
Dimensions (L x W x H) (mm)
4060*1910*1800
Box Dimensions (L x W x H) (mm)
5995*2100\2150*2980
Temperature Range
-18-20
Gross Vehicle Weight
4400
Specifications

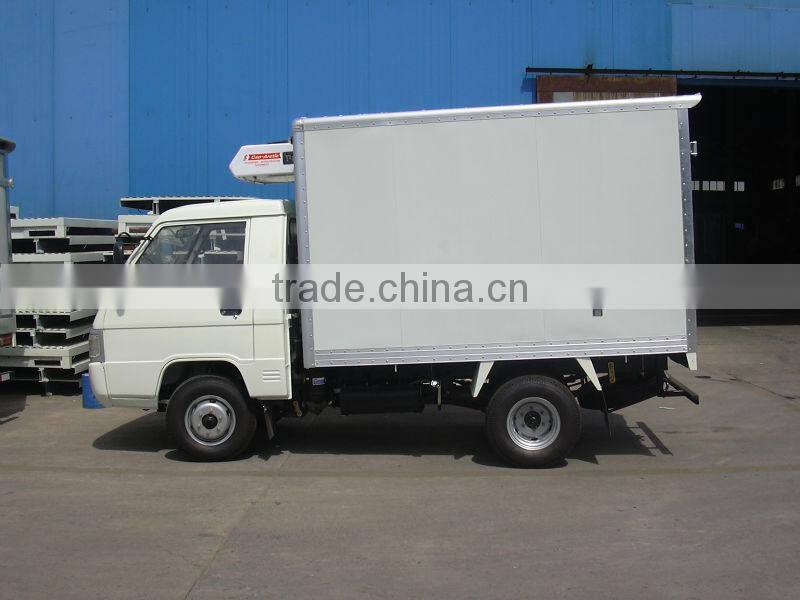

Reefer Cold Food Box Truck1).Temperature:-18-20
2).High safety design
3).Cooling effect cold van
4).Better insulation
1.The advantage of Reefer Cold Food Box Truck
1).Cooling effect
2).Energy saving
3).Driving Comfort
4).High safety design
5).capacity:1 tons-3 tons
6).temperature:-18-20
7). High efficient and comfortable ergonomic space
8).Technical equipment leading in market
---------------------------------------------------------------------------------------------------------------------------
2.The Specifications of Refrigerator freezer Trucks ZZT 5040XLC
| Model | 5040XLC1 | ||
| CHASSIS | Model and ID NO. | QL10408HWRY | |
| Manufacturer | ISUZU Automoble Co., LTD | ||
| Axle | 2 | ||
| Wheelbase(mm) | 3360mm | ||
| Wheel Track(Front/Rear mm) | 1835mm/2590mm | ||
| Tyre Size | 7.00-15,7.00R15,7.00-16,7.00R16 | ||
| Tyre | 6 | ||
| ENGINE | Model | 4JB1-TC1 | |
| Manufacturer | ISUZU Engine Co., LTD | ||
| Delivery Capacity(ml) | 2771 | ||
| Fuel | Disel | ||
| Rated Power(Kw) | 70 | ||
| Emission Standard | GB17691-2005(III),GB3847-2005 | ||
| FRAME | Front | Type | Steel Plate Spring |
| Quantity | 8 | ||
| Rear | Type | Steel Plate Spring | |
| Quantity | 6+5 | ||
| CAR LOAD | Dimension Parameters | Overall Dimensions(mm) | 5995*1940*2780 |
| L*W*H | |||
| Interior Cargo Body Dimentions(mm) | 3156*1756*1626 | ||
| L*W*H | |||
| Cubage(m3) | 8m³ | ||
| Front Overhang/Rear Overhang(mm) | 1015/1620 | ||
| Quality Parameters | Approch Angle/Departure Angle(°) | 24/16 | |
| Curb Weight(Kg) | 2760kg | ||
| Rated Payload(Kg) | 1340kg | ||
| Gross Vehicle Weight(Kg) | 4425kg | ||
| Max. Speed(km/h) | 95 | ||
| Person In Cab(Persons) | |||
---------------------------------------------------------------------------------------------------------------------------
3.Sale points of Foton refrigerator truck
1).high quality
2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
6).high speed
7).heavy load capacity
8).advanced
