Specifications
1.foton box truck2.capacity:3 tons-5 tons box truck
3.temperature:-18-20 box truck
4. refrigerated box truck
5.box truck

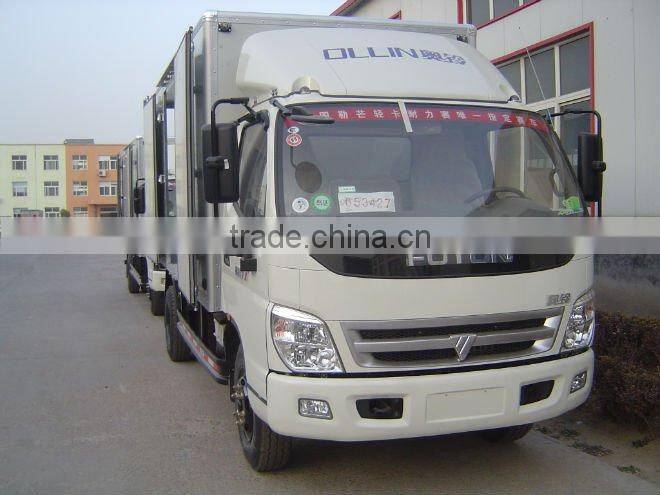

1.The advantage of foton refrigerator box truck ZZT5041XLC
1).Cooling effect, box truck
2).Energy saving
3).Driving Comfort
4).4KH1-TC engine
5).capacity:3 tons-5 tons
6).temperature:-18-20
--------------------------------------------------------------------------------------------------------------------------------
2.The Specifications of Refrigerator freezer Trucks ZZT 5041XLC
| MODEL | ZZT5041XLC | ||
| CHASSIS | ID NO. | NKR77LLEACJAY/1214024 | |
| category | |||
| manufacturer | Qingling Motors (GROUP).Co.,Ltd | ||
| axle | 2 | ||
| wheel basemm) | 3360 | ||
| wheel track(front/rear mm) | 1504/1425 | ||
| tire size | 7.50-15,7.50R15,7.00-15,7.00-16 | ||
| tire | 6 | ||
| ENGINE | model | 4KH1-TC | |
| manufacturer | Qingling Motors (GROUP).Co.,Ltd | ||
| delivery capacity(ml) | 2999 | ||
| fuel | diesel | ||
| rated power(Kw) | 96 | ||
| emission standard | GB17691-2005( EURO) | ||
| FRAME | FRONT | type | steel plate spring |
| quantity | 8 | ||
| BACK | type | steel plate spring | |
| quantity | 6+5 | ||
| CAR LOAD | dimension parameters | overall dimensions(mm) | 5995*1880/1930*2850 |
| L*W*H | |||
| interior cargo body dimensions(mm) | 4100*1710*1730 | ||
| L*W*H | |||
| cubage(m3) | 12.12 | ||
| front overhang/rear overhang(mm) | 1015/1620 | ||
| quality parameters | approach angle/departure angle(°) | 24/16 | |
| curb weight(Kg) | 2815 | ||
| rated payload(Kg) | 1545 | ||
| gross vehicle weight(Kg) | 4490 | ||
| max. speed(km/h) | 100 | ||
| Persons in cab (persons) | 2 | ||
--------------------------------------------------------------------------------------------------------------------------------
We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc.
, Refrigerated truck body, Refrigerated truck body panels, CKD REFRIGERATED TRUCK BODY PANEL, Freezer truck body, van
Refrigerated truck body, refrigerated truck body panel, CKD refrigerated truck body, FRP refrigerated truck body, truck body
Truck body, FRP truck body, FRP refrigerated truck body, FRP Cargo box, FRP truck box, FRP insulated truck body, reefer van body,
reefer truck body, Truck body panels, CKD truck body, Freezer truck body, isolation truck body, Isolated cargo box, truck box, truck van body, Van truck body, cargo van body, meat transport truck body, truck cold box, truck cool box, REFRIGERATED TRUCK BODY ckd
