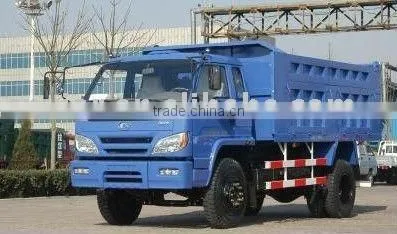

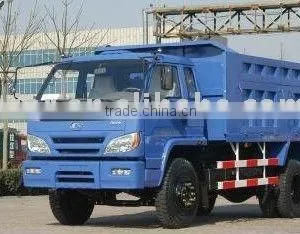

Foton Forland 4x2 Light Dump Trucks Tipper

Name: Foton Forland 4x2 Light Dump Trucks Tipper
Brand: FOTON
SKU: 141207766
Availability: InStock

Shandong Zhengtai Xier Special Purpose Vehicle Co., Ltd.

US$ 3,000 - 15,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

8x4

Capacity (Load):

11 - 20t

Horsepower:

150 - 250hp

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 8x4

Capacity (Load) 11 - 20t

Horsepower 150 - 250hp

Condition New

Transmission Type Automatic

Emission Standard Euro 2

Fuel Type Diesel

Engine Capacity 4 - 6L

Gross Vehicle Weight 17000

Place of Origin Shandong, China

Brand Name FOTON

Model Number 3P90P4108Z

Dimensions (L x W x H) (mm) 6000x2300x2770

Specifications

Foton Forland 4x2 Light Dump Trucks Tipper Lorries608
Drive Type:4x2
Capacity:10ton
Displacement:4-6L
Power:122hp

Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	6000x2300x2770
	Inner dimensions of the cargo body (LxWxH)mm	3700x2160x1000/4x3
	Driving type	4x2
	Wheel base(mm)	3400
	Wheel track (front/rear)(mm)	1740/1665
Weight data	Curb weight(kg)	5700
	Rated payload(kg)	11500
	Max payload(kg)	16000
	Persons in cab(persons)	3
	Gross vehicle weight(kg)	17395
Whole vehicle main performance	Max. speed(km/h)	≥75
	Max. slope of climb(%)	≥30
Engine	Model	YC4D120-21
	engine type	4-cylinders,In-line, water-cooling, 4-stroke, vertical type, turbocharged
	Displacement(L)	4.214
	Rated Power(kw)	90(122HP)
Gearbox	Model	17D48F1
	Speed ratio	High gear:1:7.312;2:4.311;3:2.447;4:1.535;5:1.000;R:7.660 Low gear:1:12.825;2:7.561;3:4.292;4:2.692;5:1.754;R:13.43
Clutch	Type	Diaphragm clutch,
Rear axle	Type/Main reducer ratio	1098-X/6.33
Steering gear		Recirculating ball type, hydraulic boost steering
Brake system	Service brake	Pneumatic braking system
	Parking brake	Air Cut Valve
	Auxiliary brake	Exhaust braking
Tyre size		9.00-20
Jack Type		Engineering project
Electric device	Rated voltage	24V
