Help Center25 Ton Foton 6*4 Dump Truck
US$ 3,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
41 - 50t
Horsepower:
251 - 350hp
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Drive Wheel
6x4
Capacity (Load)
41 - 50t
Horsepower
251 - 350hp
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Gross Vehicle Weight
37000
Place of Origin
Shandong, China
Brand Name
FOTON
Model Number
ROWOR
Dimensions (L x W x H) (mm)
5600*2300*1100
Specifications

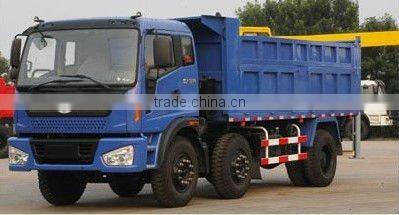

25 ton Foton 6*4 dump truck1.A leading enterprise with high integrity.
2.We combine high performance with safety.
3.blue
1.The specifications of FOTON Dump Truck Foton 6*4 dump truck
| Production line | RoworY 140 | RoworY 140 | RoworY 210 | |
| Vehicle model | 2P21P4110L(Y1) | 2P21P4110S(Y) | 2P22P6110L(Y) | |
| Vehicle number | 3163DKPFG-00Z002 | 3163DKPFG-00Z003 | 3168DJPHE-0SZ002 | |
| Cabin model | King row,tiltable/F2000A | King row,tiltable/F2000A | King row,tiltable/F2200 | |
| Emission Standard | Euro 2 | Euro 3 | Euro 2 | |
| Whole vehicle main dimensions | Overall dimensions (L×W×H)(mm) | 8904X2430X2728 | 8904X2430X2728 | 9770×2486×2940 |
| Inner dimensions of the cargo body (L×W×H)(mm) | 6500×2300×800 | 6500×2300×800 | 7300×2300×550 | |
| Driving type | 4×2 | 4×2 | 6×2 | |
| Wheel base (mm) | 5000 | 5000 | 1800+4200 | |
| Wheel track (front/rear)(mm) | 1830/1864 | 1830/1864 | 1916/1851 | |
| Weight data | Curb weight(kg) | 6100 | 6100 | 9400 |
| Rated payload(kg) | 20000 | 20000 | 22400 | |
| Max payload(kg) | 25000 | 25000 | 28000 | |
| Gross vehicle weight (kg) | 26295 | 26295 | 31995 | |
| seating capacity | 3 | 3 | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 75 | 75 | 75 |
| Max. slope of climb(%) | ≥25 | ≥25 | ≥25 | |
| min.turning Radius(m) | ≤12 | ≤12 | ≤14 | |
| Fule consumption(L/100km)(For reference only) | ||||
| engine | Model | CA4DF2-13 | YC4E140-30 | CA6DF2D-21 |
| type | Four-cylinder, in-line,water cooling,direct injection(DI) type,turbocharged,intercooling | Four-cylinder, in-line,water cooling,direct injection(DI) type,turbocharged,intercooling, electronically fuel injection | Six-cylinder, in-line,water cooling,direct injection(DI) type,turbocharged,intercooling | |
| Displacement(L) | 4.752 | 4.26 | 6.557 | |
| Rated Power(kw/rpm) | 96/2500 | 105/2500 | 143/2300 | |
| Gearbox | Modle | 17D55F | 17C70F | 17D100 |
| Speed ratio | ||||
| Rear axle | Model/Main reduction ratio | 1153/6.167 | 457/6.33 | STR16ZS/5.73 |
| Suspension | Spring steel sheet, shock absorber | Spring steel sheet, shock absorber | Spring steel sheet, shock absorber | |
| Steering gear | Type/booster type | Mechanical recirculating ball | Mechanical recirculating ball | Mechanical recirculating ball |
| Brake system | Service brake | Dual circuits pneumatic brake | Dual circuits pneumatic brake | Dual circuits pneumatic brake |
| Parking brake | Air Cut Valve | Air Cut Valve | Air Cut Valve | |
| Auxiliary brake | exhaust brake | exhaust brake | exhaust brake | |
| Fuel tank (L) | 120 | 200 | 270 | |
| Lifting jack type | For Engineering(3 jacks ) | For Engineering(3 jacks ) | For Engineering(3 jacks ) | |
| Wheels and tyre size | 6+1/9.00-20 | 6+1/9.00-20 | 8+1/10.00-20 | |
| Rated voltage | 24V | 24V | 24V | |
| Functional Configuratio | ||||
| Heater | √ | √ | √ | |
| Adjustable Steering Wheel | √ | √ | √ | |
| Power Steering | √ | √ | √ | |
| Exhaust Brake | √ | √ | √ | |
| Pre-heating | √ | √ | √ | |
| Air Deflector | × | × | × | |
| A/C | × | × | × | |
| Clutch Booster | √ | √ | √ | |
| Electric control Flame-out | √ | × | √ | |
| Air Cut Valve | √ | √ | √ | |
| √ : Standard Equipment : Optional :Under develop ×: Not develop | ||||
