Trailer Diners&
Mobile Food Cart trailer

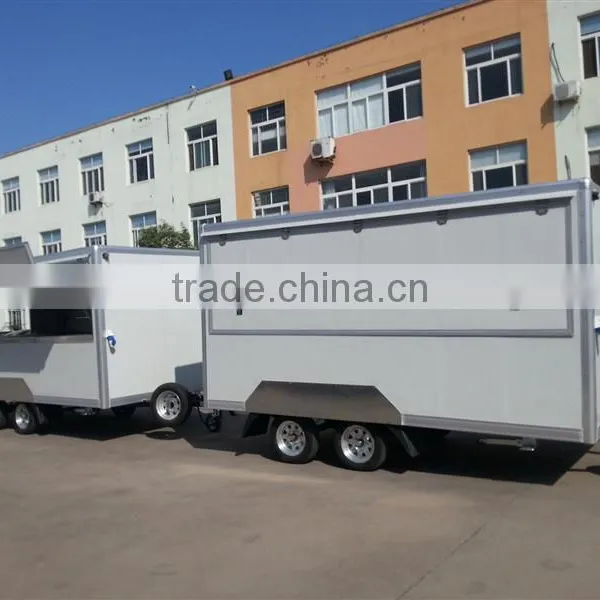

Adopting uniaxial trailer structure, inside dimension is 4000*2000*2000mm, outside material is glass fibre reinforced plastic and inside is stainless steel plate. Both sides of the box can be designed with tilt-up door structure. Separate compartment can place gas stoves and garbage can.
Inside equipment has gas-cooker, pool, refrigerator, induction cooker, boiler, and water tank etc, Using external power to supply electricity
Production Specifications
1. Chassis
Ø Single 5,500 lbs wheel axle assembly with electric braking mechanism with a heavy duty pintle hook and eye towing hitch and wheel mounted in wheels wells under chassis (Jack, wheel spanner and spare wheel included)
2. Body
Ø Booth size:l*w*h 400cm*200cm*200cm or 250cm*200cm*200cm or other size
Ø off-white, pre-painted galvanized facing internally and externally
Ø 2 think Polystyrene foam insulation throughout walls and roof

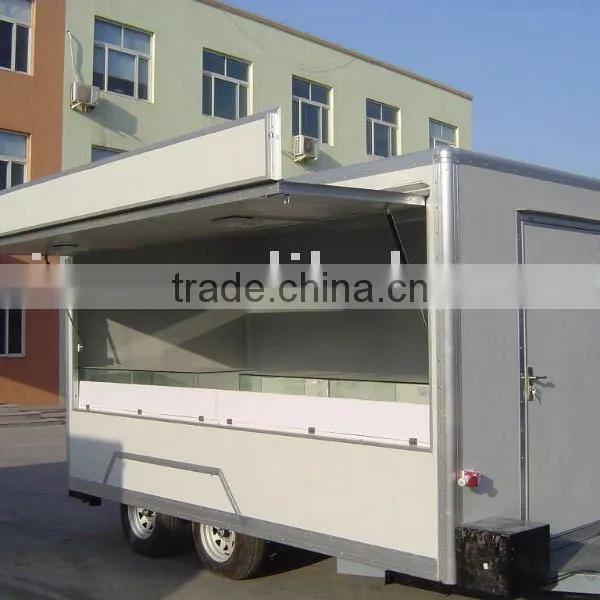

Ø One (1) flap opening lift up canopy above on the lift side with locking mechanism
Ø Checkered aluminum flooring
Ø Single rear two (2) section door with steel framing and stainless steel fasteners
Ø Key type locking mechanism and stainless steel fasteners with double seal door gaskets
Ø Aluminum curved corners externally
Ø Aluminum rub rails externally
Ø Tool box outfitted on the exterior of the booths tow side.
3. Electrical Supply and requirements
Ø 60 Amp electrical panel with isolator switch, two-lights, fan
Ø External provision for lights
Ø Rear tail light assembly system included with front and rear reflectors
4. Internal Components(stainless steel)
Ø Cupboard unit
Ø Drawer 1 unit
Ø Cooking unit
Ø Exhaust hood
Ø Drawer 2 Unit
5. Water Storage Tanks Options
Ø 45 gallons fresh water stainless steel tank
Ø The waste water storage tank (50 Gallons)
Ø The Above tanks to be supplied in food grade plastic
6. Price : fob Qingdao port,china usd /unit(include1,2and 3)
fob Qingdao port,china usd /unit(include1,2,3,4,5)
Payment is 50%T/T advance as
7. other :if you need refrigerator,and cooking equipment,
- Refrigerator 1unit
- electric deep-fat fryer 1unit
- electric pan 1 unit
- Gas cooker 1 unit
- Hot dog machine 1unit
- Hamburger machine 1unit
- Water heaters 1unit
- electric Heating Canteen I unit total 4 pc
need add price.
Catering trailer Mobile Kitchen truck trailer fast food trailer Catering trailer Mobile Kitchen
Detailed Product Description
Main contents: it is modified in Qing Ling type chassis, main process closed-end panel body (including chassis );cooking truck
Main Technical Parameter
Product Description
Product Features: The truck body uses military big board fabrication process, and it is comprised of outside plate (FRP) + inner plate (stainless steel) + framework + insulation sandwich (XPS), it also has the smooth appearance and adiabatic performance; One side board can be opened , which can satisfy cooking wing ventilation requirements.
Main contents: it is modified in Qing Ling type chassis, main process closed-end panel body (including chassis ); Some special devices can be mounted such as Kitchen stove, ice tank , cabinet etc to satisfy cooking needs.
- Rear tail light assembly system included with front and rear reflectors
- Refrigerator 1unit
- electric deep-fat fryer 1unit
- electric pan 1 unit
- Gas cooker 1 unit
- Hot dog machine 1unit
- Hamburger machine 1unit
- Water heaters 1unit
- electric Heating Canteen I unit total 4 pc
