Specifications

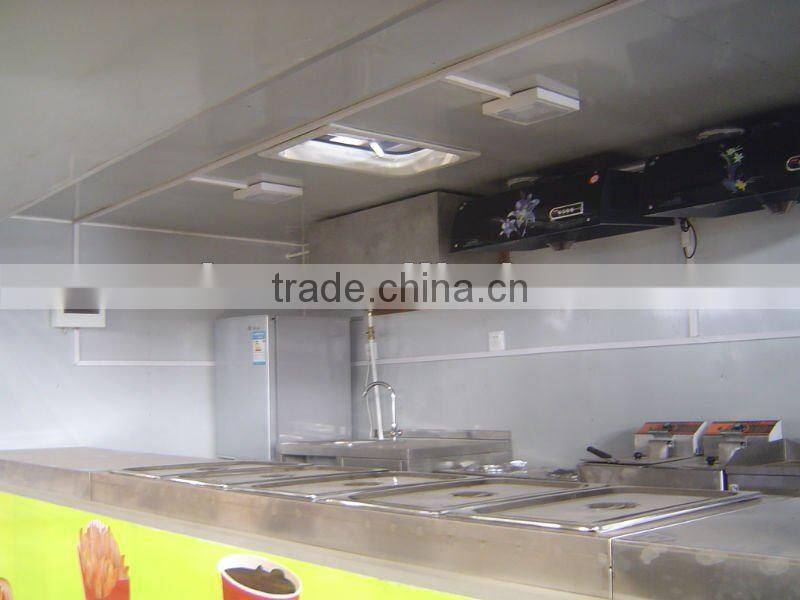

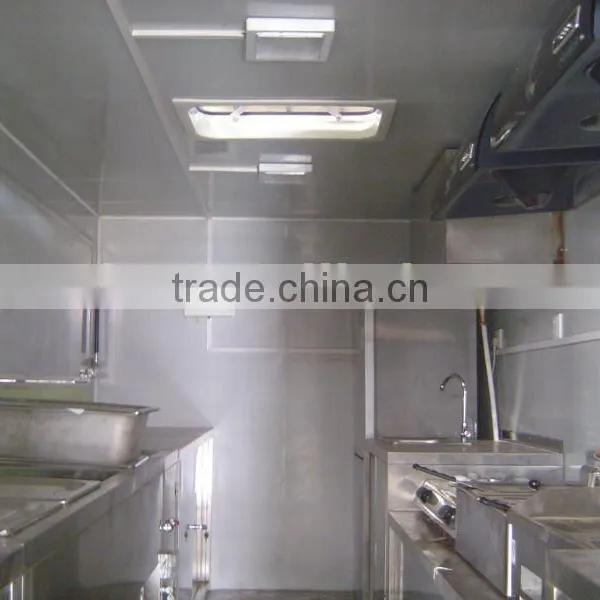

Inside equipment has gas-cooker, pool, refrigerator, induction cooker, boiler, and water tank etcAdopting uniaxial trailer structure, inside dimension is 4000*2000*2000mm, outside material is glass fibre reinforced plastic and inside is stainless steel plate. Both sides of the box can be designed with tilt-up door structure. Separate compartment can place gas stoves and garbage can.
Inside equipment has gas-cooker, pool, refrigerator, induction cooker, boiler, and water tank etc, Using external power to supply electricity
Mobile Food Vending Booth Model l
Production Specifications

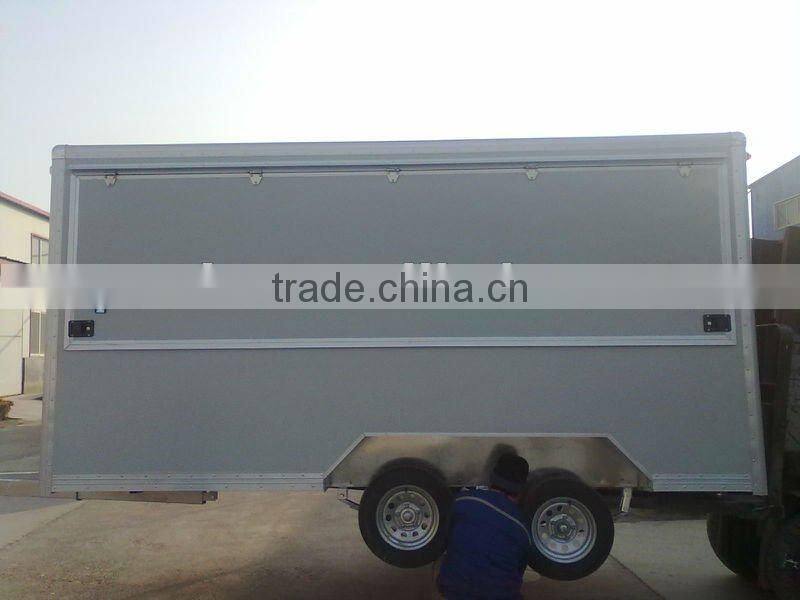

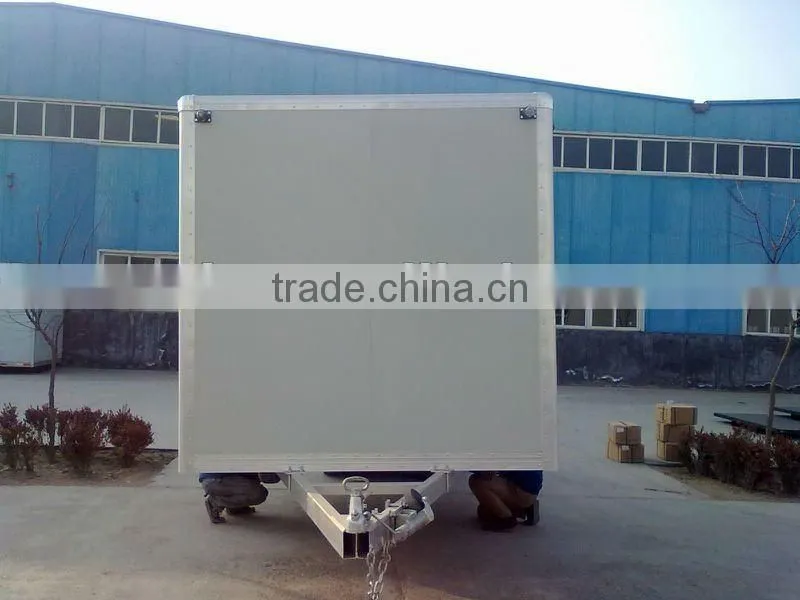

- Chassis
- Ø Single 5,500 lbs wheel axle assembly with electric braking mechanism with a heavy duty pintle hook and eye towing hitch and wheel mounted in wheels wells under chassis (Jack, wheel spanner and spare wheel included)
- Body
- Ø Booth size:l*w*h 400cm*200cm*200cm
- Ø off-white, pre-painted galvanized facing internally and externally
- Ø 4cm thickness Polystyrene foam insulation throughout walls and roof
- Ø One (1) flap opening lift up canopy above on the lift side with locking mechanism
- Ø Checkered aluminum flooring
- Ø Single rear two (2) section door with steel framing and stainless steel fasteners
- Ø Key type locking mechanism and stainless steel fasteners with double seal door gaskets
- Ø Aluminum curved corners externally
- Ø Aluminum rub rails externally
- Ø Tool box outfitted on the exterior of the booth’s tow side.
- Electrical Supply and requirements
- Ø 60 Amp electrical panel with isolator switch, two-lights, fan
- Ø External provision for lights
- Ø Rear tail light assembly system included with front and rear reflectors
- Ø Refrigerator 1unit
- Ø electric deep-fat fryer 1unit
- Ø electric pan 1 unit
- Ø Gas cooker 1 unit
- Ø Hot dog machine 1unit
- Ø Hamburger machine 1unit
- Ø Coca-Cola drink machines
- Ø electric Heating Canteen I unit total 4 pc

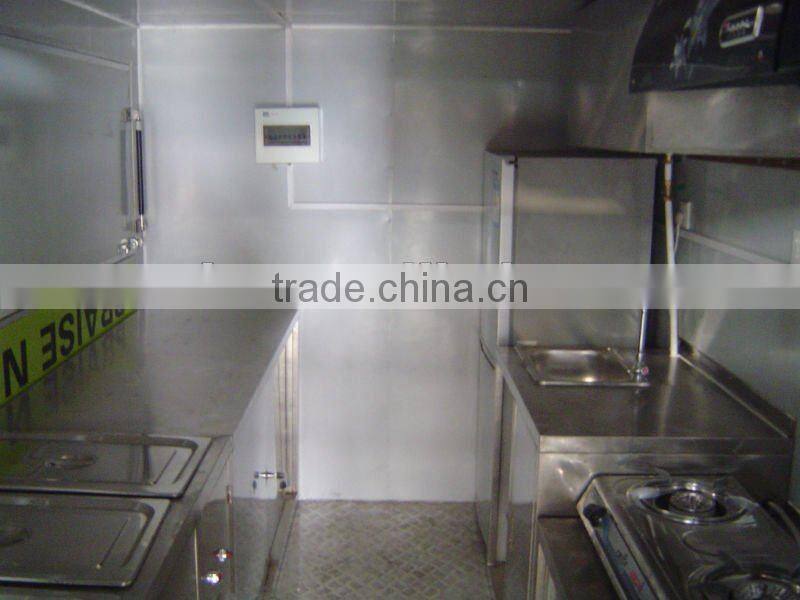

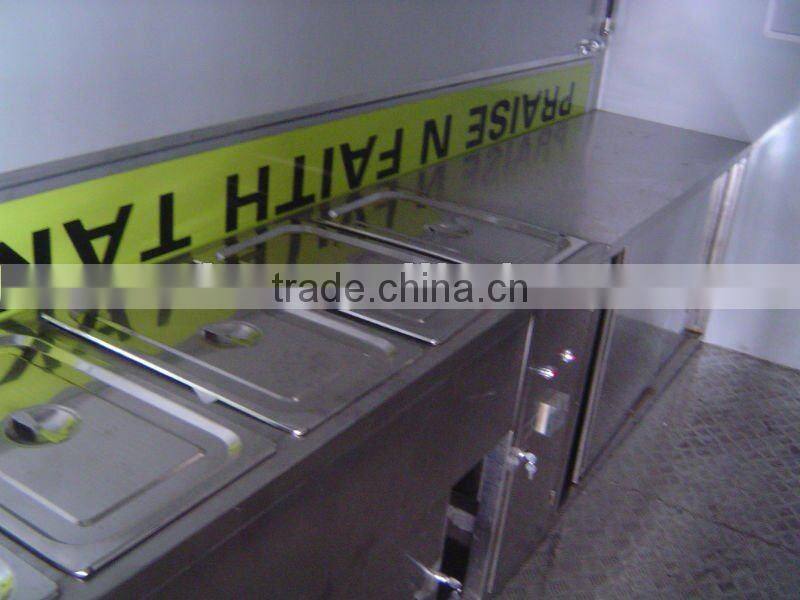

- Internal Components(stainless steel)
- Ø Cupboard unit
- Ø Drawer 1 unit
- Ø Cooking unit
- Ø Exhaust hood
- Water Storage Tanks Options
- 120kg fresh water stainless steel tank
- The waste water storage tank (140kg)
- The Above tanks to be supplied in food grade plastic
- Price :
Payment is 50%T/T advance as earnest
Ø Exhaust hood
Ø Drawer 2 Unit
5. Water Storage Tanks Options
Ø 45 gallons fresh water stainless steel tank
Ø The waste water storage tank (50 Gallons)
Ø The Above tanks to be supplied in food grade plastic
6. Price :
Payment is 50%T/T advance as
7. other :if you need refrigerator,and cooking equipment,need add price.
