Catering trailer,mobile kitchen

Specifications

Adopting uniaxial trailer structure, inside dimension is 4000*2000*2000mm, outside material is glass fibre reinforced plastic and inside is stainless steel plate. Both sides of the box can be designed with tilt-up door structure. Separate compartment can place gas stoves and garbage can.

Inside equipment has gas-cooker, pool, refrigerator, induction cooker, boiler, and water tank etc, Using external power to supply electricity

Catering trailer, food trailer, hotdog trailer, hotdog trailer products, catering trailer,food trailer,snack food trailer

Catering trailer, cartering cart, fast food trailer, mobile catering trailer, mobile shop, snack food trailer, mobile food cart

Trademaster,evensman,food trailer,catering trailer ,mobile catering kitchen trailer,snack trailer,and so on.

Production Specifications

1.     Chassis

Ø  Single 5,500 lbs wheel axle assembly with electric braking mechanism with a heavy duty pintle hook and eye towing hitch and wheel mounted in wheels wells under chassis (Jack, wheel spanner and spare wheel included)

2.     Body

Ø  Booth size:l*w*h 400cm*200cm*200cm or  250cm*200cm*200cm or other size

Ø  off-white, pre-painted galvanized facing internally and externally

Ø  2 think Polystyrene foam insulation throughout walls and roof

Ø  One (1) flap opening lift up canopy above on the lift side with locking mechanism

Ø  Checkered aluminum flooring

Ø  Single rear two (2) section door with steel framing and stainless steel fasteners

Ø  Key type locking mechanism and stainless steel fasteners with double seal door gaskets

Ø  Aluminum curved corners externally

Ø  Aluminum rub rails externally

Ø  Tool box outfitted on the exterior of the booths tow side.

3.     Electrical Supply and requirements

Ø  60 Amp electrical panel with isolator switch, two-lights, fan

Ø  External provision for lights

Ø  Rear tail light assembly system included with front and rear reflectors

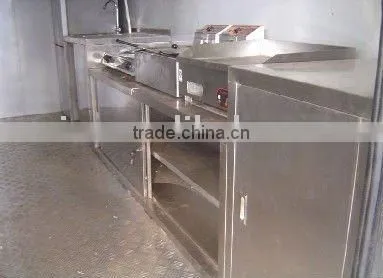

4.     Internal Components(stainless steel)

Ø  Cupboard unit

Ø  Drawer 1 unit

Ø  Cooking unit

Ø  Exhaust hood

Ø  Drawer 2 Unit

5.     Water Storage Tanks Options

Ø  45 gallons fresh water stainless steel tank

Ø  The waste water storage tank (50 Gallons)

Ø  The Above tanks  to be supplied in food grade plastic

6.     Price : fob Qingdao port,china usd  /unit(include1,2and 3)

                 fob Qingdao port,china usd   /unit(include1,2,3,4,5)

Payment is 50%T/T advance as

7.   other :if you need refrigerator,and cooking equipment,

• Refrigerator 1unit
• electric deep-fat fryer 1unit
• electric pan 1 unit
• Gas cooker 1 unit
• Hot dog machine 1unit
• Hamburger machine 1unit
• Water heaters 1unit
• electric Heating Canteen I unit total 4 pc
