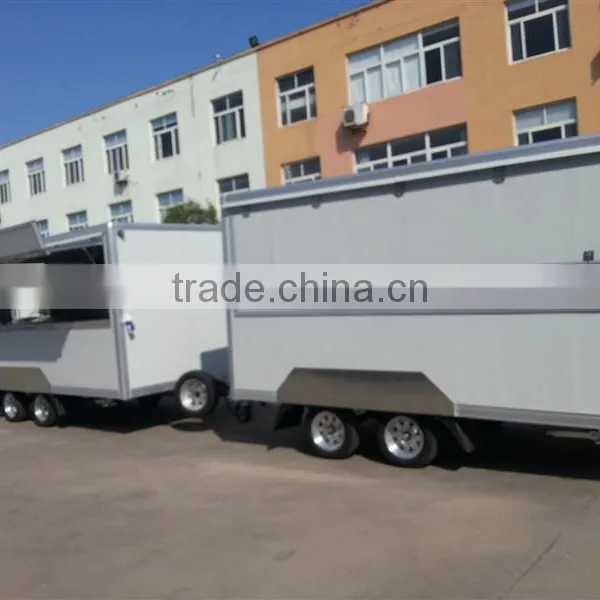

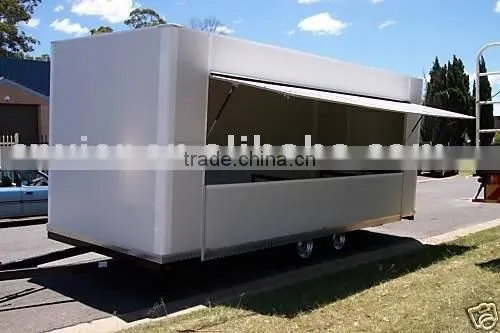

Trailer Diners
Adopting uniaxial trailer structure, inside dimension is 4000*2000*2000mm, outside material is glass fibre reinforced plastic and inside is stainless steel plate. Both sides of the box can be designed with tilt-up door structure. Separate compartment can place gas stoves and garbage can.
Inside equipment has gas-cooker, pool, refrigerator, induction cooker, boiler, and water tank etc, Using external power to supply electricity
Production Specifications

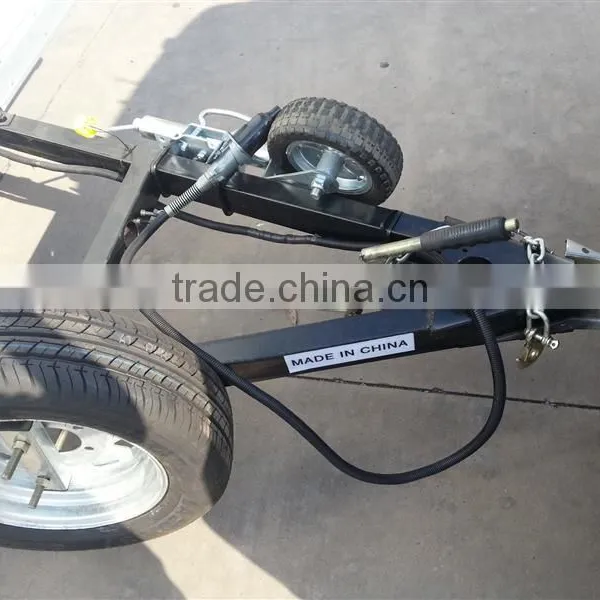

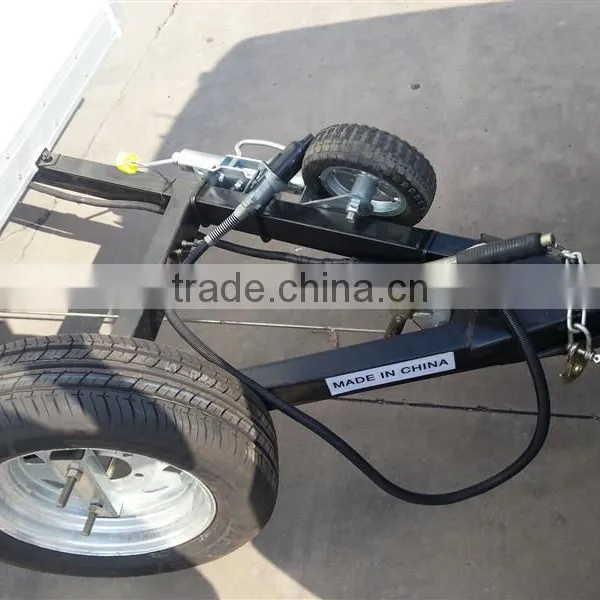

1. Chassis
Ø Single 5,500 lbs wheel axle assembly with electric braking mechanism with a heavy duty pintle hook and eye towing hitch and wheel mounted in wheels wells under chassis (Jack, wheel spanner and spare wheel included)
2. Body
Ø Booth size:l*w*h 400cm*200cm*200cm
Ø off-white, pre-painted galvanized facing internally and externally
Ø 2 think Polystyrene foam insulation throughout walls and roof
Ø One (1) flap opening lift up canopy above on the lift side with locking mechanism
Ø Checkered aluminum flooring
Ø Single rear two (2) section door with steel framing and stainless steel fasteners
Ø Key type locking mechanism and stainless steel fasteners with double seal door gaskets
Ø Aluminum curved corners externally
Ø Aluminum rub rails externally
Ø Tool box outfitted on the exterior of the booths tow side.
3. Electrical Supply and requirements

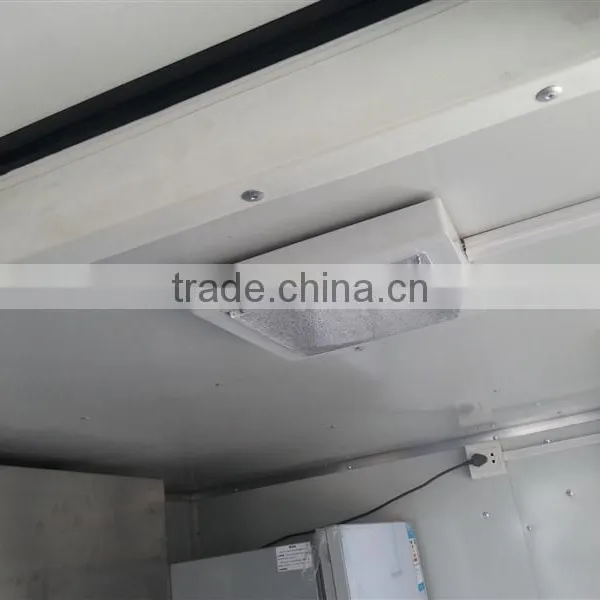

Ø 60 Amp electrical panel with isolator switch, two-lights, fan
Ø External provision for lights
Ø Rear tail light assembly system included with front and rear reflectors
4. Internal Components(stainless steel)
Ø Cupboard unit
Ø Drawer 1 unit
Ø Cooking unit
Ø Exhaust hood
Ø Drawer 2 Unit
5. Water Storage Tanks Options
Ø 45 gallons fresh water stainless steel tank
Ø The waste water storage tank (50 Gallons)
Ø The Above tanks to be supplied in food grade plastic
6. Price : fob Qingdao port,china usd 4500/unit(include1,2and 3)
fob Qingdao port,china usd 6000/unit(include1,2,3,4,5)
Payment is 50%T/T advance as
7. other :if you need refrigerator,and cooking equipment,need add price.
