china factory sitong atv log trailer
- 600 Set / Sets per Month
- tianjin
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
- Container Semi Trailers
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC, ISO9001:2008 |
Size: | 13000*2350*3980mm | Max Payload: | 70TON | Place of Origin: | Shandong, China |
Brand Name: | LUFENG | Model Number: | china factory sitong atv log trailer |
Product Description
china factory sitong atv log trailer
1)specification for china factory sitong atv log trailer
product | Log loader semi trailer |
Tare Weight | About 6.8-8.6T |
dimension | 13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension) |
Loading Capacity | ≤60T |
Axle | 13T/16T,FUWA/BPW/Huajing Brand |
Wheel Rim | 9.00-22.5 |
Tire | 12.00R22.5/315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand) |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
Suppot leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm; Material is Q345B Steel |
Side beam | 16mm or 18mm channal steel (Material is Q235steel) |
Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber |
ABS | Optional |
Twist Locks | Four,Eightor Twelve pieces(Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime, 2coats of final paint |
Shipping term | Transport by bulk cargo carrier,RORO or 40HQ container |

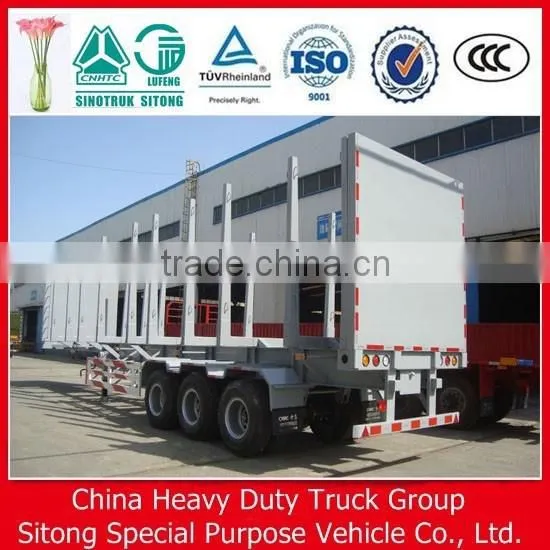

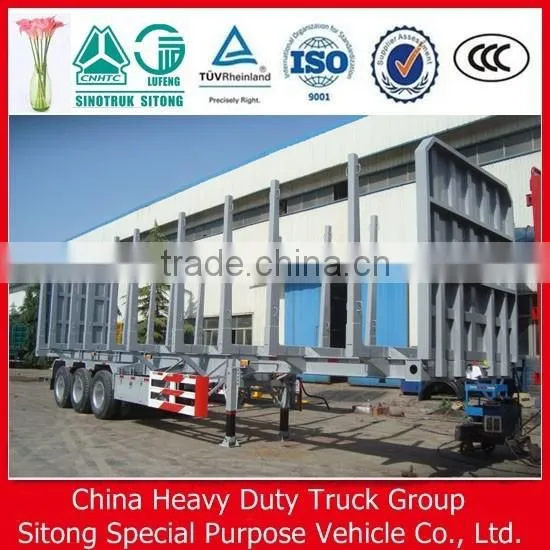

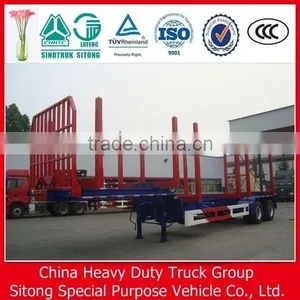

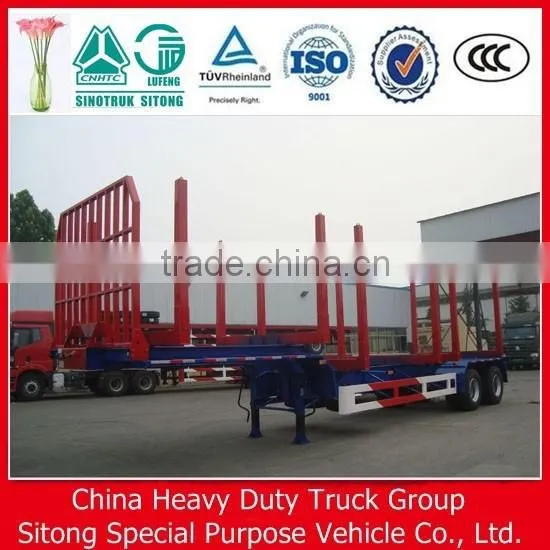

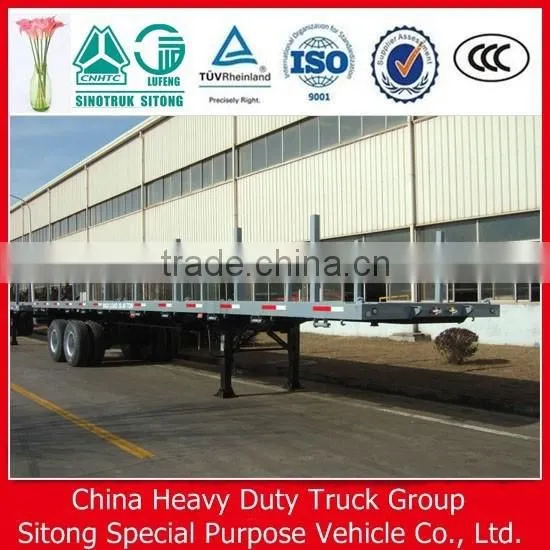

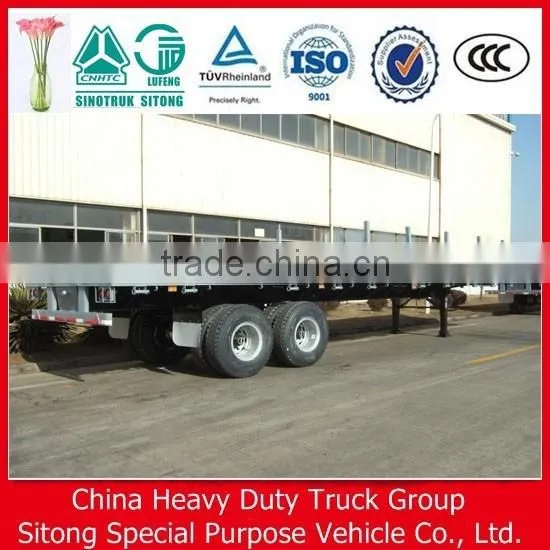

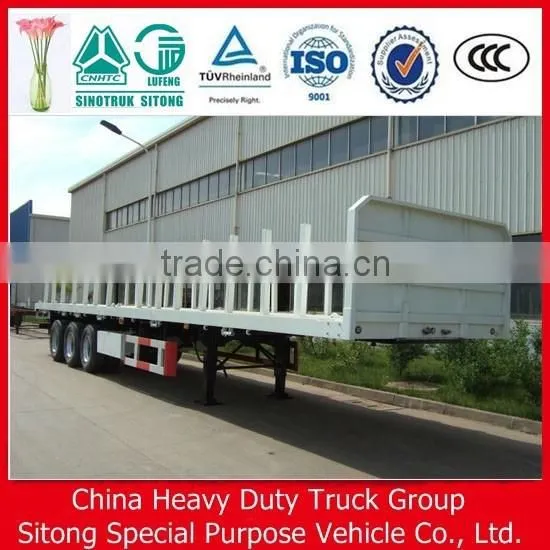

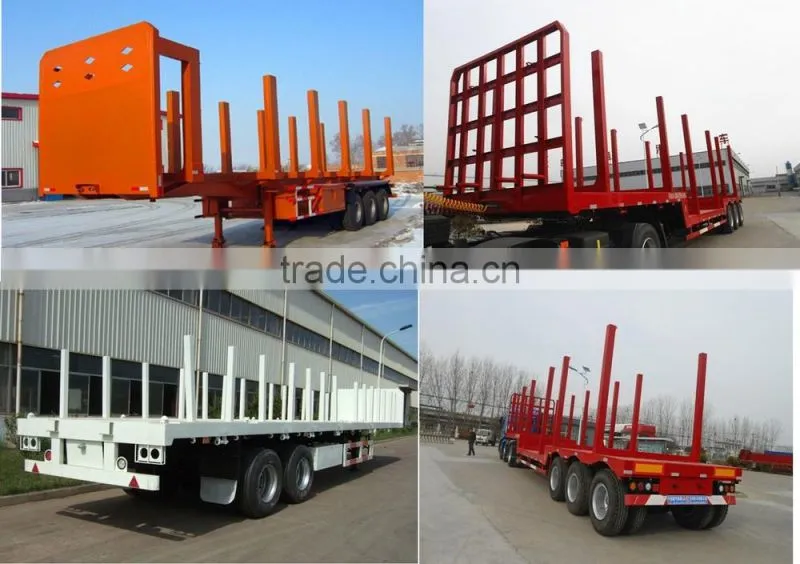

2) photo for china factory sitong atv log trailer
3) factory photo for china factory sitong atv log trailer
4) certificate for china factory sitong atv log trailer
5) other semi trailer link:
Company alibaba website:
http://lssitong.en.china.cn/productgrouplist-800488749/flat_bed_semi_trailer.html
1. Fuel/oil tank semi trailer
http://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html
2. Bulk cement tank semi trailer
http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html
3. Low bed semi trailer
http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html
4. Logging semi trailer
http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html
5. Car transport semi trailer
http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html
http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html
6. container skeleton semi trailer
http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html
7. Container flatbed semi trailer
http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html
http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html
8. Tractor full trailer
http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html
http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html
9. Side wall semi trailer
http://lssitong.en.china.cn/product/60213172210-800477896/Factory_supplier_2_axle_farm_trailer_tractor_tipper_trailer.html
http://lssitong.en.china.cn/product/60213093808-800512156/25_60ton_drop_side_farm_trailer.html
10. box semi trailer
http://www.china.cn/product-detail/hot-sale--3-axle-van_60215324293.html
11. Stake semi trailer
http://lssitong.en.china.cn/product/60212519973-800495288/hot_sale_3_axle_stake_cattle_cargo_trailer.html
12. Rear dump semi trailer
http://lssitong.en.china.cn/product/60220822234-800512155/china_hydraulic_axle_dump_semi_trailer.html
other semi truck trailer
6) contact information for china factory sitong atv log trailer
Contact Us
- China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co., Ltd.
- Contact nameTeng Li
- Phone0086-537-2882988
- Addressjinyu road Jining,Shandong
