Sitong ATV Timber Transport Semi Truck Trailer Trailer

Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-1
Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-2
Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-3
Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-4
Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-5
Sitong ATV Timber Transport Semi Truck Trailer Trailer thumbnail-6
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-1
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-2
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-3
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-4
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-5
Sitong ATV Timber Transport Semi Truck Trailer Trailer photo-6
US$ 1 - 10,000 MOQ: 3 Sets
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, CCC, ISO9001:2008
Contact Supplier Request Quote Chat Now
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Semi-Trailer
Material Steel
Certification Other, CCC, ISO9001:2008
Size 13000*2350*3980mm
OEM No. 73847328472
Max Payload 70TON
Place of Origin Shandong, China
Brand Name LUFENG
Model Number 20~70ton timber transport semi truck trailer trailer

    sitong ATV timber transport semi truck trailer trailer

1)specification for sitong ATV timber transport semi truck trailer trailer



product

Log loader semi trailer

Tare Weight

About 6.8-8.6T

dimension

13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension)

Loading Capacity

≤60T

Axle

13T/16T,FUWA/BPW/Huajing Brand

Wheel Rim

9.00-22.5

Tire

12.00R22.5/315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW Brand)

Spring leaf

90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12

King pin

Jost brand 2.0 0r 3.5 inch bolts type or welding type

Suppot leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;

Material is Q345B Steel

Side beam

16mm or 18mm channal steel (Material is Q235steel)

Brake chamber

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber

ABS

Optional

Twist Locks

Four,Eightor Twelve pieces(Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways(7 wire harness)

Tool box

One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,

2coats of final paint

Shipping term

Transport by bulk cargo carrier,RORO or 40HQ container

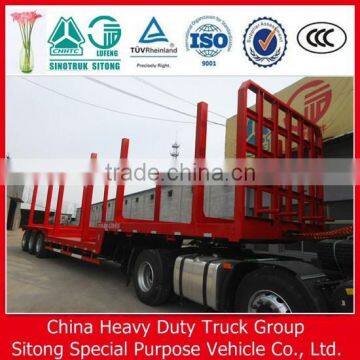

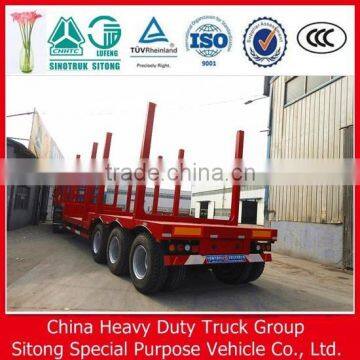

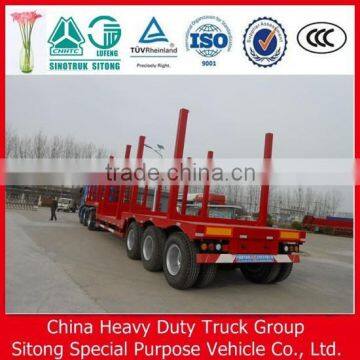

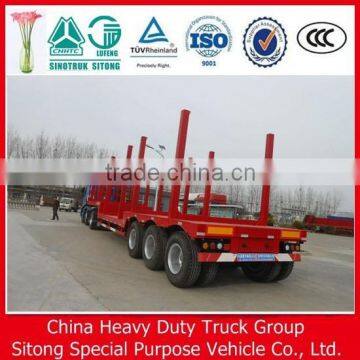

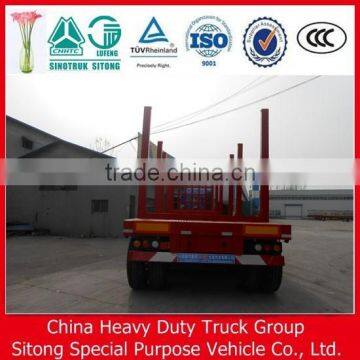

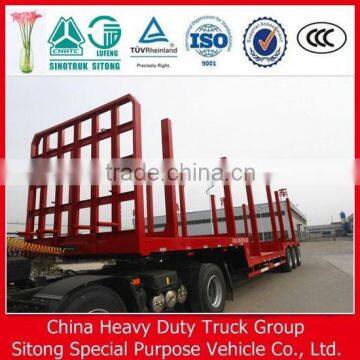

2) photo for sitong ATV timber transport semi truck trailer trailer

sitong ATV timber transport semi truck trailer trailer



other semi truck trailer

sitong ATV timber transport semi truck trailer trailer



semi trailer market

main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck

sitong ATV timber transport semi truck trailer trailer

3) factory photo for  sitong ATV timber transport semi truck trailer trailer

sitong ATV timber transport semi truck trailer trailer

sitong ATV timber transport semi truck trailer trailer

Certifications

certificate for truck semi trailer .

main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck

sitong ATV timber transport semi truck trailer trailer



5) other semi trailer link:

1. Fuel/oil tank semi trailer

://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html

2. Bulk cement tank semi trailer

http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html

3. Low bed semi trailer

http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html

4. Logging semi trailer

http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html

5. Car transport semi trailer

http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html

http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html

6. container skeleton semi trailer

http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html

7. Container flatbed semi trailer

http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html

http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html

8. Tractor full trailer

http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html

http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html

9. Side wall semi trailer

http://lssitong.en.china.cn/product/60213172210-800477896/Factory_supplier_2_axle_farm_trailer_tractor_tipper_trailer.html

http://lssitong.en.china.cn/product/60213093808-800512156/25_60ton_drop_side_farm_trailer.html



10. box semi trailer

  http://www.china.cn/product-detail/hot-sale--3-axle-van_60215324293.html



6) contact information for sitong ATV timber transport semi truck trailer trailer

Contact: Polaris Chen



director of international trade department



sitong03   at  outlook com



skype: cindy.golden



Tel: 0086 537 2882988



Fax: 0086 537 2882988



Mobile: 0086 15053741628
