Prices for 3 Axles Wood Transport Semi Trailer
in Truck Trailer
Best Quanlity Timber transport Trailer

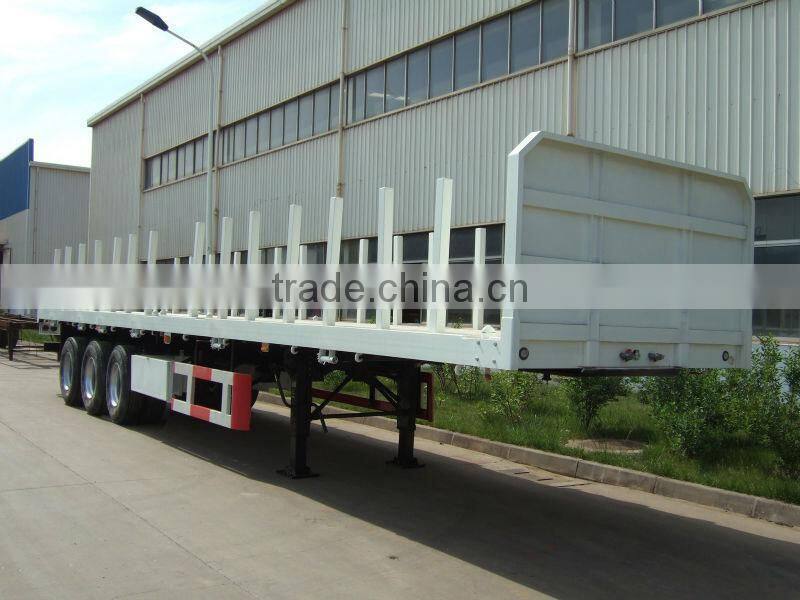

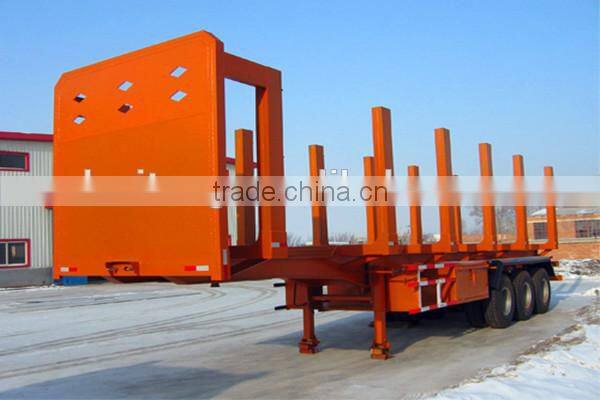

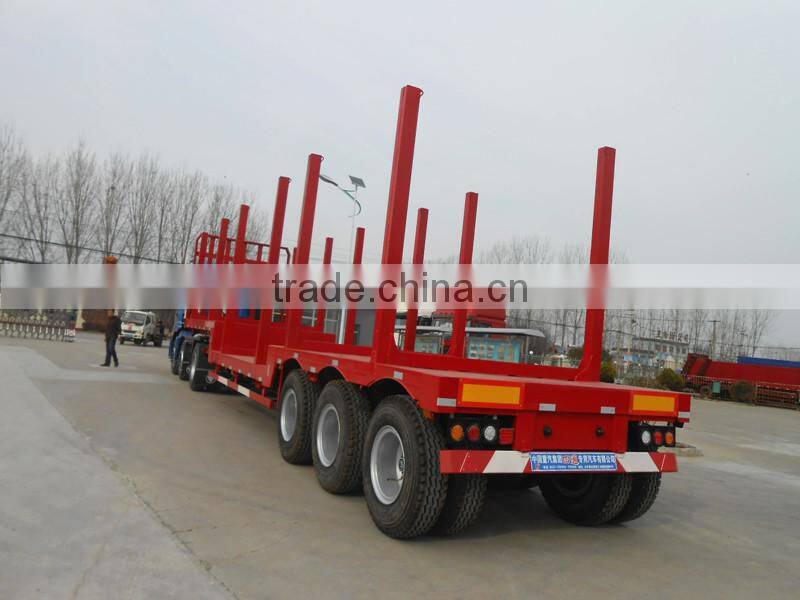

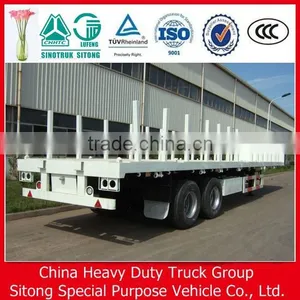

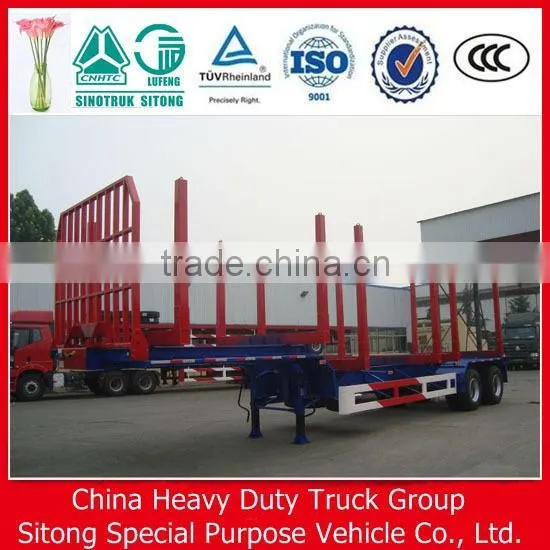

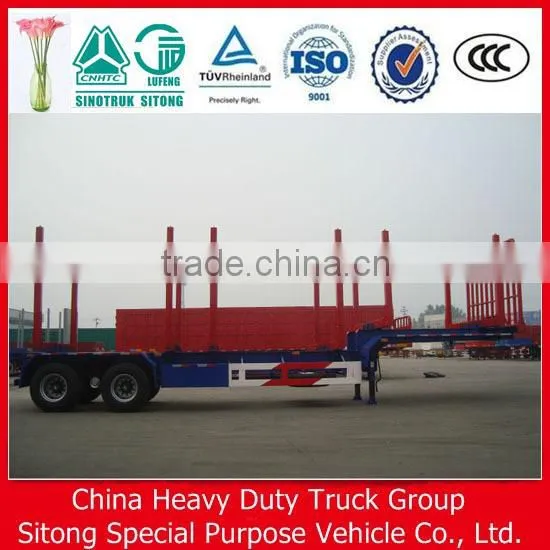

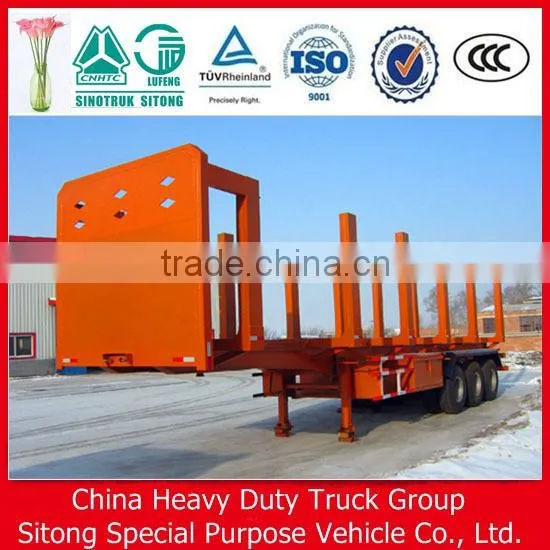

Log Transport/ Timber Trailer/Truck Trailer
Type |
| 3axles wood transport semi trailer |
Shipping Terms | Shipping by containers | |
Delivery time | 13 workdays for one set drop side semi trailer | |
Weight: |
|
|
| Tare Weight | 7000kg |
| Loading Capacity | 20--70T |
Specification: |
| |
| Axle number | 3 pcs |
| Axle specs. | FUWA 13T/16T |
| Suspension |
|
| Wheel | 12.00R20 |
| King Pin | JOST 50# traction pin |
| Dimensions | 13000×2350*3980mm, |
| Support legs | 28Tons (Tongyada Brand)/Jost D200T |
| Rim | 8.5-20 Zhengxing Brand |
| Wheelbase | 7850+1310+1310mm, |
| Steel Spring | 10/10/10 pieces per axles |
Tire: |
|
|
| Number of Tire | 12 pieces |
| Spare Tire Carriers | 2 pieces |
Frame: (specs. and materials) |
| |
| The material of | The height of the beam is 500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm. |
| Side board | The height is from 600-1500mm , |
| Platform plate | 3mm Diamond Plate |
Brake: |
|
|
| Brake | Kemi Brand of China |
| Brake Chamber | Four double and two single chamber( TKL brand ) |
| ABS system | without |
Electrical: |
|
|
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
Miscellaneous: |
| |
| Painting | According to the requirement of the buyer |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
| Tools box | One pieces or According to the buyer |
Normally semi trailer is nude packing , bulk cargo , laden in bulk .
Considering our semi trailer dimension , shipping by sea .
1. OEM Service
2. Production Solutions Service
3. Customized Service
4. One-stop Shopping Service
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Please explain more about the Package and Shipping.
There's no package but we will spary wax before shipment against saltwater corrosion.
Regarding to the shipping method, as the size of truck trailer is not small, most kinds of trailers must be delivered by Ro-ro vessel or bulk vessel. But few kinds of trailers could be delivered by container vessel. Different trailers, different shipping methods.
If you have any interests in our products, please feel free to Contact us:
MS Panny QU
Skype: pannyqu
Tel: +86 537 2882988
Mob: +86 18753778511
Email: Sitong02(at)
