Sitong Factory: Wood Transport Low Loader Axle Trailer

Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-1
Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-2
Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-3
Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-4
Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-5
Sitong Factory: Wood Transport Low Loader Axle Trailer thumbnail-6
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-1
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-2
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-3
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-4
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-5
Sitong Factory: Wood Transport Low Loader Axle Trailer photo-6
US$ 1 - 10,000 MOQ: 3 Sets
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, CCC, ISO9001:2008
Contact Supplier Request Quote Chat Now
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Semi-Trailer
Material Steel
Certification Other, CCC, ISO9001:2008
Size 13000*2350*3980mm
Max Payload 70TON
Place of Origin Shandong, China
Brand Name LUFENG
Model Number 20~70ton

              wood transport low loader axle trailer



Product Description

 sitong factory: wood transport low loader axle trailer

sitong factory: wood transport low loader axle trailer



1)specification for  wood transport low loader axle trailer



product

Log loader truck flatbed semi trailer / tractor trailer

Tare Weight

About 6.8-8.6T

dimension

13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension)

Loading Capacity

≤60T

Axle

13T/16T,FUWA/BPW/Huajing Brand

Wheel Rim

9.00-22.5

Tire

12.00R22.5/315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW Brand)

Spring leaf

90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12

King pin

Jost brand 2.0 0r 3.5 inch bolts type or welding type

Suppot leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;

Material is Q345B Steel

Side beam

16mm or 18mm channal steel (Material is Q235steel)

Brake chamber

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber

ABS

Optional

Twist Locks

Four,Eightor Twelve pieces(Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways(7 wire harness)

Tool box

One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,

2coats of final paint

Shipping term

Transport by bulk cargo carrier,RORO or 40HQ container

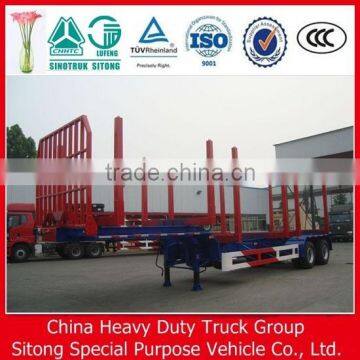

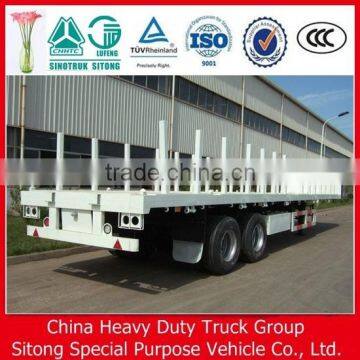

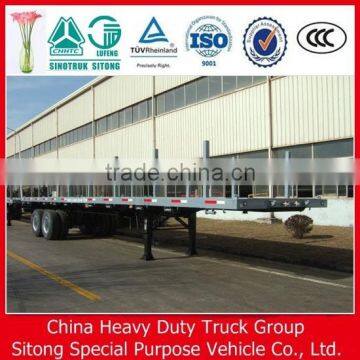

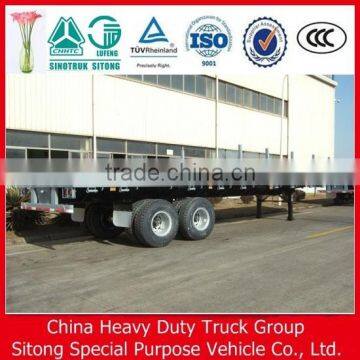

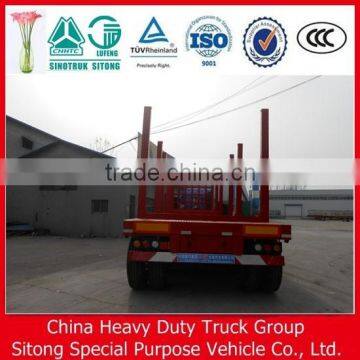

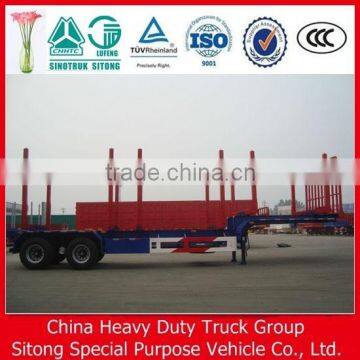

2) photo for  wood transport low loader axle trailer

sitong factory: wood transport low loader axle trailer
