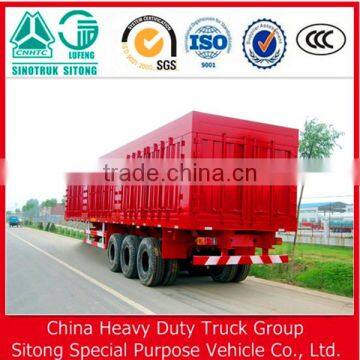

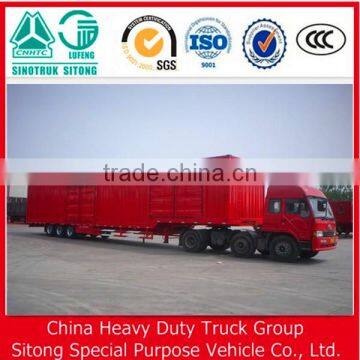

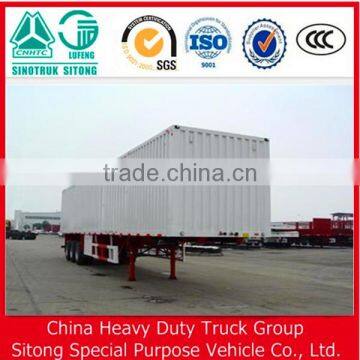

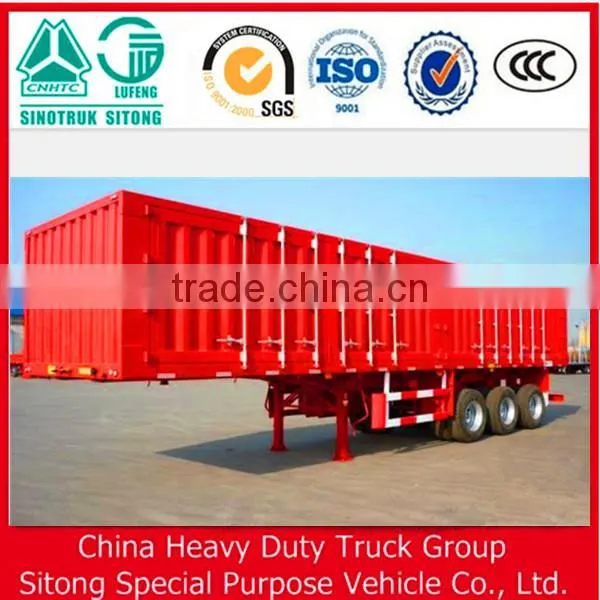

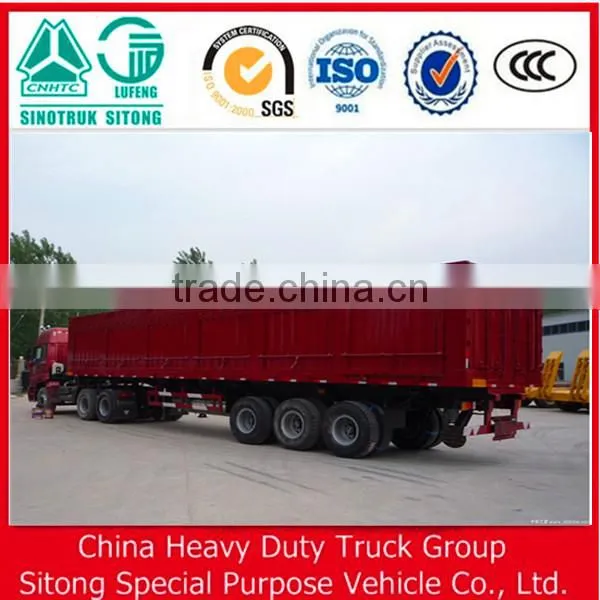

Enclosed Box Semi-Trailer/Curtin Side Trailer For 20-60 Tons Heavy Duty Transport
Type |
| Box semi trailer Loading for bulk goods Van Semi Trailer |
Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
Delivery time | 20 workdays for three unit semi trailer | |
Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T |
Axle Weight Load | 16T per | |
Specification: |
| |
Axle number | Two , HUAJING brand | |
Suspension | America type Mechanical Suspension | |
Wheel | 12.00R20 triangle brand tire | |
King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
Dimensions (Inner box) | 13000 x 2500 x 2500mm | |
Support legs | CTAC special two double speed legs | |
Rim | 8.25-20 , | |
Steel Spring | 90mm*13mm*10pieces | |
Tire: |
|
|
Number of Tire | 8 pieces | |
Spare Tire Carriers | 2 pieces (not tires) | |
Frame: (specs. and materials) |
| |
Platform plate | 3mm flat Platform | |
The material of Main beam | the height of the beam is 500mm,upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
Cross Beam | Vertical corrugated board, thickness is 3mm | |
Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
Back Door | With four pieces lock bars | |
Upper side of box | Without plate | |
Brake: |
|
|
Emergency Brake Valve | WABCO | |
Brake Chamber | Four double chamber(CTAC special for export type ) | |
ABS system | without | |
Electrical: |
|
|
Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: |
| |
Painting | Blue | |
Marking | According to the requirement of the buyer | |
Side Guard | 2 piece | |
Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Low bed semi trailer/Flatbed semi trailer/
Skeleton semi trailer/Fuel tank semi trailer
Bulk cement tank semi trailer/Stake semi trailer/
Side wall semi trailer/Rear tipping semi trailer
Box /van container semi trailer/Car transport semi trailer
Wood transport semi trailer/Concrete mix truck/
Full trailer/HOWO truck head
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
7. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
8. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
9. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
10. How to contact us ?
MS Panny QU
Skype: pannyqu
Tel: +86 537 2882988
Mob&WhatsApp: +86 18753778511
Email : SitongTrailer(at)
