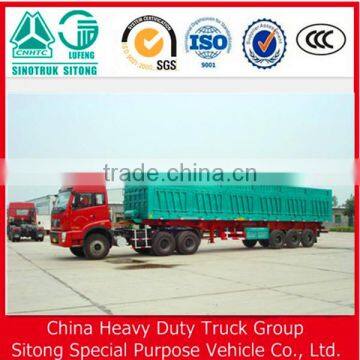

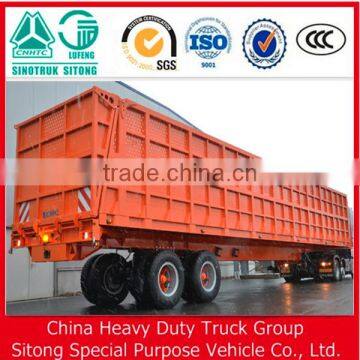

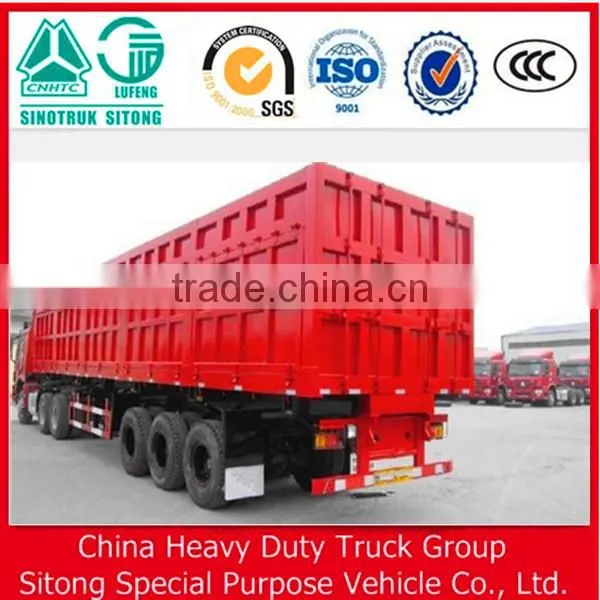

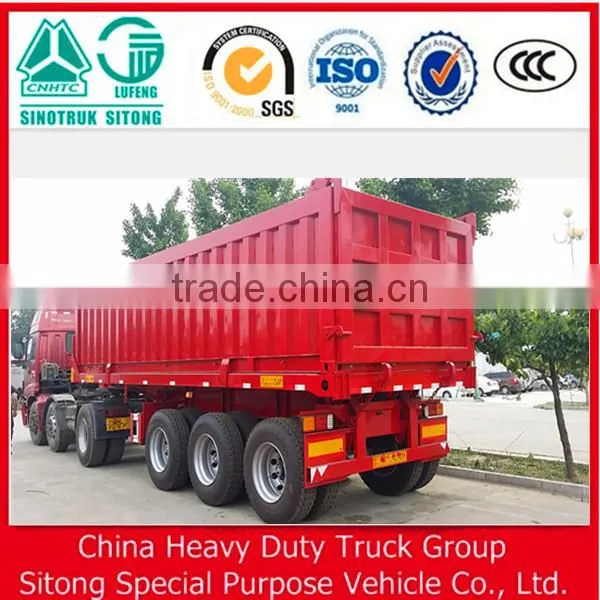

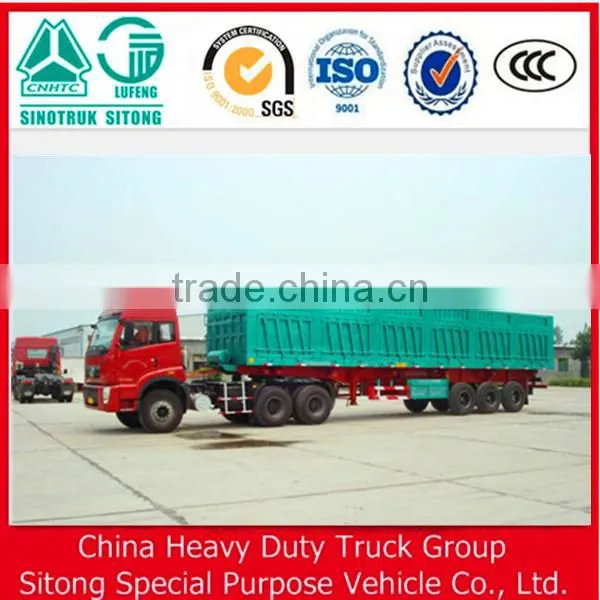

curtain-sider semi trailer/ side curtain semi-trailer on sale
Type |
|
Box semi trailer Loading for bulk goods Van Semi Trailer |
Shipping Terms |
Shipping by bulk cargo ship, three pieces put together . |
|
Delivery time |
20 workdays for three unit semi trailer |
|
Weight: |
Loading Capacity |
50tons |
|
Tare Weight |
About 10T |
Axle Weight Load |
16T per |
|
Specification: |
|
|
Axle number |
Two , HUAJING brand |
|
Suspension |
America type Mechanical Suspension |
|
Wheel |
12.00R20 triangle brand tire |
|
King Pin |
2.00inch traction pin(Bolt connecting type)/.Jost brand |
|
Dimensions (Inner box) |
13000 x 2500 x 2500mm |
|
Support legs |
CTAC special two double speed legs |
|
Rim |
8.25-20 , |
|
Steel Spring |
90mm*13mm*10pieces |
|
Tire: |
|
|
Number of Tire |
8 pieces |
|
Spare Tire Carriers |
2 pieces (not tires) |
|
Frame: (specs. and materials) |
|
|
Platform plate |
3mm flat Platform |
|
The material of Main beam |
the height of the beam is 500mm,upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. |
|
Side beam |
Upper side beam is 16# channel steel, down is 16# channel steel. |
|
Cross Beam |
Vertical corrugated board, thickness is 3mm |
|
Side board |
Three folio doors and with lock bars at each side(Thickness 2mm) |
|
Back Door |
With four pieces lock bars |
|
Upper side of box |
Without plate |
|
Brake: |
|
|
Emergency Brake Valve |
WABCO |
|
Brake Chamber |
Four double chamber(CTAC special for export type ) |
|
ABS system |
without |
|
Electrical: |
|
|
Voltage |
24V |
|
|
Receptacle |
7 ways(7 wire harness) |
Light color: |
|
|
Side marker lamp |
Orange |
|
Rear lamp |
Red |
|
Turn signal lamp |
Orange |
|
Miscellaneous: |
|
|
Painting |
Blue |
|
Marking |
According to the requirement of the buyer |
|
Side Guard |
2 piece |
|
Tools box (without Tarpaulin) |
One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|
Low bed semi trailer/Flatbed semi trailer/
Skeleton semi trailer/Fuel tank semi trailer
Bulk cement tank semi trailer/Stake semi trailer/
Side wall semi trailer/Rear tipping semi trailer
Box /van container semi trailer/Car transport semi trailer
Wood transport semi trailer/Concrete mix truck/
Full trailer/HOWO truck head
