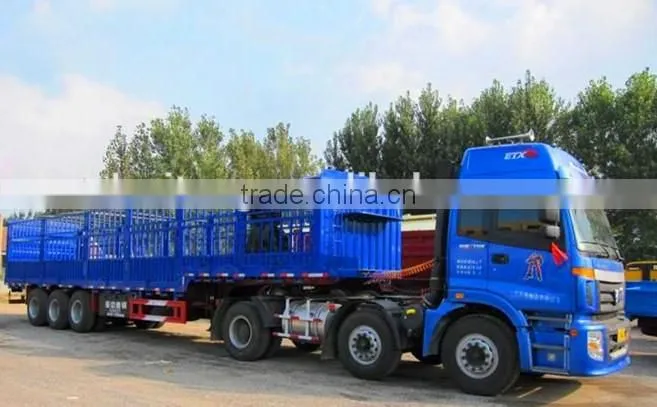

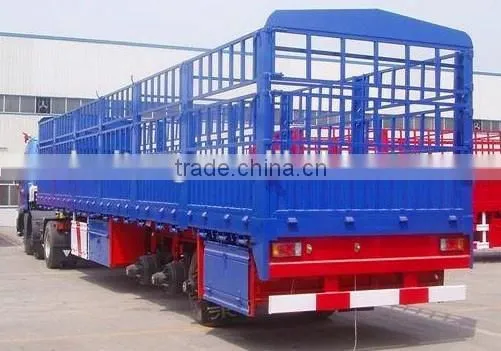

3 axles 13m fence rail truck semi trailer
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card
- low bed trailer for machines transport | heavy duty lowbed trailer for sale ,China supplier
- Customized Axle 60 Ton Low Bed Trailer,30-200T loading capacity,FOCUS Lowbed Trailer For Sale
- Different types of Lowbed Trailers , low bed trailer, low bed trailer for sale at cost price, with table sizes of 40ft , 2 axle , 3 axle
- Low Bed Heavy Duty Semi Trailers,Logistic Transport Flatbed Gooseneck Trailer from China factory
- 80tons hydraulic gooseneck lowboy truck trailer from China factory ,Cheap price with customized
- Heavy Duty Gooseneck Lowbed Trailer,Heavy duty hydraulic gooseneck low bed trailer | line axles
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | DOT |
Size: | 13*2.5/.*1.5M | OEM No.: | 37081198902 | Max Payload: | 31.5 |
Place of Origin: | Shandong, China | Brand Name: | LUFENG | Model Number: | LST9400CXY |
Product Description
3 axles 13m fence rail truck semi trailer
Tare Weight | 8.3T |
dimension | 13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension) |
Loading Capacity | ≤60T |
Axle | 13T/16T,FUWA/BPW/Huajing Brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5/315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand) |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel |
Side beam | 16mm or 18mm channal steel (Material is Q235steel) |
Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber |
ABS | Optional |
Twist Locks | Four,Eight, Twelve pieces(Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
Shipping term | Transport by bulk cargo carrier, RORO or 40HQ container |
Low bed semi trailer/Flatbed semi trailer/
Skeleton semi trailer/Fuel tank semi trailer
Bulk cement tank semi trailer/Stake semi trailer/
Side wall semi trailer/Rear tipping semi trailer
Box /van container semi trailer/Car transport semi trailer
Wood transport semi trailer/Concrete mix truck/
Full trailer/HOWO truck head
