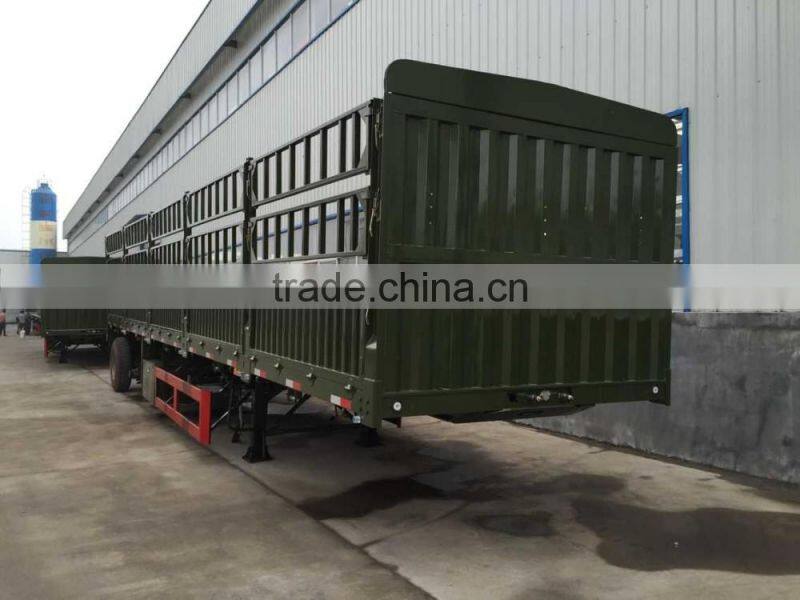

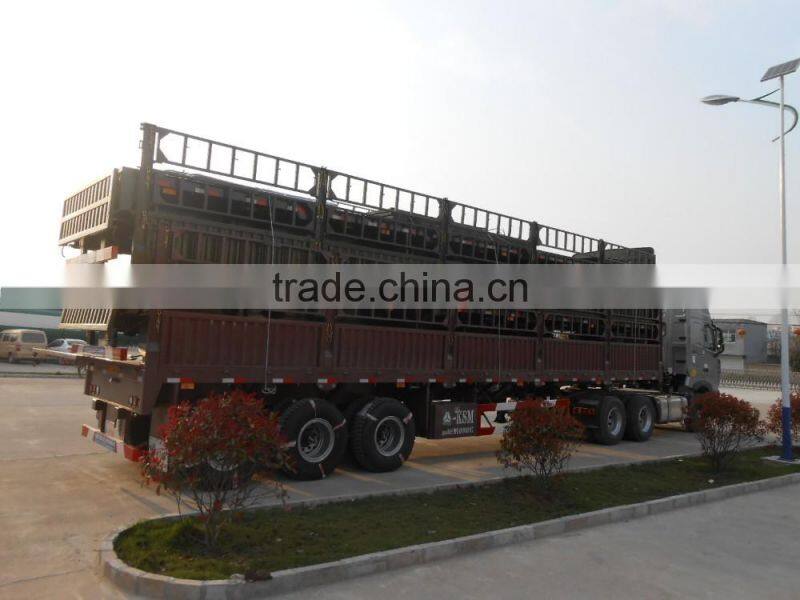

Help CenterSino Truck Sitong Tri-axle Stake Semi Trailer Truck Trailer
Related Products
-
40ft Livestock Trailers,3 Axle Cattle Cage Trailer for SaleUS$ 8,800 - 8,800MOQ: 3 Sets -
Hot Selling 3 Axle 60T Grid Fence Cargo Sheep Cattle TrailerUS$ 8,800 - 8,800MOQ: 3 Sets
-
Truck Trailer Type 40 Tons 3 Axles Two Storages 50-60 Head Cow Livestock Fence Semi Trailer/cattle Transport Trailer for TruckUS$ 8,800 - 8,800MOQ: 3 Sets
-
Cattle Transportion Semi Trailer/side Panel of Livestock TrailerUS$ 8,800 - 8,800MOQ: 3 Sets
-
Low Price Light Weight 12 Wheels Fence Truck Cargo Semi Trailer With 3 Axles for SaleUS$ 8,800 - 8,800MOQ: 3 Sets
Product information
Tare Weight |
8.3T |
dimension |
13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension) |
Loading Capacity |
≤60T |
Axle |
13T/16T,FUWA/BPW/Huajing Brand |
Rim |
9.00-22.5 |
Tire |
12.00R22.5/315 80R22.5 |
Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand) |
Spring leaf |
90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
King pin |
Jost brand 2.0 0r 3.5 inch bolts type or welding type |
Support leg |
JOST brand D200T or China brand 28Tons (Double speed) |
Main beam |
Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel |
Side beam |
16mm or 18mm channal steel (Material is Q235steel) |
Brake chamber |
WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber |
ABS |
Optional |
Twist Locks |
Four,Eight, Twelve pieces(Lifting type or Twist Screw Type) |
Valve |
WABCO valve |
Light |
LED light |
Voltage |
24V |
Receptacle |
7 ways(7 wire harness) |
Tool box |
One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting |
Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
Shipping term |
Transport by bulk cargo carrier, RORO or 40HQ container |
Related product
Certifications
Company information
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
