25~60ton drop side tractor trailer
1) specification for 25~60ton drop side tractor trailer
|
|
Product type |
Side wall semi trailer |
Outside dimension(mm) |
Length:13000,12500 width:2500 height:2850 |
Inside dimension(mm) |
Length:12850,12350 width:2340 height:600 |
Gross weight(kg) |
40000-70000 |
Tare weight (kg) |
6000 |
Wheelbase(mm) |
6850+1310+1310,6550+1310+1310 |
Loading capacity: (kg) |
34000-64000 |
Axles |
3 13/16T |
ABS system |
Optional |
|
Maximum loading capacity of semi trailer saddle(kg) |
16000 |
Front/rear suspension(mm) |
-/2230 -/2030 |
Approach/departure angle |
-/15,-/13 |
Number of spring leaves(front/rear |
-/10/10/10,-/8/8/8 |
Rim |
8.25×22.5/9.00×22.5 |
King pin |
JOST 2.00 or 3.5 |
Support legs |
China brand 28tons/C200 JOST or according to the requirement of the buyer |
The material of main beam |
The height of the beam is 500 mm,upper plate is 14 mm, down plate is 16 mm,middle plate is 8 mm,made of Q345steel |
Brake Chamber |
4 double-chambers and 2 single chambers |
Electrical System |
24V,7 wire harness |
Tool box |
One piece or according to the requirement of the buyer |
Painting |
Compete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint |
Rear wheeltrack (mm) |
1840/1840/1840 |
Tires |
12 Triangle or othe brand |
Tire specification |
11.00R20 12PR,12R22.5 12PR |
Axle load |
-/24000 (three axles) |
VIN No. |
LA966RCC...SYL... |
Reflective warning signage |
Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand: TONGMING Product Type:TM1200-1 |
|
Others
|
1. ABS system: type: HNABS4S/4M. Manufacturer: Liangshan Haina Electronic Technology Co., Ltd. 2. Under-run protector: with the material of Q235B, be welding with the main body 3. Rear under-run protector:the height above the ground is 500mm section:150mm*55mm. |
Shipping terms |
By bulk cargo carrier, RORO |

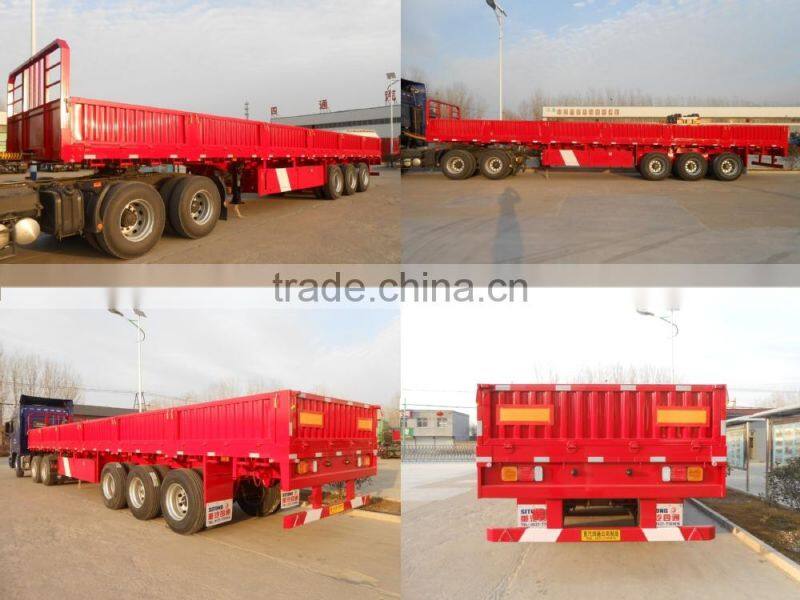

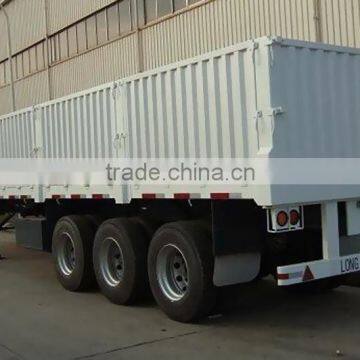

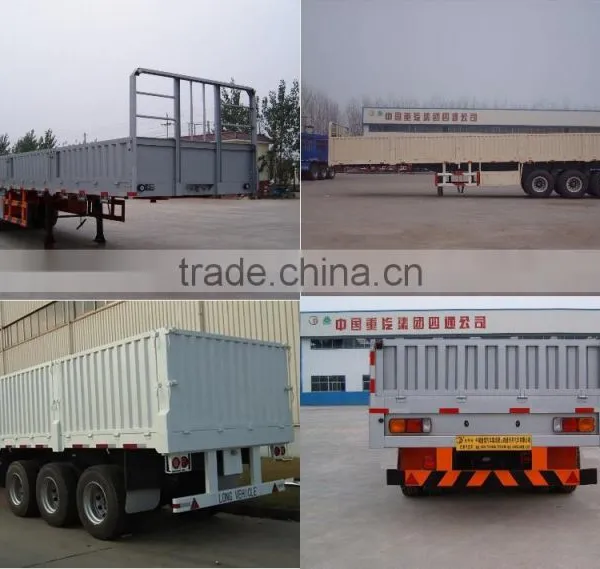

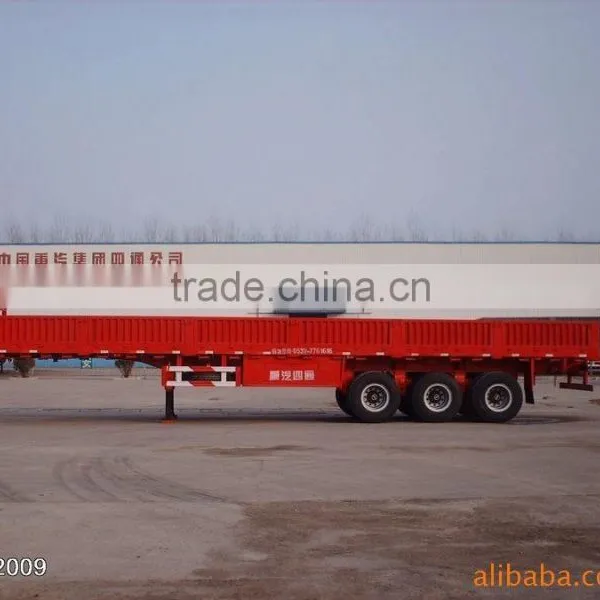

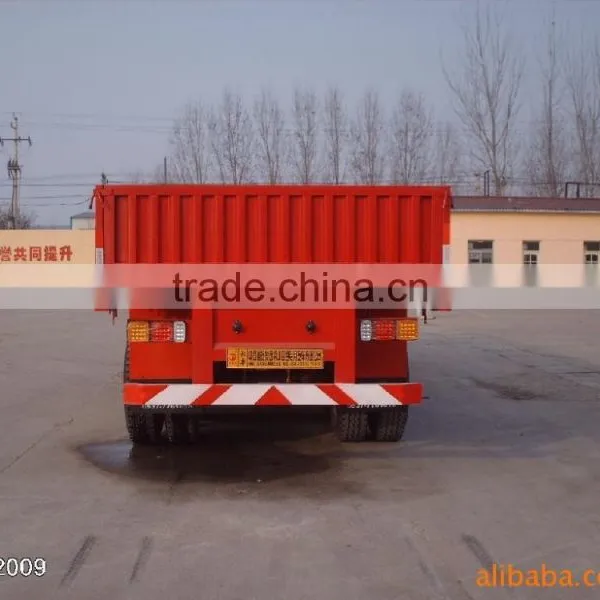

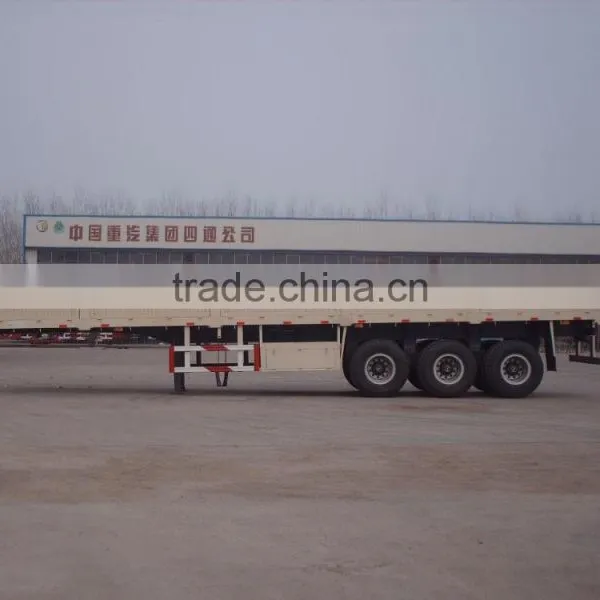

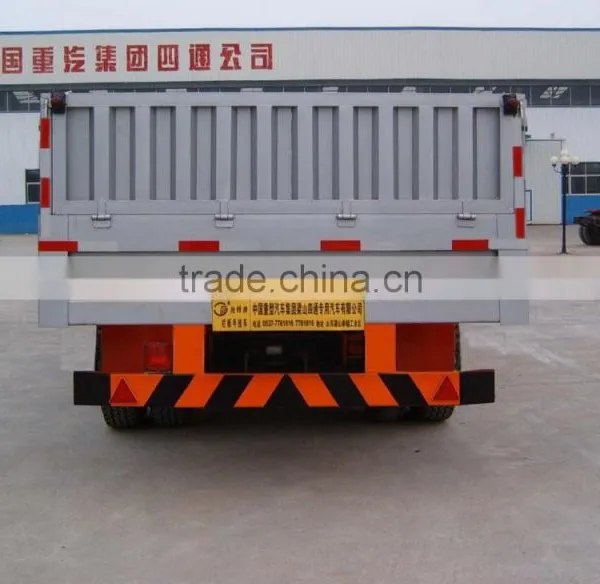

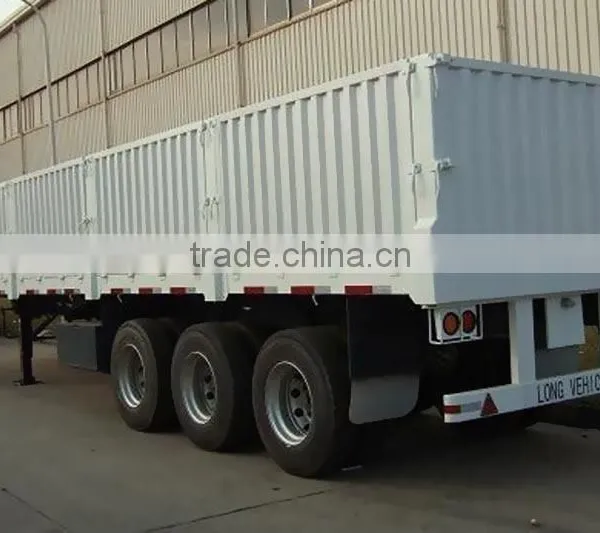

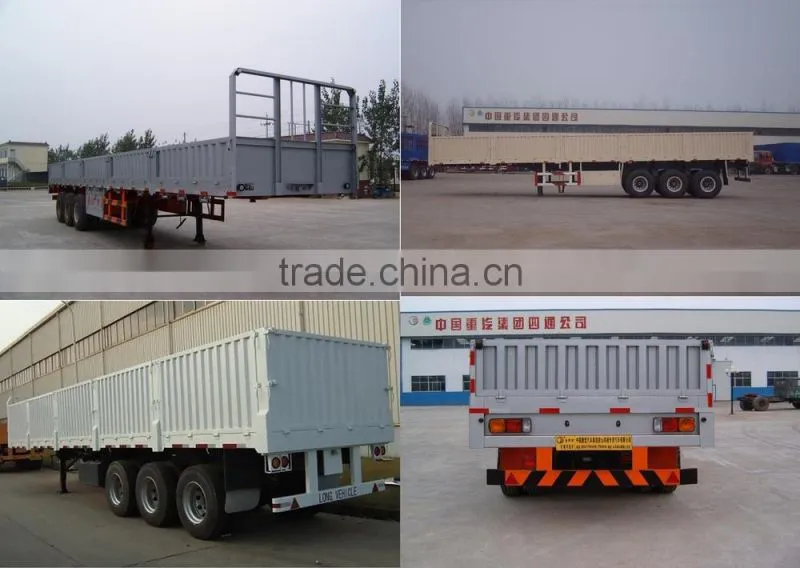

2) photo for 25~60ton drop side tractor trailer
other semi trailers

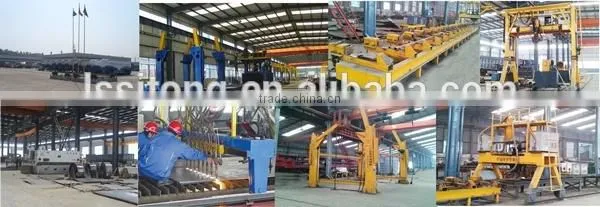

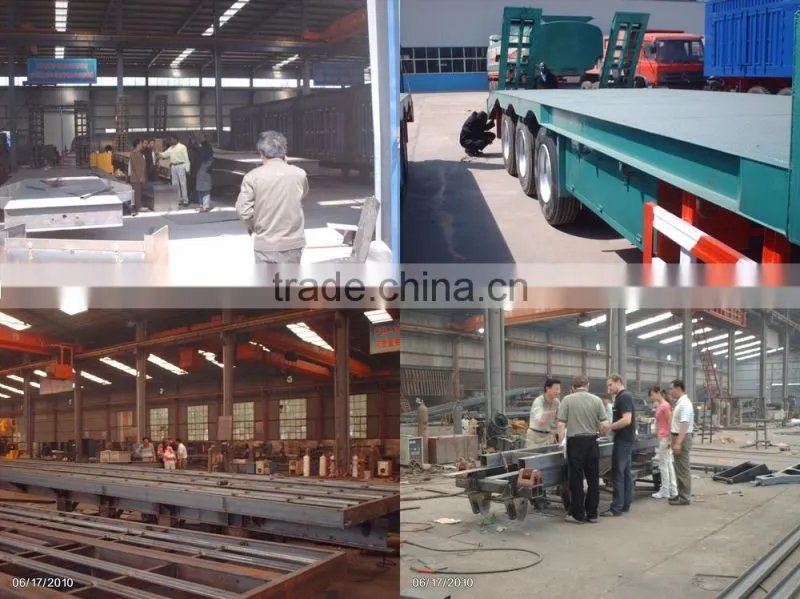

3) factory photo for 25~60ton drop side tractor trailer
4) certificate for 25~60ton drop side tractor trailer
5) customer visit our semi trailer factory
6) other semi trailer link:
1. Fuel/oil tank semi trailer
://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html
2. Bulk cement tank semi trailer
http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html
3. Low bed semi trailer
http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html
4. Logging semi trailer
http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html
5. Car transport semi trailer
http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html
http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html
6. container skeleton semi trailer
http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html
7. Container flatbed semi trailer
http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html
http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html
8. Tractor full trailer
http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html
http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html
