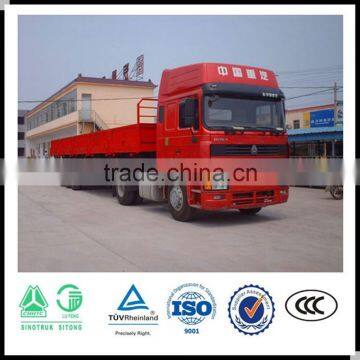

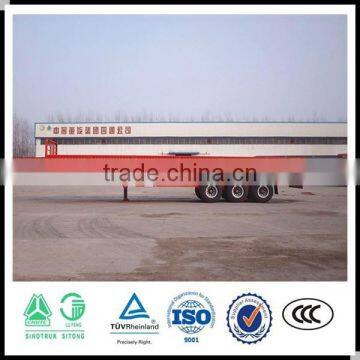

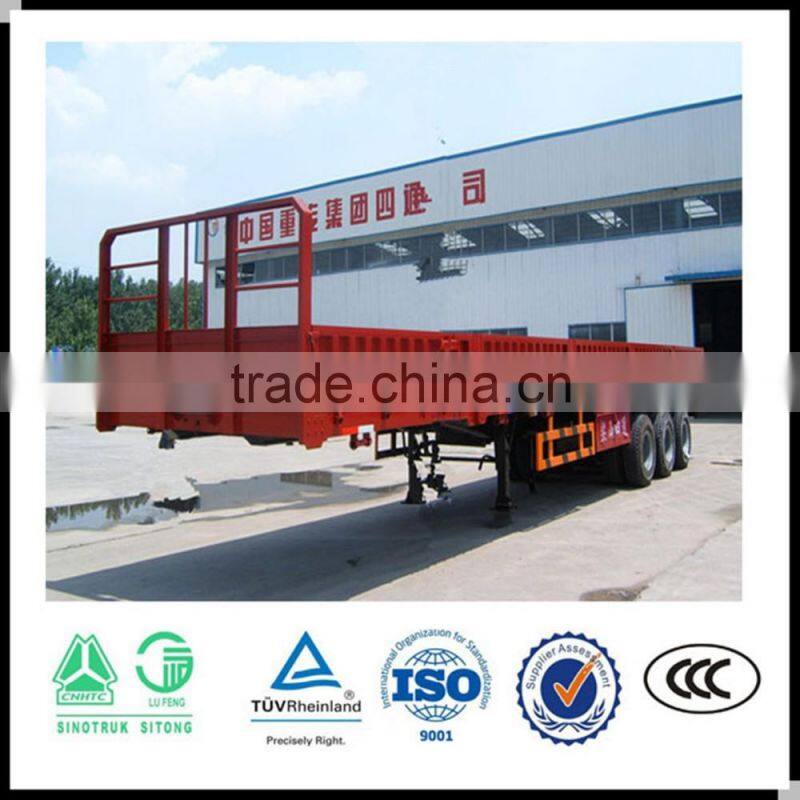

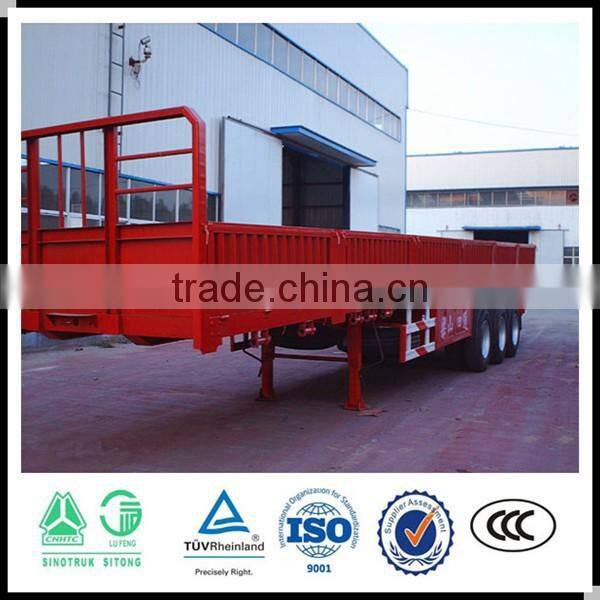

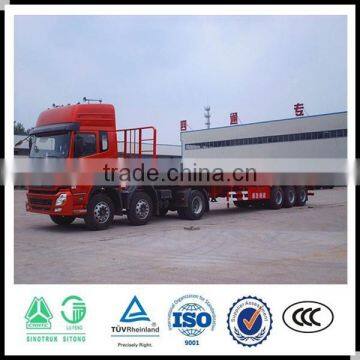

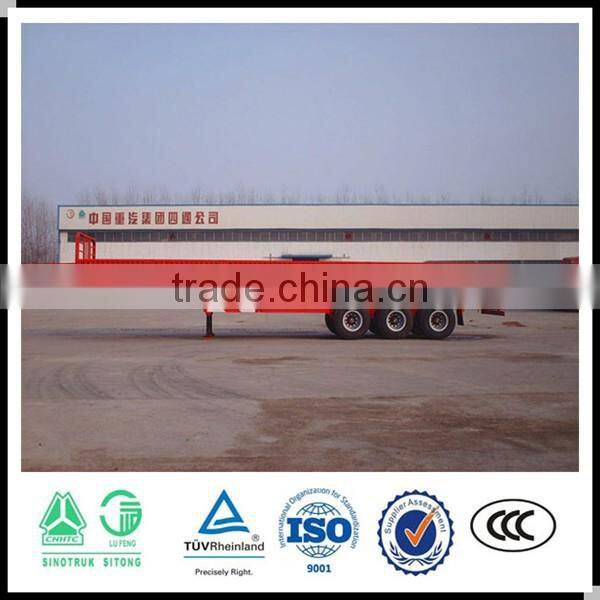

Factory Offer Side Wall Semi Trailer for Sales

Name: Factory Offer Side Wall Semi Trailer for Sales
Brand: Lufeng
SKU: 141205660
Availability: InStock

US$ 9,800 - 15,800 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao /shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 13*2.5*1.7m

OEM No. 370811989

Max Payload 55T

Place of Origin Shandong, China

Brand Name Lufeng

Model Number LST9400GFL

side wall semi trailer

Product Description

Tare Weight	7-15T
dimension	11600/13000/1600024901575mm
Loading Capacity	≤45T
Axle	13T/16T,FUWA/BPW/Huajing Brand
Rim	9.00-22.5 China brand
Tire	12.00R22.5/315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand)
Spring leaf	90(w)mm13(thickness)mm10Layer or 100mm12mm12
King pin	Jost brand 2.0 0r 3.5 inch bolts type or welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel
Side beam	16mm or 18mm channal steel (Material is Q235steel)
Brake chamber	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber
ABS	Optional
Twist Locks	Four, Eight, Twelve pieces(Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways(7 wire harness)
Tool box	One piece,1m0.5m0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint
Shipping term	Transport by bulk cargo carrier,RORO or 40HQ container
