Home > Transportation > Trailer > Truck Trailer > Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer

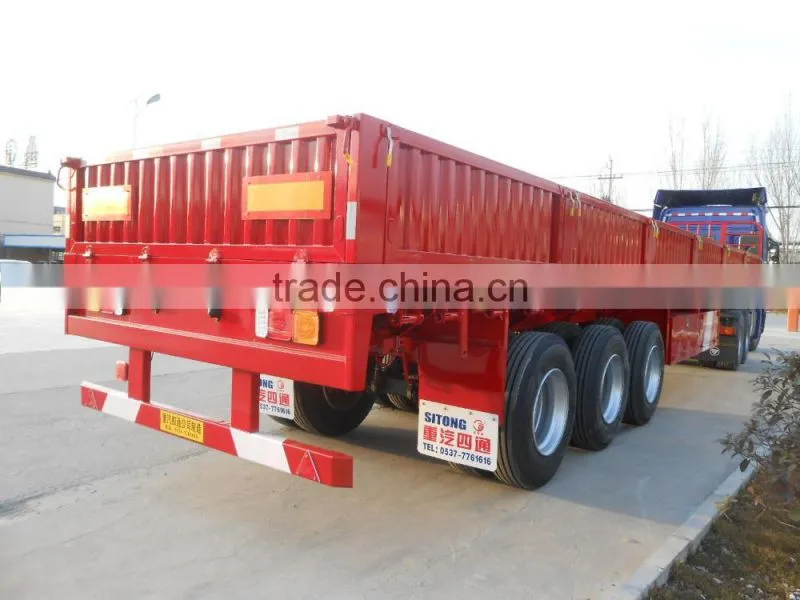

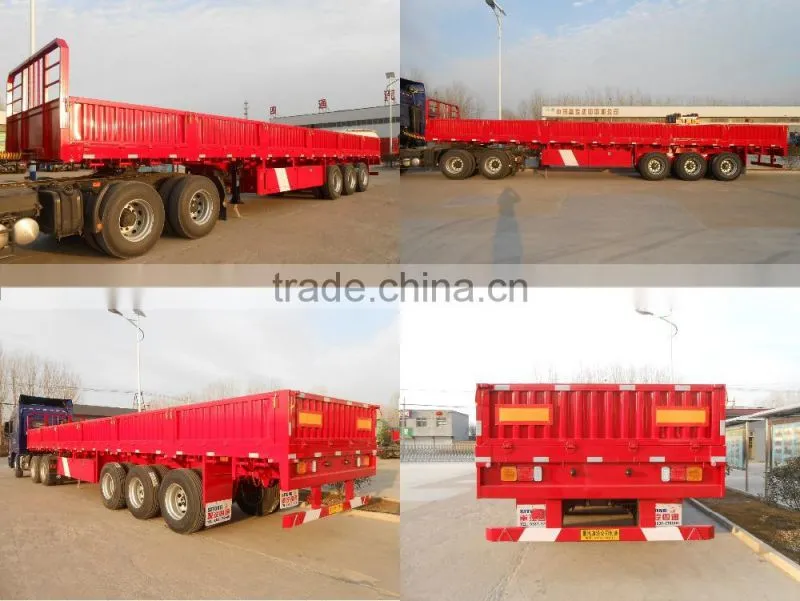

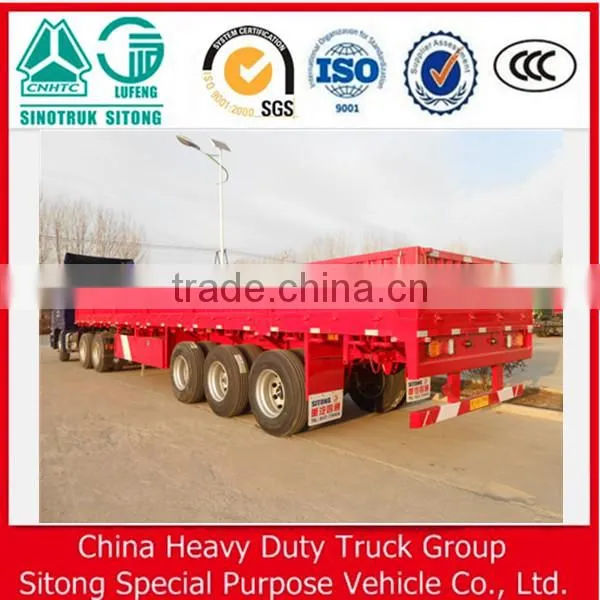

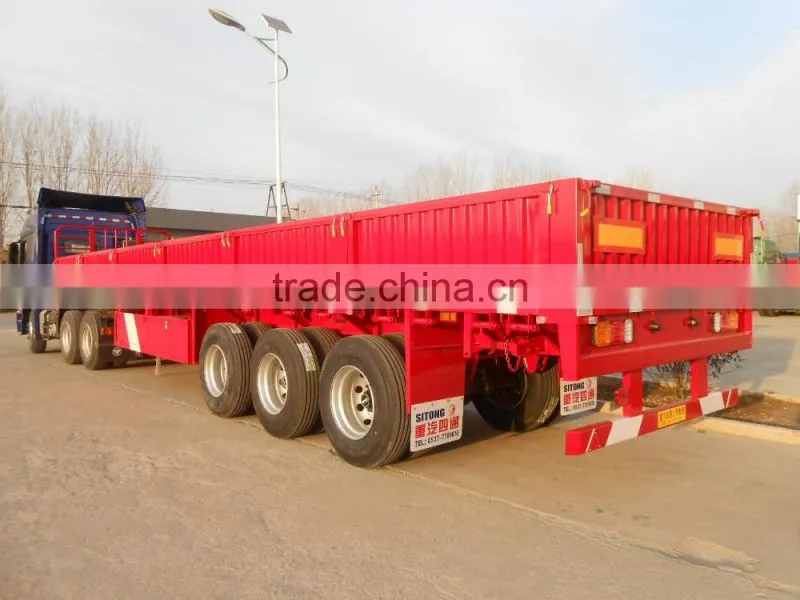

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer

Name: Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer
Brand: LUFENG
SKU: 141205644
Availability: InStock

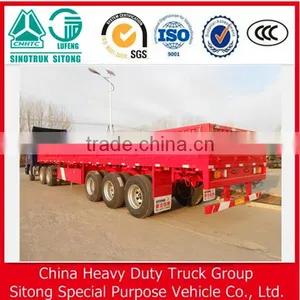

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-1

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-2

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-3

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-4

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-5

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer thumbnail-6

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-1

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-2

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-3

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-4

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-5

Tri-axle Side Wall Twist Locks Flatbed Semi Trailer,Platform Cargo Trailer,Flatbed Tractor Trailer photo-6

US$ 6,800 - 6,800 MOQ: 3 Sets

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

DOT

Contact Supplier Request Quote Chat Now

China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification DOT

Size 13*2.5/.*1.5M

OEM No. 37081198902

Max Payload 31.2T

Place of Origin Shandong, China

Brand Name LUFENG

Model Number LST9390

Side Wall Semi Truck Trailer Dropside Semitrailer

Factory Price Wholesale Dropside Semitrailer For Cargo Transportation Truck Trailer

Sidewall semi trailer Dropside semi-trailer

Tri-axle side wall twist locks flatbed semi trailer,Platform cargo trailer,

Flatbed tractor trailer

Product Description

Side wall semi trailer Dimension	1128024953970mm(Outside Dimension)1050023001700(Inside Dimension)
Tare Weight	15600kg
Total Volume	37m3 or less than 80tons
Side wall thickness(mm)	6mm Q235 steel
Bottom plate thickness(mm)	8mm Q235steel
Lifting system	Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Main beam	Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel
Axle	13T/16T,FUWA/BPW/Huajing Brand
Spring leaf	90(w)mm13(thickness)mm10Layer or 100mm12mm12
King pin	Jost brand 2.0 0r 3.5 inch bolts type or welding type
Landing Gear	JOST brand D200T or China brand 28Tons (Double speed)
Suspension	Mechanical suspension/America Type/Germany Type
Rim	9.00-22.5/8.00-20/8.5-20China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available
Pneumatic Braking system	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank
ABS	Optional
Tool box	One piece,1m0.5m0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint
Shipping term	Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer

Company Information

China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.

Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,

which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .

“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and

overseas market and win great satisfaction and trust from customers.

FAQ

1.Are you manufacture?

Yes. We are one of leading manufacturers for Kinds of pneumatic torque

wrench with many new production line.

2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):

ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
MAIN FRAME	FRAME		1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION		6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN		1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM		3 MONTHS		TIRE	6 MONTHS
ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM	3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER	3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR	6 MONTHS
ITEM NAME					WARRANTY
OTHERS		LEAF SPRING			3 MONTHS
		BRAKE CHAMBER DIAPHRAGM			3 MONTHS
		EMERGENCY RELAY VALVE			3 MONTHS
		BRAKE SHOE			3 MONTHS
		RELAY VALVE			3 MONTHS

3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.

4.What benefits will you bring?
Your client satisfied on the quality.

Your client continued orders.

Your can get good reputation from your market and obtain more orders.

5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.

6.Please explain more about the Package and Shipping.
There's no package but we will spary wax before shipment against saltwater corrosion.
Regarding to the shipping method, as the size of truck trailer is not small, most kinds of trailers must be delivered by Ro-ro vessel or bulk vessel. But few kinds of trailers could be delivered by container vessel. Different trailers, different shipping methods.

Certifications
