Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer

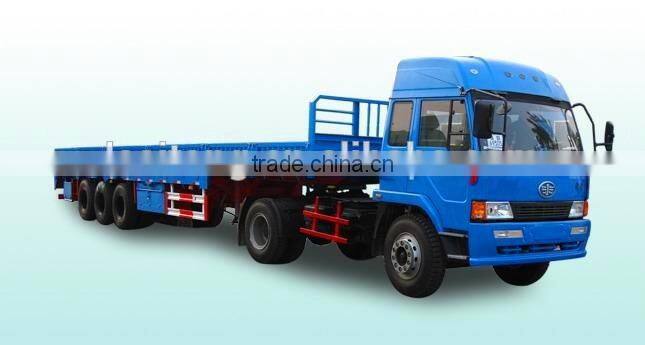

Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-1
Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-2
Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-3
Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-4
Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-5

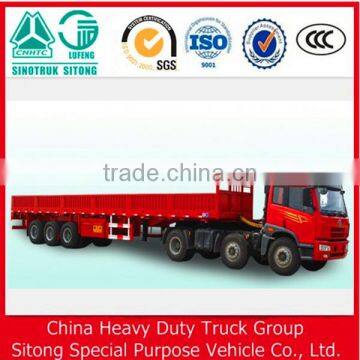

Quality Drop Side Wall Semi Trailer/container Load Side Door Semi Trailer photo-6
US$ 6,800 - 6,800 MOQ: 3 Sets
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
DOT
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Steel
Certification DOT
Size 13*2.5/.*1.5M
OEM No. 37081198902
Max Payload 31.2T
Place of Origin Shandong, China
Brand Name LUFENG
Model Number LST9390





Quality drop side wall semi trailer/container load side door semi trailer





Product Description



Side wall semi trailer Dimension

11280*2495*3970mm(Outside Dimension)10500*2300*1700(Inside Dimension)

Tare Weight

 15600kg

Total Volume

37m3 or less than 80tons

Side wall thickness(mm)

6mm Q235 steel

Bottom plate thickness(mm)

8mm Q235steel

Lifting system

Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder

Main beam

Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel

Axle

13T/16T,FUWA/BPW/Huajing Brand

Spring leaf

90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12

King pin

Jost brand 2.0 0r 3.5 inch bolts type or welding type

Landing Gear

JOST brand D200T or China brand 28Tons (Double speed)

Suspension

Mechanical suspension/America Type/Germany Type

Rim

9.00-22.5/8.00-20/8.5-20China Brand

Tire

12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available

Pneumatic Braking system

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank

ABS

Optional

Tool box

One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint

Shipping term

Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer









 Quality drop side wall semi trailer/container load side door semi trailerQuality drop side wall semi trailer/container load side door semi trailerQuality drop side wall semi trailer/container load side door semi trailerQuality drop side wall semi trailer/container load side door semi trailer





Related product



Low bed semi trailer/Flatbed semi trailer/

Skeleton semi trailer/Fuel tank semi trailer



Bulk cement tank semi trailer/Stake semi trailer/

Side wall semi trailer/Rear tipping semi trailer



Box /van container semi trailer/Car transport semi trailer

Wood transport semi trailer/Concrete mix truck/

Full trailer/HOWO truck head





   Quality drop side wall semi trailer/container load side door semi trailer

Product line

 Quality drop side wall semi trailer/container load side door semi trailerQuality drop side wall semi trailer/container load side door semi trailer

FAQ



1.Are you manufacture?

Yes. We are one of leading manufacturers for Kinds of pneumatic torque

wrench with many new production line.



2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):



ITEM NAME WARRANTY ITEM NAME WARRANTY
MAIN FRAME FRAME 1 YEAR RUNNING GEAR AXLE 6 MONTHS
SUSPENSION 6 MONTHS AXLE BEARING 3 MONTHS
KING PIN 1 YEAR WHEEL HUB 3 MONTHS
BALANCE ARM 3 MONTHS TIRE 6 MONTHS
ITEM NAME WARRANTY ITEM NAME WARRANTY
BRAKING DEVICE BRAKE DRUM 3 MONTHS SUPPORT DEVICE LANDING GEAR 6 MONTHS
BRKE CHAMBER 3 MONTHS SPARE WHEEL  CARRIER 6 MONTHS
AIR RESERVOIR 6 MONTHS
ITEM NAME WARRANTY
OTHERS LEAF SPRING 3 MONTHS
BRAKE CHAMBER DIAPHRAGM 3 MONTHS
EMERGENCY RELAY VALVE 3 MONTHS
BRAKE SHOE 3 MONTHS
RELAY VALVE 3 MONTHS




3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.


4.What benefits will you bring?
Your client satisfied on the quality.



Your client continued orders.



Your can get good reputation from your market and obtain more orders.


5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.



6.Can I have samples of this type of trailer to test the quality?

Yes, you can buy any samples to test the quality,our MOQ is 1 set.



7. What's the delivery time and can you lower the price?

It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.



8. Can I customize the painting and the logo?

Yes, we offer customized logo for any type.



9. What's the payment method?

TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
