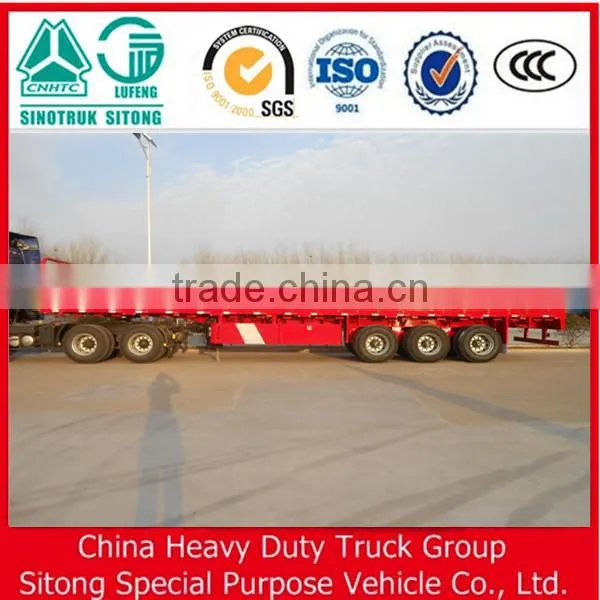

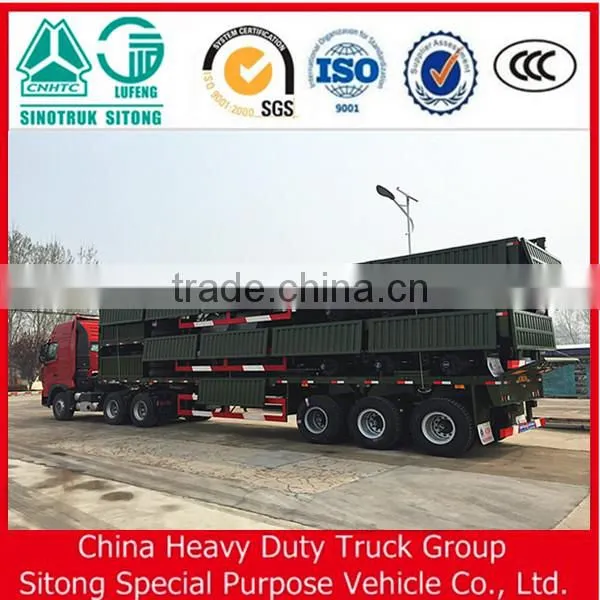

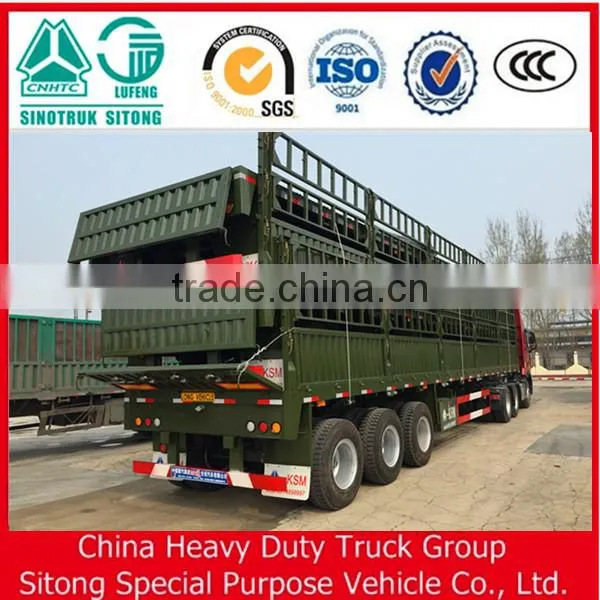

Help CenterJinig Liangshan Trailer Factory Direct Sale Dropside Semi Trailer
Related Products
-
Quality Drop Side Wall Semi Trailer/container Load Side Door Semi TrailerUS$ 6,800 - 6,800MOQ: 3 Sets -
Side Wall / Dropside Cargo Transport Semi Trailer With Twist LocksUS$ 6,800 - 6,800MOQ: 3 Sets
-
3 Axle Flatbed Side Wall Semi Truck Trailer and 6x4 Sinotruk Tractor Truck TrailerUS$ 6,800 - 6,800MOQ: 10 Sets
-
Light Weight 3 Axles Side Board Open Trailer Dimensions/side Wall Semi TrailerUS$ 6,800 - 6,800MOQ: 3 Sets
-
3 Axles Truck Semi Trailer 20t 30t 40t Side Wall Trailer Dropside Semi TrailerUS$ 8,000 - 20,000MOQ: 1 Set
Product information
Item |
Drop side semi trailer |
Tare Weight |
4500kg--8000kg |
Loading Capacity |
30T--60T |
Axle Weight Load |
13T/16T |
Axle number |
Two or Three |
Axle specs |
FUWA or BPW Brand |
Suspension |
Common mechanical |
Wheel |
11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand |
King Pin |
JOST 2.0" or 3.5" traction pin |
Dimensions |
12450×2500×1490mm,13000*2490*1450/1575/2770mm |
Support legs |
28Tons (Tongyada Brand)/Jost D200T |
Rim |
8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand |
Wheelbase |
5980+1300/6680/6260+1310+1310mm |
Steel Spring |
10/10/10 pieces per axles |
Number of Tire |
can be choose freely |
Spare Tire Carriers |
2/4 pieces |
The material of |
The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm, middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm |
Side board |
The height is from 600-1500mm |
Platform plate |
3mm Diamond Plate |
Brake |
Kemi Brand of China |
Brake Chamber |
Four double and two single chamber( TKL brand ) |
Related product
Certifications
Company information
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
Company honor

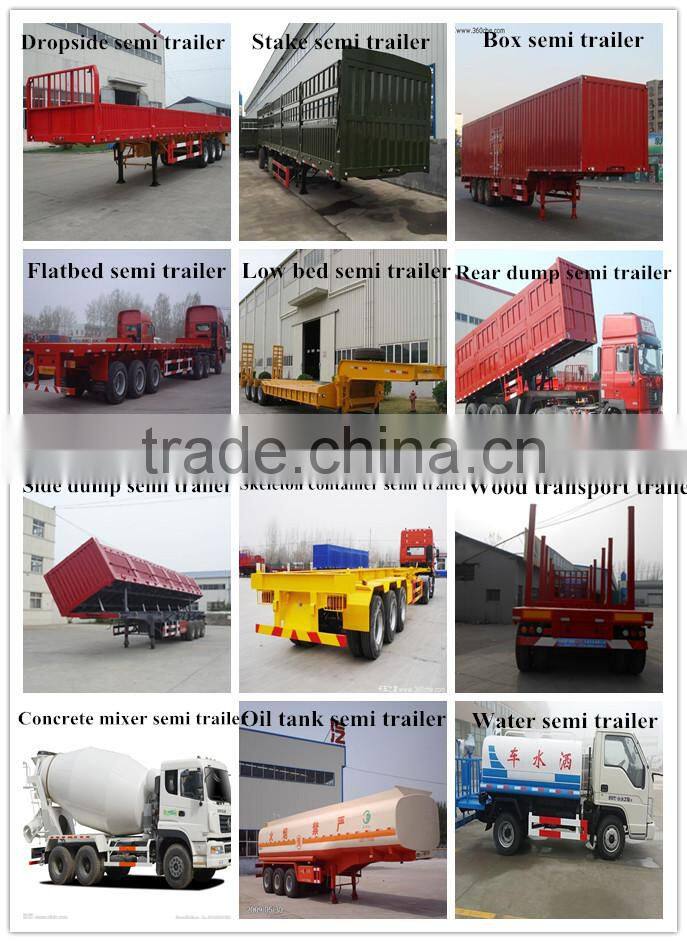

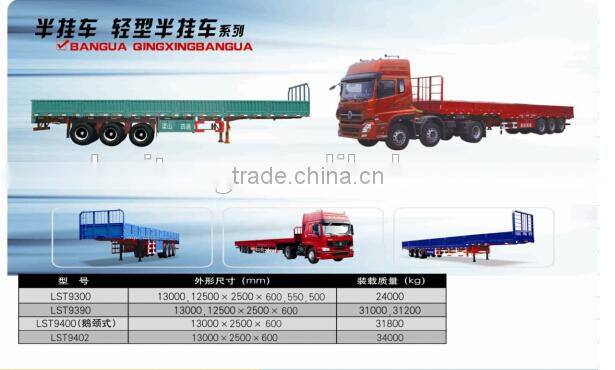

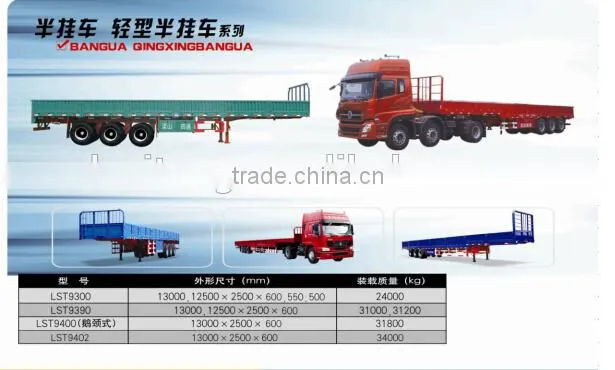

Product line
After-sale service
