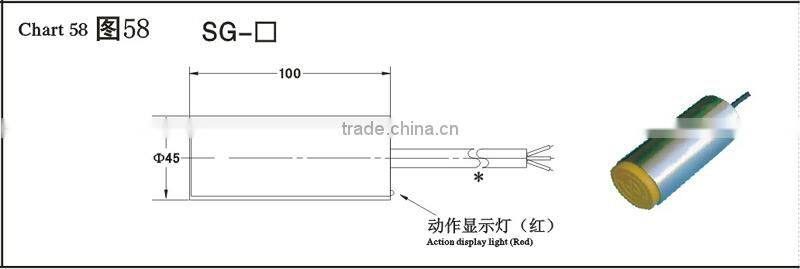

M30 SG-2020B Unshielded DC SCR NC contact Detection Distance 25mm ABS General Cylindrical Inductive Proximity Switch Sensor
Proximity switch also called proximity sensors . Sensor can devided into inductive type , capacitive type , simulative type , hall type, magnetic type . Sensor can support using of PLC programmable controller ,SMC , Sr circuit ,Electronic counters, Solid-state relay ,Small relays and other products .
Capacitive proximity switch are composed by High frequency concussion and amplification. Sensor detection surface and between the earth from a capacitor participate Oscillation circuit work , starting at the stop vibration state . When the object near the surface , the Circuit capacity changes , is the Oscillation of high-frequency oscillator . The two states of Oscillator-Oscillations and stopping vibration , Converted to electrical signals through the shaping amplifier switch into binary signals .
Simulative sensor (also known as the linear displacement sensor ),when the metal object close to the detection surface . With the change of the distance , then output the signal which have linear relationship changes with the distance ,So as to achieve the purpose of monitoring .
Hall sensor is kind of proximity sensor which inside with Hall IC.Using Hall effection convert magnetic signal on or off into switch capacity . Widely used in signal detection , automatic control and safety protection .
Magnetic sensor are composed by reed tube and amplification. When the external magnetic field near the magnetic reed sensor to force the action , and then amplified by the amplifier , increasing the switching capacity , in order to realize the on-off control of external circuits .
| Detection Distance 20mm+/-10% | ||||
| Unshielded | AC | NPN | NO | SG-3020A |
| NC | SG-3020B | |||
| NO+NC | SG-3020AB | |||
| PNP | NO | SG-3020C | ||
| NC | SG-3020D | |||
| NO+NC | SG-3020CD | |||
| Two-wire | NO | SG-3020AL | ||
| NC | SG-3020BL | |||
| DC | SCR(controlled silicon ) | NO | SG-2020A | |
| NC | SG-2020A | |||
| NO+NC | SG-2020AB | |||
| relay output | ||||
| output current | DC | 200mA | ||
| SCR/relay | 300mA/1A | |||
| Voltage output | DC(NPN,PNP)type < 3V ,two-wire:<3.9V,AC 10V | |||
| Current Consumption | DC(NPN,PNP)type DC 12V 8mA,24V 15mA,AC 10mA | |||
| Standard Detection Object | 78×78×1(A3 Iron) | |||
| Response Frequency | 100Hz/20Hz | |||
| Ambient Temperature | -25℃ ~+75℃ | |||
| Insulation Resistance | 50MΩ | |||
| Material | ABS | |||
| Protection Grade | IP67 | |||
