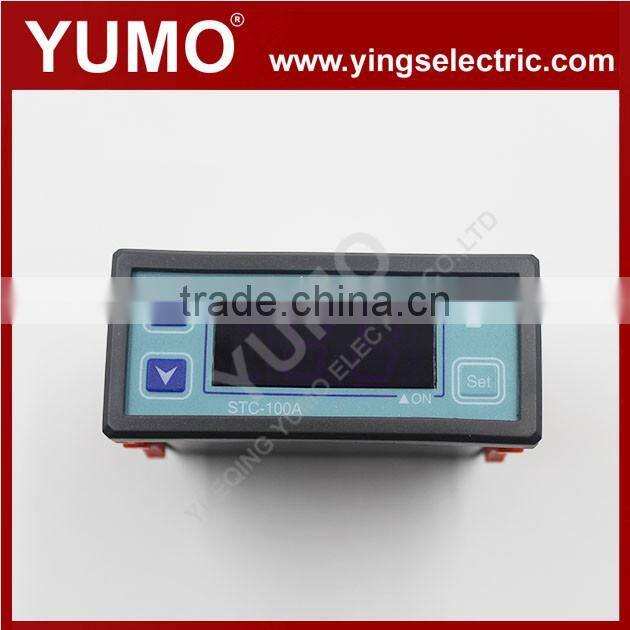

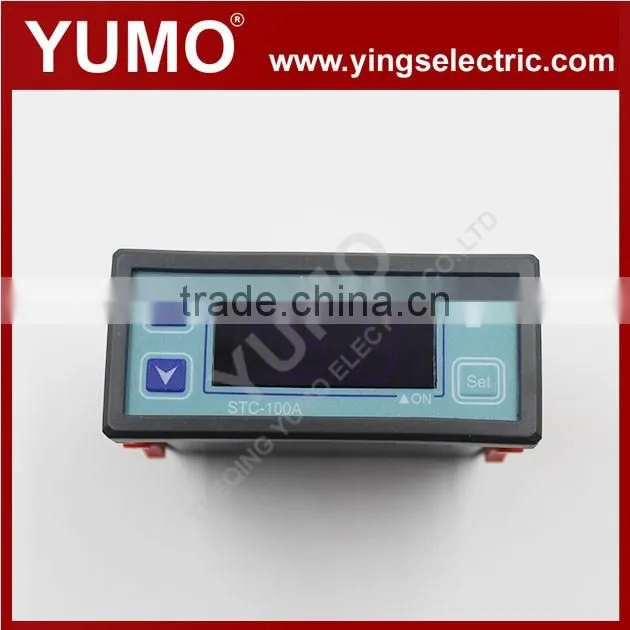

STC-100A Temperature controller STC-100A Heating thermostat
Product Overview:
The refrigerator temperature controller is suitable for all kinds of cold storage, refrigerator, water chiller, seafood machine, small heating equipments etc.
Features:
1. Refrigerating, heating output mode optional
2. Return difference to control temperature
3. Temperature upper and lower limits setting, in order to avoid disoperation by non-professionals.
4. Compressor delay protection.
Main Function:
Refrigeration,heating,1NTC,Temperature Calibration
Parameter:
1. Power supply: 220VAC+10%/-15%, 50/60HZ
2. Temperature measuring range: -40~+99°C
3. Temperature controlling range: -40~+99°C
4. Resolution: 1
5. Accuracy: ±1°C±0.5digit
6. Compressor output contact capacity: 10A (0.5HP)/220VAC
7. Sensor type: NTC, 2M
8. Operating temperature: 0°C~+60°C
9. Storage temperature: -300°C~+75°C
10. Relative humidity: +20%~+85%(No condensate)
11. Shell: gray ABS flame retardant material
12. Safety level: IP54 (front panel)
Specifications:
Mounting size: 71(W) * 29(H) (mm)
Product size: 77.0(W) * 34.5(H) * 62(D) (mm)
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
