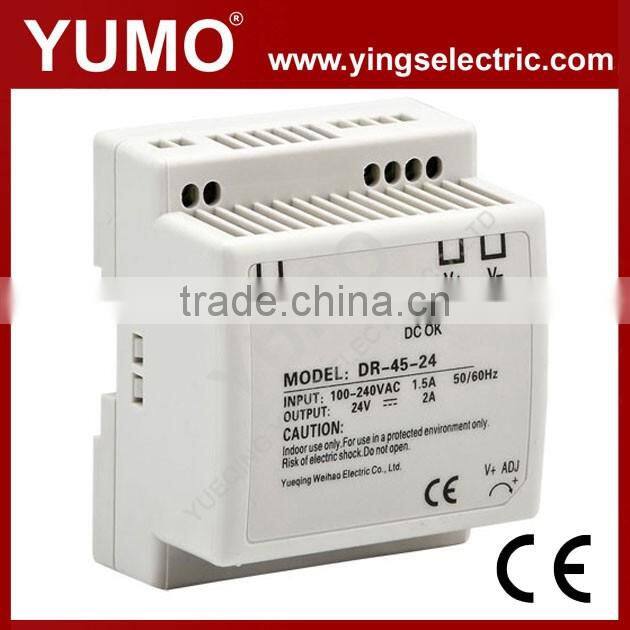

YUMO Din Rail DR-45-24 45w Din Rail Power Supply Switching Power Supply

YUMO Din Rail DR-45-24 45w Din Rail Power Supply Switching Power Supply thumbnail-1
YUMO Din Rail DR-45-24 45w Din Rail Power Supply Switching Power Supply photo-1
US$ 16 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
DR-45-24
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number DR-45-24
Output Power 1 - 50W
Output Type Single
Input Voltage Other, 100-240VAC
Output Voltage 24V
Output Frequency 50-60Hz
Output Current 2A

YUMO Din Rail DR-45-24 45w din rail power supply Switching power supply





Product Description



YUMO Din Rail DR-45-24 45w din rail power supply Switching power supply
YUMO Din Rail DR-45-24 din rail power supply Switching power supply YUMO Din Rail DR-45-24 din rail power supply Switching power supply YUMO Din Rail DR-45-24 din rail power supply Switching power supply YUMO Din Rail DR-45-24 din rail power supply Switching power supply



DR-45 Guide rail type switch power supply

Features:
For AC power supply input global
Protection characteristics: short circuit/overload/pressure
Air cooling

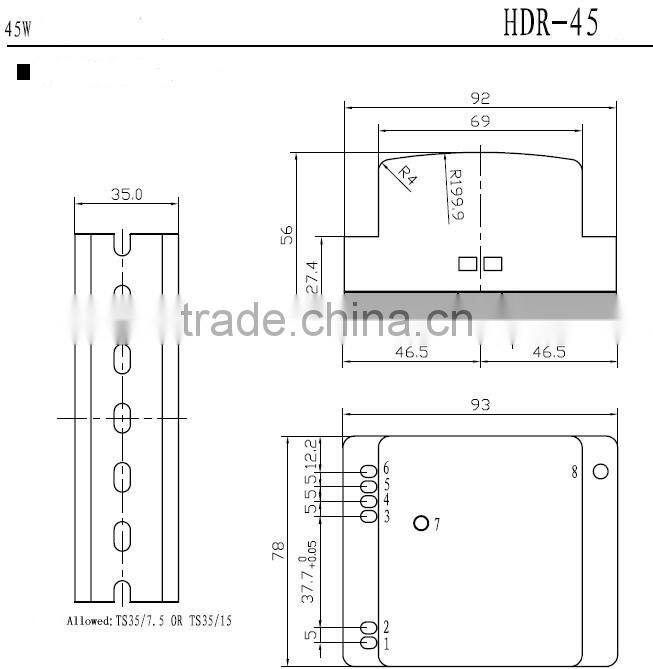

Can be installed DIN standards guide TS-35/7.5 or 15
Has the boot display (light emitting diode (led)
100% full load and machine test




model

DR-45-5

DR-45-12

DR-45-15

HDR-45-24

output

Dc output voltage

5V

12V

15V

24V

Output voltage tolerance

±2%

±1%

±1%

±1%

Rated output current

5A

3.5A

2.8A

2A

Output current range

0-5A

0-3.5A

0-2.8A

0-2A

Output power

25W

42W

42W

48W

Ripple and the noise

100mVp-p

200mVp-p

240mVp-p

480mVp-p

Dc voltage adjustable scope

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

Start, rise, keep time

800ms,60ms,100ms/230VAC Loaded with

input

Input voltage range

85~264 VAC47~63 Hz;choose 120~370VDC

Exchange input current

1.5 A/115 V 0.75A/ 230 V

efficiency

72%

77%

77%

80%

Impulse current

Cold start current 28A/115V 56A/230V

Leakage current

<1mA/240VAC

Protection characteristics

Overload protection

105%~150%

Protection way: constant current limiting automatic recovery

Overvoltage protection

115%~135%

Protection way: cut output, restart

High temperature protection

Power tube to 135 ℃, the temperature drop, cut off output automatically after recovery



environment

Working temperature, humidity

-10℃~+50℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

security

Compression sex

3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC

Insulation resistance

Between the input and output, the input and output, and ground: 100M Ohms / 500VDC

Complies with the standards

Safety standards

Accord with UL508,TUV EN60950-1

EMC standard

Accord with EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2

other

weight

0.31Kg

packaging

48pcs/16.1Kg/1.3CUFT

note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.



environment

Working temperature, humidity

-10℃~+50℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

security

Compression sex

3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC

Insulation resistance

Between the input and output, the input and output, and ground: 100M Ohms / 500VDC

Complies with the standards

Safety standards

Accord with UL508,TUV EN60950-1

EMC standard

Accord with EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2

other

weight

0.31Kg

packaging

48pcs/16.1Kg/1.3CUFT

note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
