Single Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power Supply
Features:
- AC input range selectable by switch
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35 / 7.5 or 15
- UL 508 (industrial control equipment) approved
- LED indicator for power on
- 100% full load burn-in test
- Fix switching frequency at 55KHz
- 3 years warranty
Certificate: CUL UL TUV CE CB EMC | ||||
MODEL | DR-120-12 | DR-120-24 | DR-120-48 | |
OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
RATED CURRENT | 10A | 5A | 2.5A | |
CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | |
RATED POWER | 120W | 120W | 120W | |
RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 120mVp-p | |
VOLTAGE ADJ. RANGE | 12 ~ 14V | 24 ~ 28V | 48 ~ 53V | |
VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
SETUP, RISE TIME | 500ms, 70ms/230VAC 500ms, 70ms/115VAC at full load | |||
HOLD UP TIME (Typ.) | 36ms/230VAC 32ms/115VAC at full load | |||
INPUT | VOLTAGE RANGE | 88 ~ 132VAC/176 ~ 264VAC by switch 248 ~ 370VDC | ||
FREQUENCY RANGE | 47 ~ 63Hz | |||
EFFICIENCY (Typ.) | 80% | 84% | 85% | |
AC CURRENT (Typ.) | 2.6A/115VAC 1.6A/230VAC | |||
INRUSH CURRENT (Typ.) | COLD START 20A/115VAC 40A/230VAC | |||
LEAKAGE CURRENT | <3.5mA / 240VAC | |||
PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
OVER VOLTAGE | 15 ~ 16.5V | 29 ~ 34V | 58 ~ 65V | |
Protection type : Shut down o/p voltage, re-power on to recover | ||||
OVER TEMPERATURE | 85°C ± 5°C (TSW1) | 90°C ± 5°C (TSW1) | 90°C ± 5°C (TSW1) | |
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to "Derating Curve") | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH | |||
TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||
SAFETY & EMC (Note 4) | SAFETY STANDARDS | UL508, UL60950-1, TUV EN60950-1 approved | ||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH | |||
EMC EMISSION | Compliance to EN55011,EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A | |||
OTHERS | MTBF | 136.8K hrs min. MIL-HDBK-217F (25°C ) | ||
DIMENSION | 65.5*125.2*100mm (W*H*D) | |||
PACKING | 0.79Kg; 20pcs/16.5Kg/1.29CUFT | |||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||
3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||

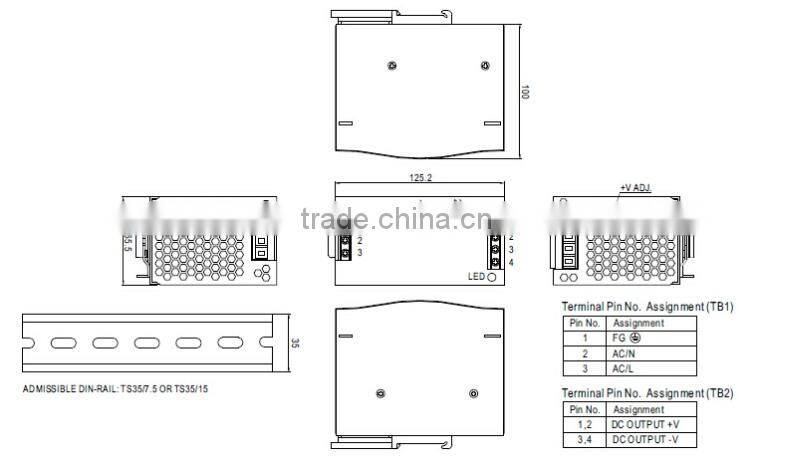

3. Drawing:
Single Output Industrial DIN Rail Power Supply DSingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplySingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplySingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplySingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplySingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplySingle Output Industrial DIN Rail Power Supply DR-120-24 120W 5VDC 12VDC 24VDC Switching Power SupplyR-120-24 120W 5VDC 12VDC 24VDC Switching Power Supply
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
