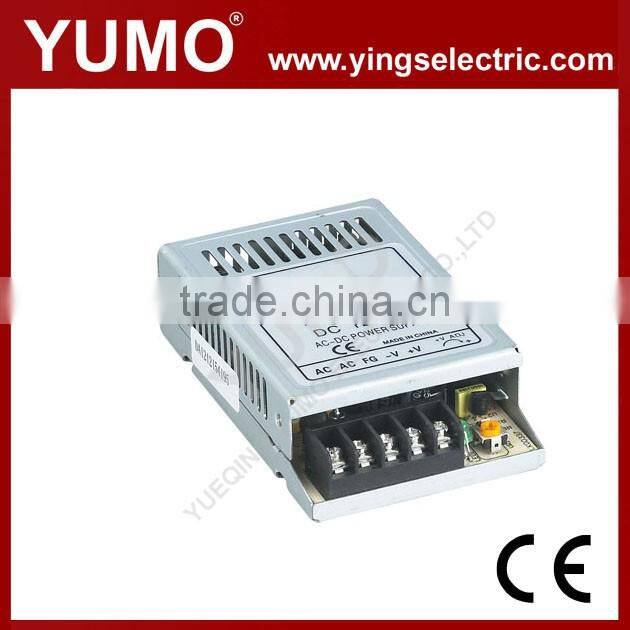

YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini Size Series SMPS LED Switch Mode Power Supply
YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply
Specifications:
high frequency electroplating power supply
1.RoHS CE approved
2.High quality
3.low price
4.2 years warranty
high frequency electroplating power supply
General Features:
MODEL | MSF20-5 | MSF20-12 | MSF20-24 |
DC VOLTAGE | 5V | 12V | 24V |
RATED CURRENT | 4A | 2A | 0.85A |
CURRENT RANGE | 0 ~ 2A | 0 ~ 0.83A | 0 ~ 0.42A |
RATED POWER | 20W | 20W | 20W |
RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 100mVp-p |
VOLTAGE ADJ.RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 21.6 ~ 26.4V |
VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% |
LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% |
SETUP, RISE, HOLD TIME | 200ms, 100ms, 30ms at full load | ||
VOLTAGE RANGE | 85 ~ 264VAC | ||
FREQUENCY RANGE | 47 ~ 63Hz | ||
EFFICIENCY (Typ.) | 65% | 68% | 72% |
AC CURRENT | 0.5A/115VAC 0.25A/230VAC | ||
INRUSH CURRENT (max.) | COLD START 15A/115VAC 30A/230VAC | ||
LEAKAGE CURRENT | <0.5mA/240VAC | ||
OVERLOAD | 105 ~ 135% rated output power | ||
Protection type : Constant current limiting, recovers automatically after fault condition is reoved | |||
WORKING TEMP. | -10 ~ +60ºC (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
STORAGE TEMP., HUMIDITY | -20 ~ +85ºC , 10 ~ 95% RH | ||
TEMP. COEFFICIENT | ±0.02%/ºC (0 ~ 50ºC) | ||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
SAFETY STANDARDS | Design refer to UL1012 | ||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||
EMI CONDUCTION & RADIATION | Design refer to FCC Part15 J Conduction Class B | ||
MTBF | 522.1K hrs min. MIL-HDBK-217F (25ºC) | ||
DIMENSION | 97*58*25mm (L*W*H) | ||
YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED
Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20 5VDC 12VDC 24VDC 20W Mini size series SMPS LED Switch Mode Power Supply YUMO MSF-20
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
