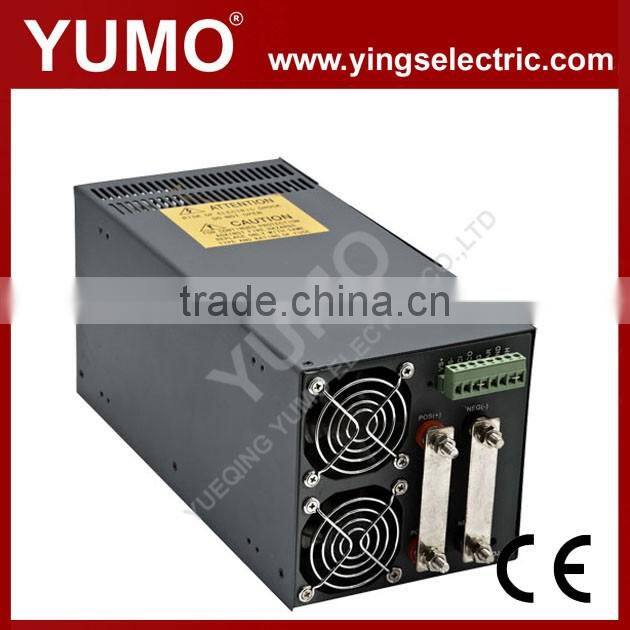

YUMO SCN-1200 1200W 5/12/24/48V Single Output High Efficiency Power Supply Switching Power Supply

Yueqing Yings Import & Export Co., Ltd.
YUMO SCN-1200 1200W 5/12/24/48V Single Output High Efficiency Power Supply Switching Power Supply thumbnail-1
YUMO SCN-1200 1200W 5/12/24/48V Single Output High Efficiency Power Supply Switching Power Supply photo-1
US$ 200 - 210 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
SCN-1200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number SCN-1200
Output Power Other, 900-1200W
Output Type Single
Input Voltage Other, 85-267VAC
Output Voltage 12-27V
Output Frequency 37KHz
Output Current 24-180A

 YUMO SCN-1200 1200W 5/12/24/48V Single output High efficiency power supply Switching Power Supply



Product Description



Features:
High reliability, low ripple
Exchange the input voltage AC200 ~ 260 V
Protection characteristics: short circuit/overload/pressure/thermal
Built-in distance open/shutdown and voltage compensation signal interface
Has the parallel function
By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value
Built-in dc electric fan forced air cooling
One year warranty
Size : 291*132*132mm (L*W*H)




model

SCN-1200-05

SCN-1200-12

SCN-1200-15

SCN-1200-24

SCN-1200-48

output

Dc output voltage

5V

12V

15V

24V

48V

Output voltage tolerance

±2.5%

±1%

±1%

±1%

±1%

Rated output current

180A

100A

80A

50A

24A

Output current range

0-180A

0-100A

0-80A

0-50A

0-24A

Output power

900W

1200W

1200W

1200W

1200W

Ripple and the noise

100mVp-p

120mVp-p

150mVp-p

240mVp-p

480mVp-p

Dc voltage adjustable scope

+ 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value

Start, rise, keep time

800ms, 50ms, 16ms  Loaded with

input

Input voltage range

200~260 VAC47~63 Hz; 290~370VDC

Exchange input current

11A/ 230 VAC

efficiency

77%

83%

85%

85%

87%

Impulse current

120A/230V

Leakage current

3.5 mA/240VAC

Protection characteristics

Overload protection

101%~115%

110%~135%

Protection way: current limiting, delay shut off, restart

Overvoltage protection

110%~135%

Protection way: cut output, restart

High temperature protection

TSW1 (power tube) temperature > 100 ℃, restart when cut off output

environment

Working temperature, humidity

-10℃~+65℃,20%~90 %RH

Keep temperature, humidity

-20℃~+85℃,10%~95 %RH

Vibrate resistance

10 ~ 200 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis

security

Compression sex

I/P-O/P, I/P-FG:1500VAC

Insulation resistance

I/P-O/P, I/P-FG, >100M Ohms / 500VDC

Standards

Safety standards

Accord with
  UL1950,CSA22.2,IEC60950

EMC standard

Accord with
  FCC Part 15 Class A

Other

weight

4.5Kg;

packaging

4pcs/20kg/CARTON

note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
