Specifications

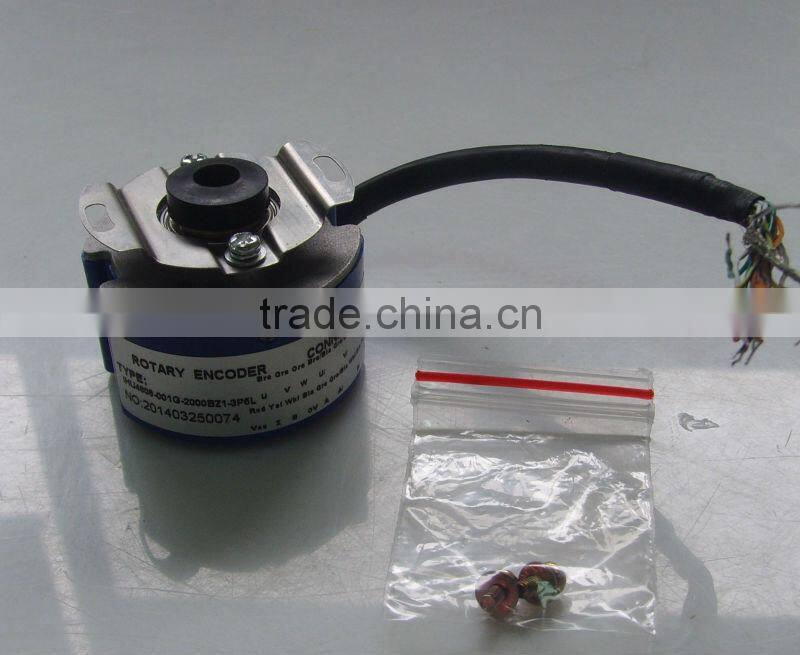

IHU4808-001G-2000BZ1-3P5LYUMO rotary encoder1.easy to use
2.in hot sale
3.high quality
petitive price

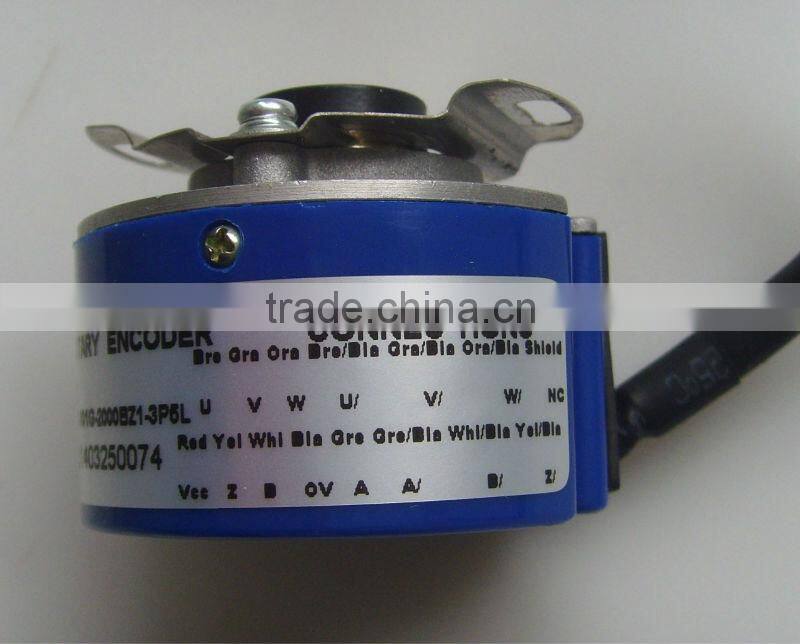

The output waveform A B Z U V M six phase
Or less consumption current 120 ma
Response frequency 0 ~ 200 KHZ
Empty than 0.5 T - 0.1 T
The phase difference of 90 ° plus or minus 45 °
Power supply voltage DC5V, DC5-12 v, DC12-24 VDC 5-24 v
High level output voltage VH acuity 85% Vcc, low-level VL is 0.3 V or less
Pulse number 1000, 1024, 2048 (2 p, 3 p, 4 p), 2000 (2 p, 3 p, 4 p, 6 p), 2500 (2 p, 3 p, 4 p, 5 p, 6 p) (the rest of the pulse number users need to reservation)
Circuit characteristics of L - long drive C - open collector
* * * mechanical parameters
Maximum speed 6000 RPM
Moment of inertia of 4 x10-6 kg
Starting torque X10m 2.5-3 Nm (+ 25 °C)
Shock of 980 m/Sm2, 6 ms, XYZ direction by two times
Shock resistant to 50 m/S2, 10-200 hz, XYZ direction every 2 h
Working life MTBF acuity 50000 h (2000 RPM) + 25 °C,
Weight is about 0.15 Kg (with 0.35 m cable)
Important Information about Encoder Conditions
1. All of the encoders are brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by Western Union,TT,PayPal.
-Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The encoders are guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
