HKT22 Series 22mm Optical Price Incremental Rotary Encoder Motor Encoder

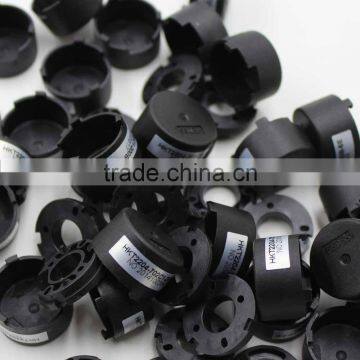

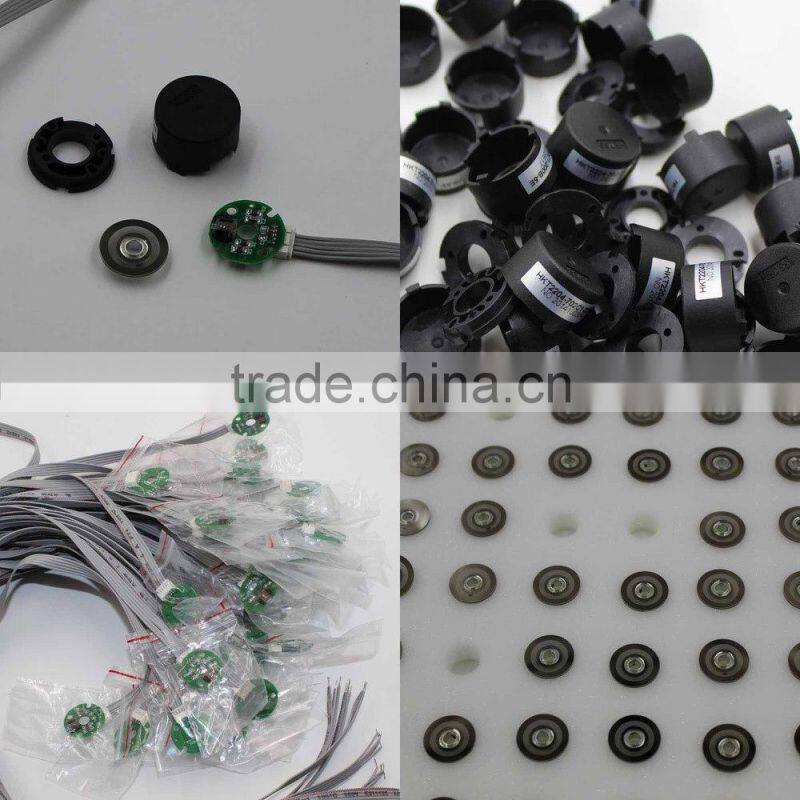

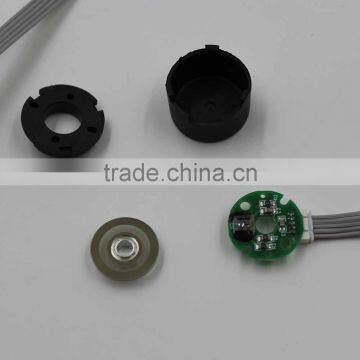

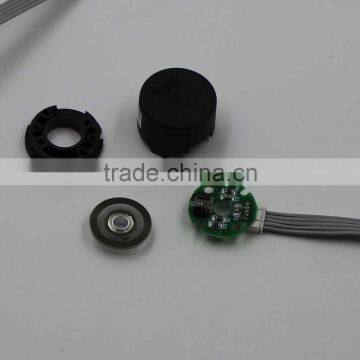

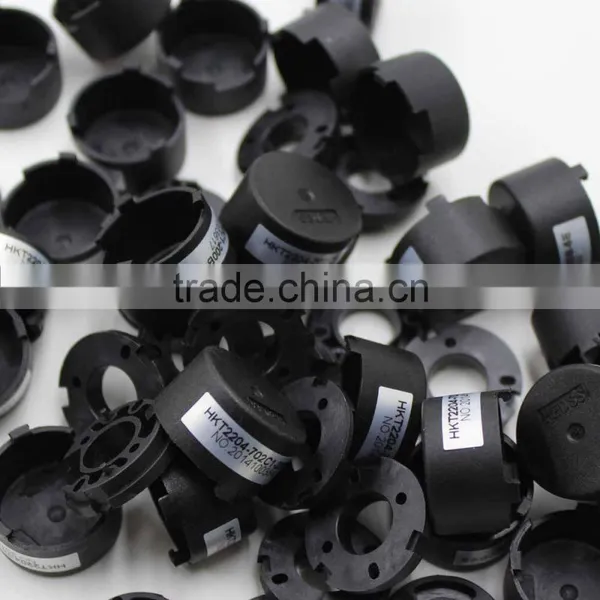

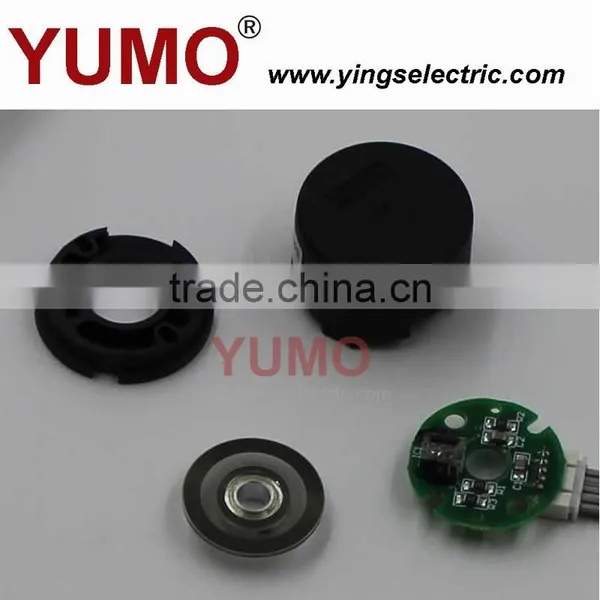

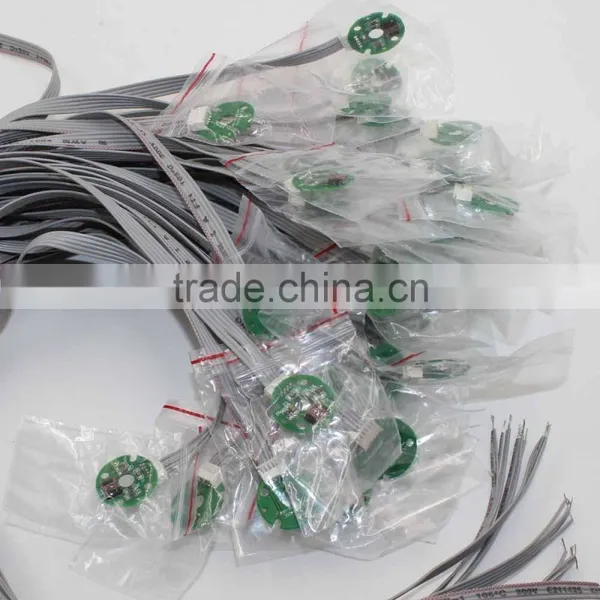

HKT22 series 22mm Motor Encoder  (rotary encoder)

HKT22 series 22mm Motor Encoder  (rotary encoder)

Output wave: Square wave
Output signals: AB phase
Current consumption: ≤35mA
Output current: 2~12mA
Response Frequency: 0~30kHz
Output phase difference: 90°±45°
Supply voltage: 5V DC
Output voltage: -0.5V~Vcc
Signal level: VH ≥85%Vcc, VL ≤0.3V
Number of pulses: 100, 200, 256 (Other number of pulse available on request)
Output circuit: Voltage
Rotor inertia of code-wheel: Appraisal 4.0x10-8kgm2
Hollow shaft diameter: Φ4mm (Other diameter on request)
Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
Working life: MTBF ≥50000h (+25°C, 2000rpm)
Weight: Appraisal 10g (with 0.5 meter cable)
Working humidity: 30~85% (No condensation)
Storage temperature: -40°C~85°C
Working temperature: -10°C~85°C
Protection class: IP40

  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder  HKT22 series 22mm optical price incremental rotary encoder Motor Encoder

About order

Important Information about Encoder Conditions

1. All of the  encoder are brand new, top quality components: absolutely no used items or counterfeits.

2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.

3. Prices, specifications, and availability of all items are subject to change without notice.

4. We are not responsible for typographical errors.

Payment Terms

- We accept payments made by Western Union,TT,PayPal.

-Since you made the payment successfully, you can send us the Reference NO or MTCN.

Shipping

1.We will ship the items within 5 working days after the payment is reached.

2.We ship to you by Express.

3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4.Any import fees or charges are the buyer's responsibility.

Warranty

Warranty is available based on the following points:

1.The encoder guaranteed for one year.

2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t   o manufacturers specifications, simply return them to us for replacement or refund.

3.If the items is defective, please notify us within 3 days of delivery.

4.Any items must be returned in their original condition to qualify for a refund or replacement.

5.The buyer is responsible for all the return shipping cost incurred.
