YUMO LFS-03 5mbar 2500mbar Pressure control switch electronic water pump pressure control switch Pressure sensor
- 50000 Piece / Pieces per Month
- Shanghai / Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | LFS-03 |
Max. Current: | 2.5A | Max. Voltage: | 250AC | Max. Working Pressure: | 2500mBar |
Product Description
LFS-03 YUMO 100mbar Pressure control switch electronic water pump pressure control switch Pressure sensor
LFS-03 Pressure control switch
LFS-03 can be is applied to both pressure (15~2500mbar) and vacuum ( -600 to -15 mbar). Impact size, low cost
LFS-03 can be is applied to detection positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed. The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.
Model | LFS-03 |
Electrical Function | 1 pole NO |
Switch Rating | 1 pole NO: |
Temperature | Ambient: -10 to +85 |
Electrical Connections | Tab terminals 6.4 x 0.8 mm |
Pressure Range | Pressure: +15 to +2500 mbar |
Sample Line Connections | Pressure and vacuum: Inlet 4.0 or 5.5 mm (up to 500 mbar) |
Switch hysteresis | Almost no hysteresis |
Max. working pressure | 3000 mbar |
Medium | Non hazardous gas only |
Fixing Methods | Plastics clips (version with inlet only) |
Materials | Lower body: PA 66 |
Upper body: PA 66 | |
Adjust. screw: PA 66 | |
Contact carrying parts: Brass Silver plated (gold plating on request) |

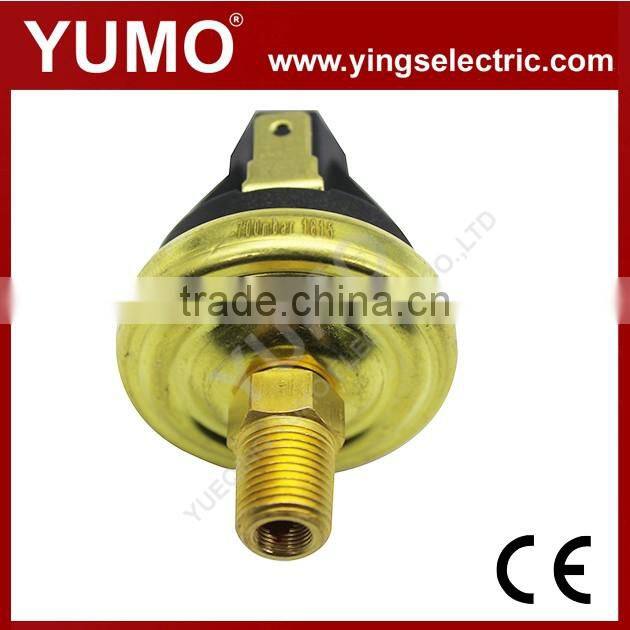

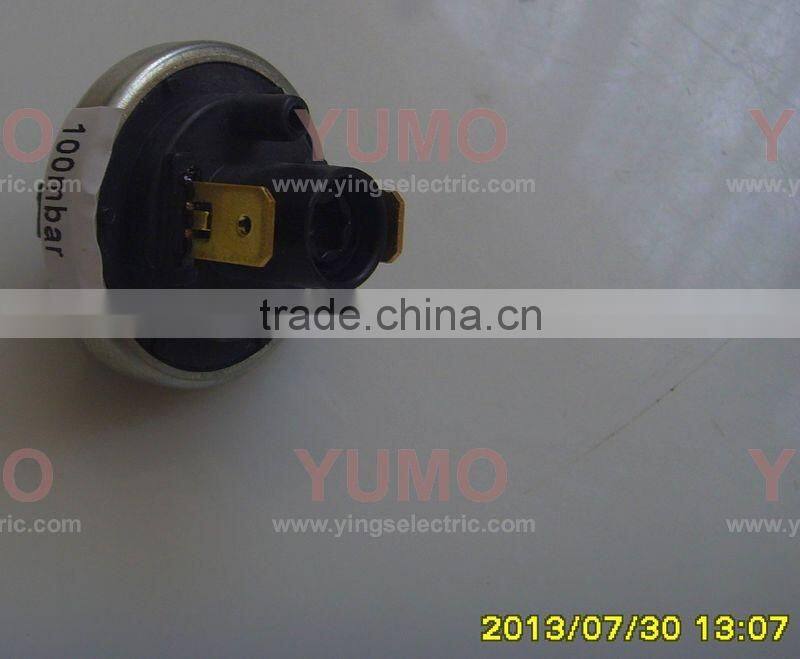

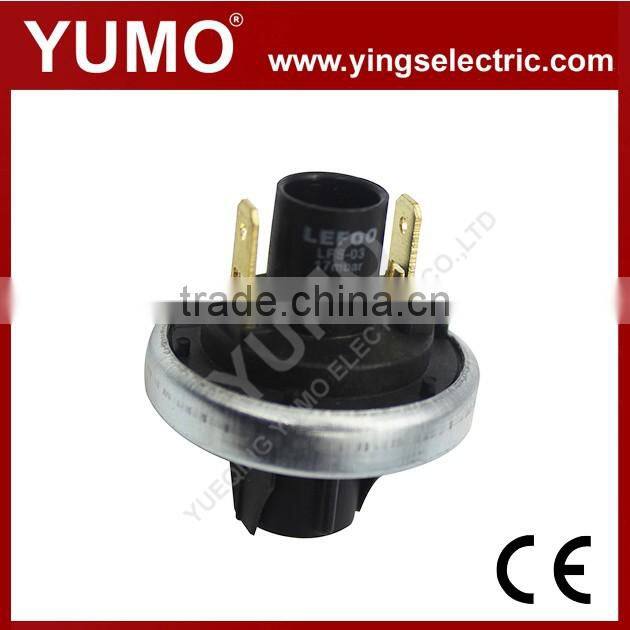

Photos of the product:
LFS-03 YUMO 100mbar Pressure control switch electronic water pump pressure control switch Pressure sensor LFS-03 YUMO 100mbar Pressure control switch electronic water pump pressure control switch Pressure sensor LFS-03 YUMO 1 Pressure switch is a simple pressure control device, when the measured pressure reaches the rated pressure switch alarm or control signal is issued. Pressure switch works is: When the measured pressure exceeds the rating, the free end of the elastic element is displaced, after pushing the switch element comparison directly or change-off state of the switching elements to control the measured pressure purposes. Elastic element pressure switch uses a single coil spring tube, diaphragm, bellows and bellows. Switching element magnetic switches, mercury switches, micro-switches and the like. Switch type pressure switches are normally open and normally closed two. Accuracy: indicates the precise extent of the value of equipment, including linearity, tolerances, hysteresis, and repeatability. Nagano is currently the most accurate up to a pressure switch ± 0.5% FS, Model CB33. The maximum pressure (Max.P): the maximum pressure range. Full scale (FS): the pressure difference between the maximum and minimum range. Take-off difference (dead zone): refers to switch the action value and reset value of the difference between, for example, when setting the value 1MPa, actual reset value 0.9MPa, the pick-off difference is 0.1MPa. 00mbar Pressure control switch electronic water pump pressure control switch Pressure sensor.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
