AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller
| Performance&Features | |
| This model is a DC power supply, with 6 point DC input (analog), 4 point relay output | |
| Exquisite and compact design | |
| Multi-functional, easy operating, convenient, easy learning | |
| Technical Index | |
| Operation temperature: :-20℃-70℃ | Timers :127 |
| Storage/Transportation -40℃-70℃ | Counters :127 |
| Protection:IP20 | Function blocks : 127 |
| Interference Regulation: EN55011(B Class) | RTC time intervals:127 |
| RTC accuracy: MAX ±5S/day | Storage capacity:64K |
| Certificate:CE | Insulation Intensity: IEC1131 |

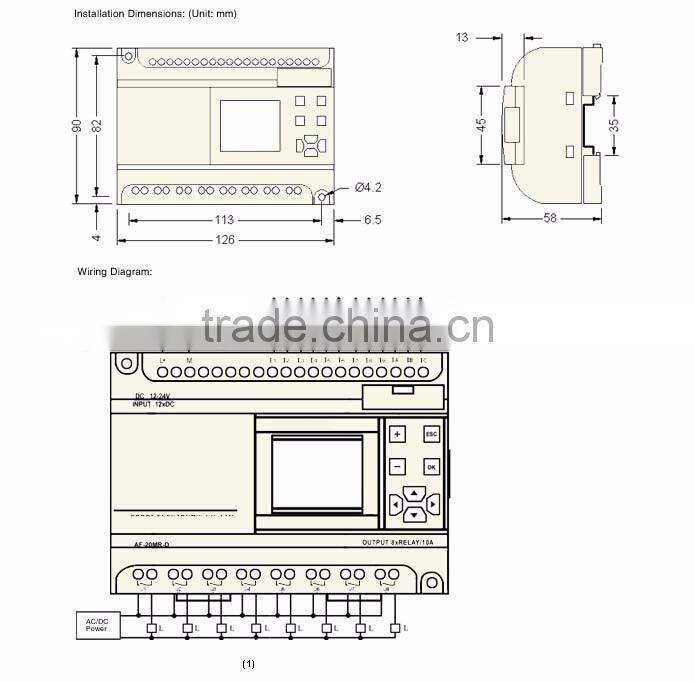

| Installation: Use a standard DIN rail or screw for installation | Dimensions:90*126*58(Unit:mm ) |
| Power supply | |
| Rated voltage:DC12/24V | Main voltage operation range: AC10-28V |
| DC24V consumption: Typical 200mA | (Output full-load):Typical 5W |

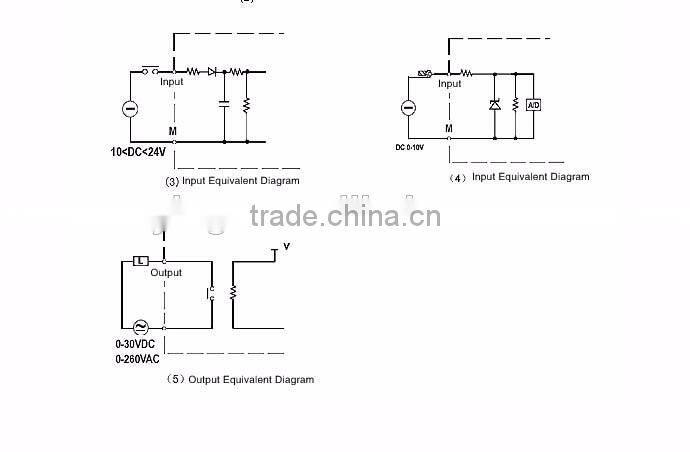

| Digital input | |
| Signal 0:DC 0-5V | Input current:<0.4mA |
| Signal 1:DC 10-24V | Input current:<1mA |
| Analogue input | |
| Signal 1:0-10V | Input current:<0.3mA |
| Outputs(Digital output) | |
| Output type: Relay output | Wiring insulation: Yes |
| Points per set:1 | Continuous current max value:MAX 10A |
| Switch frequency | |
| Mechanism: 10Hz | Resistor load: 2Hz |
| Inductive load: 0.5Hz | |
| Item | Code | Description |
| 1 | AF-10MR-A(with LCD) | 85V-240VAC, 6 points AC input 4 points relay output |
| 2 | AF-10MR-A(without LCD) | 85V-240VAC, 6 points AC input 4 points relay output |
| 3 | AF-10MR-D(with LCD) | DC12/24V, 6points DC input 4 points (with analog input) relay output |
| 4 | AF-10MR-D(without LCD) | DC12/24V, 6points DC input 4 points (with analog input) relay output |
| 5 | AF-10MR-E(with LCD) | DC12/24V, 6 points DC input 4 points relay output |
| 6 | AF-10MR-E(without LCD) | DC12/24V, 6 points DC input 4 points relay output |
| 7 | AF-10MT-D(with LCD) | DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN) |
| 8 | AF-10MT-D(without LCD) | DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN) |
| 9 | AF-10MT-GD(with LCD) | DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP) |
| 10 | AF-10MT-GD(without LCD) | DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP) |
| 11 | AF-10MT-E(with LCD) | DC12/24V,6 points DC input 4 points electronic transistor output |
| 12 | AF-10MT-E(without LCD) | DC12/24V,6 points DC input 4 points electronic transistor output |
| 13 | AF-20MR-A(with LCD) | 85V-240VAC ,12 points AC input 8 points relay output |
| 14 | AF-20MR-A(without LCD) | 85V-240VAC ,12 points AC input 8 points relay output |
| 15 | AF-20MR-D(with LCD) | DC12/24V,12 points DC input 8 points (with analog input) relay output |
| 16 | AF-20MR-D(without LCD) | DC12/24V,12 points DC input 8 points (with analog input) relay output |
| 17 | AF-20MR-E(with LCD) | DC12/24V ,12 points DC input 8 points relay output (without analog input) |
| 18 | AF-20MR-E(without LCD) | DC12/24V ,12 points DC input 8 points relay output (without analog input) |
| 19 | AF-20MT-E(with LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent NPN) |
| 20 | AF-20MT-E(without LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent NPN) |
| 21 | AF-20MT-D(with LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent NPN) |
| 22 | AF-20MT-D(without LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent NPN) |
| 23 | AF-20MT-GD(with LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent PNP) |
| 24 | AF-20MT-GD(without LCD) | DC12/24V,12points DC input 8 points transistor output(exuivalent PNP) |
| 25 | AF-C232 | Cable for FAB and PC Modem for programming |
| 26 | AF-C485 | Interface between 485bus and FAB for network monitor |
| 27 | AF-CMP | The cable connect to the telephone module port "TO PC' |
| 28 | AF-COPY | Copy module |
| 29 | AF-D232 | the cable connecting FAB and PC (frontispiece plug type) |
| 30 | AF-MUL-D | Voice module to realize voice function(DC POWER) |
| 31 | AF-DUSB | the interface between FAB and PC USB port (frontispiece plug type) |
| 32 | AF-LCD | Removable LCD clip in screen for easy programming |
| 33 | AF-M232 | Interface between FAB and MODEM for remote control and programming |
| 34 | AF-MUL | Voice module to realize voice function(AC POWER) |
| 35 | AF-P485 | Interface between 485bus and PC for network function |
| 36 | AF-S485 | Interface is the connector between RS232 and RS485 (DIN installation). |
| 37 | AF(SR)-USB | USB/RS232 convertor (DIN installation) |
| 38 | SP-05AL | Input: 110/220VAC Output: Voltage :5VDC Current :14A Din rail type |
| 39 | SP-05AS | Input: 110/220VAC Output: Voltage :5VDC Current :7A Din rail type |
| 40 | SP-12AL | Input: 110/220VAC Output: Voltage :12VDC Current :6A Din rail type |
| 41 | SP-12AS | Input: 110/220VAC Output: Voltage :12VDC Current :3A Din rail type |
| 42 | SP-24AL | Input: 110/220VAC Output: Voltage :24VDC Current :3A Din rail type |
| 43 | SP-24AS | Input: 110/220VAC Output: Voltage :24VDC Current :1.5A Din rail type |
| 44 | SR-12MRAC | 100-240VAC 8 Points AC input, 4 points relay output |
| 45 | SR-12MRDC | DC12/24V 8 points DC input (with 6 points analog ) , 4 points relay output |
| 46 | SR-12MTDC | DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(NPN) |
| 47 | SR-12MGDC | DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(PNP) |
| 48 | SR-20ERA | 100-240VAC 12 AC input, 8 points relay output, 20 points extended module |
| 49 | SR-20ERD | DC12/24V 12 points DC input , 8 points relay output, 20 points extended module |
| 50 | SR-20ETD | DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (NPN) |
| 51 | SR-20EGD | DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (PNP) |
| 52 | SR-22MRAC | 100-240VAC 14 Points AC input, 8points relay output |
| 53 | SR-22MRDC | DC12/24V 14 points DC input (with 8 points analog ) , 8 points relay output |
| 54 | SR-22MTDC | DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(NPN) |
| 55 | SR-22MGDC | DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(PNP) |
| 56 | SR-AUD | The recording microphone and the wires between the sound card and the SR-VPA/SR-VPD |
| 57 | SR-CP | Programmable cable can edit,analog, monitor from PC to Super Relay |
| 58 | SR-EANT | Long connecting antenna of SR-RCA and SR-RCD |
| 59 | SR-ECBA | AC type, to remotely connect the machine and the extended module |
| 60 | SR-ECBD | DC type, to remotely connect the machine and the extended module |
| 61 | SR-EHC | Connection set of SR-HMI, remotely connect SR machine and SR-HMI 1.5m cable |
| 62 | SR-HMI-B | monitor operator panel |
| 63 | SR-LED | simple LED panel |
| 64 | SR-RCA | 100-240VAC remote control receiver module |
| 65 | SR-RCD | DC12/24V remote control receiver module |
| 66 | SR-TC | DC3V remote control emitter |
| 67 | SR-USB | USB/RS232 convertor (DIN installation) |
| 68 | SR-DUSB | the interface between SR and PC USB port (frontispiece plug type) |
| 69 | SR-VPA | 100-240VAC phone voice module |
| 70 | SR-VPD | DC12/24V phone voice module |
| 71 | SR-WRT | Programming panel |
| 72 | SR-TP | for connecting SR PLC with text panel SH-300 |
| 73 | SR-MC | MODBUS module |
| 74 | SR-MCA | MODBUS module |
| 75 | SR-MCD | MODBUS module |
| 76 | SH-300 | 4.3"STN - LCD Display screen DC12/24V |
| 77 | AR1520 | convert RS-232 signals into isolated RS-422 or RS-485 |
| 78 | AR1520U | Convert USB to RS-232/422/485 terminal |
| 79 | AR1521 | convert RS-232 signals into isolated RS-422 or RS-485 |
| 80 | AR1521U | Convert USB to RS-232/422/485 terminal |
| 81 | C2400 | Timer,counter,frequency meter,tachometer |
| 82 | software | PLC software CD |
AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini air conditioning air conditioning plc controller controller
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
YUEQING YUMO ELECTRIC CO.,LTD
ADD: NO.126 LIUYANG ROAD ,ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,
YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA
TEL:0086-577-62791815 Mobile:0086-13757779011
Sky-pe:benjaminying TradeManager:yncync
How to contact us:
Send your inquiry detail in the below for free samples, click "send "now.
