Specifications

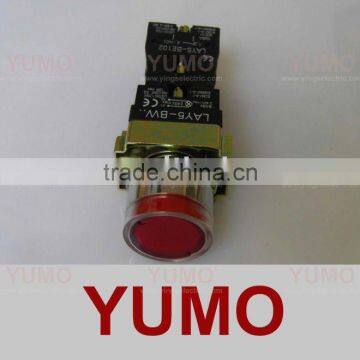

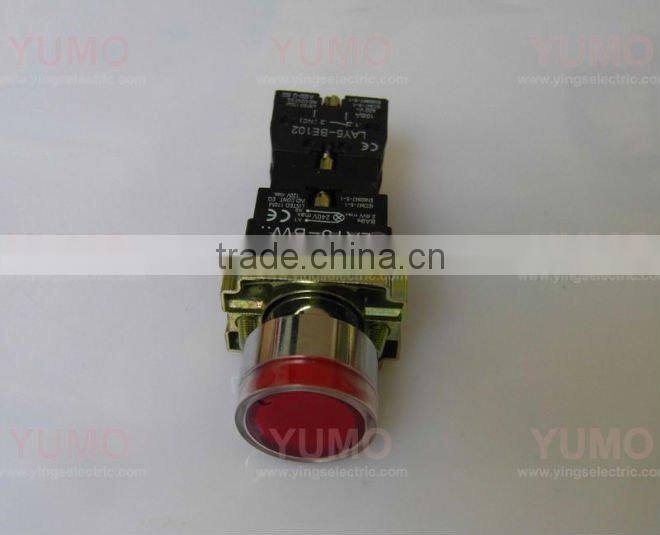

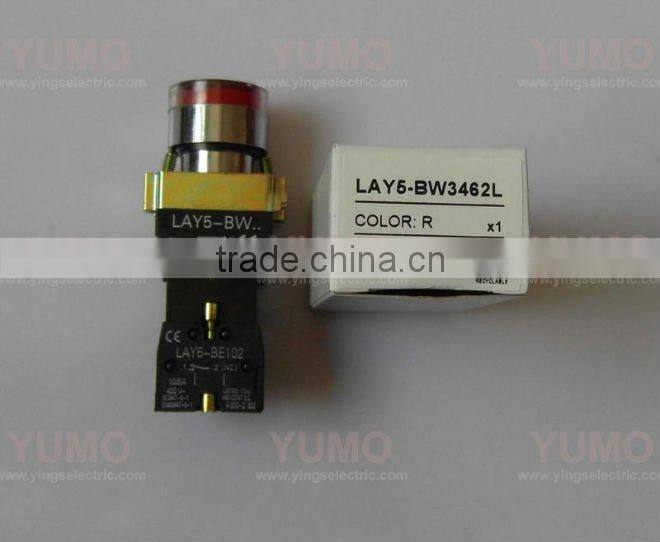

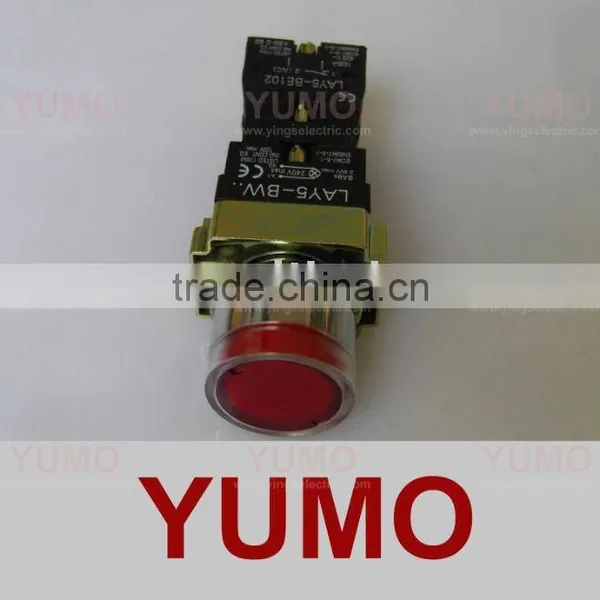

LAY5-BW3462 Push Button LAY5-BW3462L with lockLAY5-BW3462 Push Button LAY5-BW3462L with lock
Direct bulb supplied Neon LED(BA9S)
Via integral resistor BA9S,130V Bulb supplied Neon (BA9S)
LAY5-BW3462 Push Button:
We can supply quality first-grade electrical products.
Description |
Contact |
Color |
Type |
|
Direct bulb supplied Neon LED(BA9S) |
N/O 220∼240V |
White/PW |
LAY5-BW3161 |
Green/PG |
LAY5-BW3361 |
||
Yellow |
LAY5-BW3561 |
||
Pure Blue |
LAY5-BW3661 |
||
N/C 220∼240V |
Red |
LAY5-BW3462 |
|
|
Via integral resistor BA9S,130V Bulb supplied Neon (BA9S) |
N/O 220V 250V |
White |
LAY5-BW3171 |
Green |
LAY5-BW3371 |
||
Yellow |
LAY5-BW3571 |
||
Pure Blue |
LAY5-BW3671 |
||
N/C 220V 250V |
Red |
LAY5-BW3472 |
1.push button with lamp
2.high anti-electrical erosion
3.up to 660V/AC50Hz,and DC voltage below 400V
XB2 series are used in controlling circuit of AC
voltage up to 660V/AC50Hz,and DC voltage below 400V,It is used
for controlling signal and interlocking purposes, The main body of
the push buttons adopts zinc alloy and high-grade anti-flam
plastic. The contact adopts special silver alloy in order to enjoy
the benefit of high anti-electrical erosion.
Function
Widely used in mechanical equipment.
Standard mounting size
Diam 22mm
Operation environmental condition
air temperature around -25°C~ +70°C
height above sea level ≤ 2000m
air comparative humidity ≤90%
pollution degree 3
protection level IP65
Main technical parameters
Rated: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A
Conventional themal current 1th 10A
insulation resistance ≥10mΩ
resistance of electric shock ≤50mΩ
Push Button Switch
Adopting the non-contacting accessories, self-locked contacting type, safe and reliable, and separate conveniently. Its shape is handsome, specially designed for Industrial equipments, have firm fabrics, and have very good quality and very competitive prices. The switches have full and different kinds for different functions, like spring return type, self-locked type, with lamp type, mushroom head type, selector type, with key type and emergency stop type, etc.
YUMO MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international standard IEC60898, IEC947-2
YUMO VISION:
To be an enterprise lasting 150 years and beyond
To be an enterprise with a sales network all over 200 countries in the world.
To be the cooperative partner of General Electric
YUMO MISSION:
Better product, better service.
YUMO BUSINESS PRINCIPLE
Cooperation, Sharing, Win-win
YUMO WORKING PRINCIPLE
Enjoy the work, enjoy the life.
Conditions and terms
1. All of the products are brand new, top quality components, absolutely no used items
2 .The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
Payment Terms
1.We accept payments made by Western Union, TT, PayPal, L/C
2.Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1. We will ship the items within 3-15 working days after the payment is reached.
2. We ship to you by Express, by sea, by air according to the PI.
3. Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1. Quality guaranteed for one year.
2. If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
