Specifications

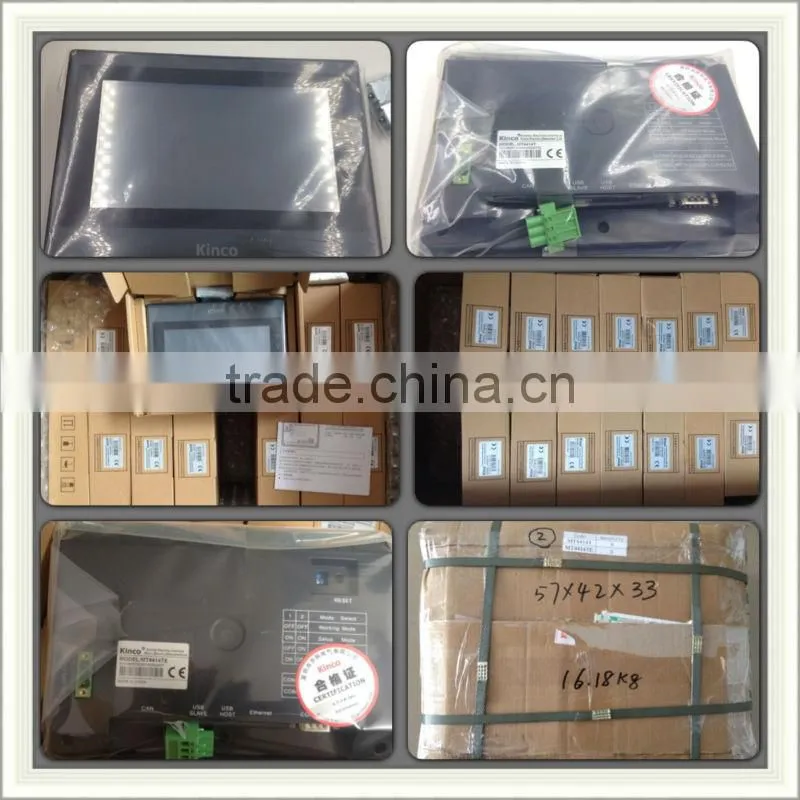

MT4414T Kinco Eview 7 HMI Human machine interface1.7Widescreen
2.32 Bit RISC 400MHz
3. 128MB flash memory on board
Model | MT4414T | MT4414TE | MT4414TE-CAN |
Performance specification | |||
Display | 7" 16:9 TFT | ||
Resolution | 800*480 | ||
Color | 65536 | ||
Backlight | LED | ||
Brightness | 300cd/m2 | ||
Backlight life | 50000 hours | ||
Touch Panel | 4-wire precision resistance network | ||
Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC | |
Memory | 128M FLASH + 64M SDRAM | ||
U Disk | None | 1 USB host | |
SD Card | None | ||
Recipe memory & RTC | 512KB + RTC | ||
Printer port | Serial port | Serial port/USB port | |
Ethernet | None | Support | |
Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port | |
COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | ||
Expansion Port | None | CANopen | |
Software | EV5000 V1.6 | ||
Electrical specification | |||
Rated power | 4W | ||
Rated voltage | DC24V | ||
Input range | 12~28VDC | ||
Important Information about HMI Conditions
1. All of the HMI are brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by Western Union,TT,PayPal.
-Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The HMI are guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
