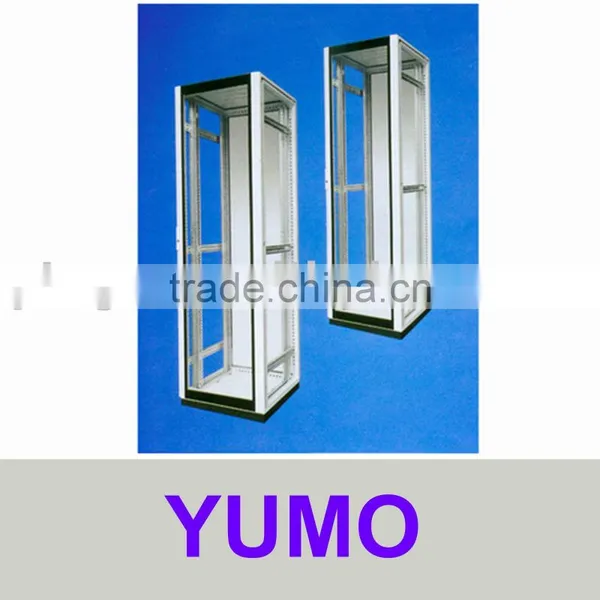

Metal cabinet industrial cubicle system IP 55 10b

Specifications

METAL ENCLOSURES, Distribution box, metal panels and enclosure, sheet metal encolure, Metal box, metal cabinet, wall mounting me







METAL ENCLOSURES, Distribution box, metal panels and enclosure, sheet metal encolure, Metal box, metal cabinet, wall mounting metal enclosure, electrical cabinet, enclosure box, distribution board, enclosure,



Application

1      Designed to enclose electrical and electronic equipment and protect against harsh, industrial environment.

2      For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

3      Impressive styling features make the enclosure a suitable addition and high-tech equipment installation.

4      For high temperature applications, a gasket retainer may be required, please refer to factory.



Construction

1      Body and cover are formed from 1.2mm and mild steel. Mounting plate in sheet steel or galvanized steel.

2     Continuously hinged cover has steel hinges and provides 120°opening.



Finish

1     Standard for cycle epoxy polyester powder finish.

2     Body and doors RAL 7032 textured finish.

3     Mounting plate in RAL 2004 smooth finish.



Protection degree

1      Complies with IEC 60529 and NEMA4, 12

2     IP65





CAT.NO	DIMENSIONS(mm)			THICNINESS(mm)
	H	W	D	DOOR	BODY
JX2-215	200	200	150	1.2	1.2
JX2-225	300	200	250	1.2	1.2
JX2-315	300	200	150	1.2	1.2
JX2-320	300	200	200	1.2	1.2
JX25-315	300	250	150	1.2	1.2
JX25-320	300	250	200	1.2	1.2
JX25-325	300	250	250	1.21.2	1.2
JX3-315	300	300	150	1.2	1.2
JX3-320	300	300	200	1.2	1.2
JX3-325	300	300	250	1.2	1.2
JX3-415	400	300	150	1.2	1.2
JX3-420	400	300	200	1.2	1.2
JX3-425	400	300	250	1.2	1.2

















Important Information about  distribution box Conditions

1. All of the  distribution boxare brand new, top quality components: absolutely no used items or counterfeits.

2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.

3. Prices, specifications, and availability of all items are subject to change without notice.

4. We are not responsible for typographical errors.

Payment Terms

 - We accept payments made by L/C, Western Union,TT,PayPal.

-Since you made the payment successfully, you can send us the Reference NO or MTCN.

Shipping

1.We will ship the items within 5 working days after the payment is reached.

2.We ship to you by Express.

3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4.Any import fees or charges are the buyer's responsibility.

 Warranty

 Warranty is available based on the following points:

1.The  distribution box  guaranteed for one year.

2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t   o manufacturers specifications, simply return them to us for replacement or refund.

3.If the items is defective, please notify us within 3 days of delivery.

4.Any items must be returned in their original condition to qualify for a refund or replacement.

5.The buyer is responsible for all the return shipping cost incurred.
