Home > Products > Distribution box > Metal Enclosures Distribution box JX series No.4

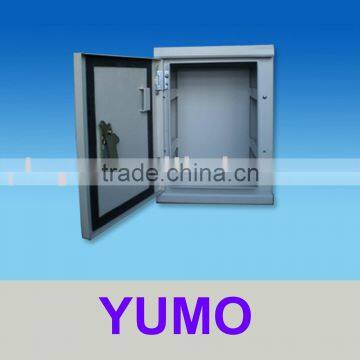

Metal Enclosures Distribution box JX series No.4
- 10000 Piece / Pieces per Month
- Shanghai
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YNC | Model Number: | JX series No.4 |
Product Description
Specifications
METAL ENCLOSURES, Distribution box, metal panels and enclosure, sheet metal encolure, Metal box, metal cabinet, wall mounting meMETAL ENCLOSURES, Distribution box, metal panels and enclosure, sheet metal encolure, Metal box, metal cabinet, wall mounting metal enclosure, electrical cabinet, enclosure box, distribution board, enclosure,
Application
1 Designed to enclose electrical and electronic equipment and protect against harsh, industrial environment.
2 For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
3 Impressive styling features make the enclosure a suitable addition and high-tech equipment installation.
4 For high temperature applications, a gasket retainer may be required, please refer to factory.
Construction
1 Body and cover are formed from 1.2mm and mild steel. Mounting plate in sheet steel or galvanized steel.
2 Continuously hinged cover has steel hinges and provides 120°opening.
Finish
1 Standard for cycle epoxy polyester powder finish.
2 Body and doors RAL 7032 textured finish.
3 Mounting plate in RAL 2004 smooth finish.
Protection degree
1 Complies with IEC 60529 and NEMA4, 12
2 IP65
CAT.NO | DIMENSIONS(mm) | THICNINESS(mm) | |||
H | W | D | DOOR | BODY | |
JX2-215 | 200 | 200 | 150 | 1.2 | 1.2 |
JX2-225 | 300 | 200 | 250 | 1.2 | 1.2 |
JX2-315 | 300 | 200 | 150 | 1.2 | 1.2 |
JX2-320 | 300 | 200 | 200 | 1.2 | 1.2 |
JX25-315 | 300 | 250 | 150 | 1.2 | 1.2 |
JX25-320 | 300 | 250 | 200 | 1.2 | 1.2 |
JX25-325 | 300 | 250 | 250 | 1.21.2 | 1.2 |
JX3-315 | 300 | 300 | 150 | 1.2 | 1.2 |
JX3-320 | 300 | 300 | 200 | 1.2 | 1.2 |
JX3-325 | 300 | 300 | 250 | 1.2 | 1.2 |
JX3-415 | 400 | 300 | 150 | 1.2 | 1.2 |
JX3-420 | 400 | 300 | 200 | 1.2 | 1.2 |
JX3-425 | 400 | 300 | 250 | 1.2 | 1.2 |
Important Information about distribution box Conditions
1. All of the distribution boxare brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by L/C, Western Union,TT,PayPal.
-Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The distribution box guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
