Several Production line Extruding machine for PVC hose making equipment :

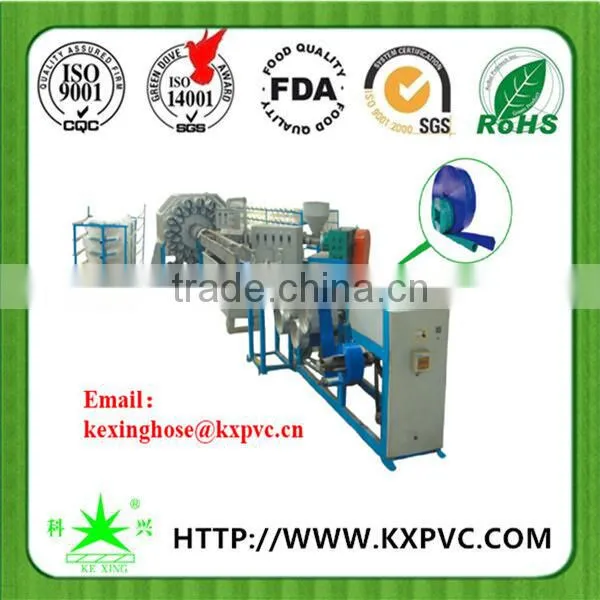

1)Extruding Machine FOR PVC LAYFLAT HOSE
By learning foreign advanced technology, we company devises and designs the PVC Special High-strength Layflat Hose
production line by ourselves.By one-step extruding and molding technique,the production line can produce
PVC Reinforced Layflat Hose with Premium PVC material and PE fiber reinforcement..The layflat hose produced by this machinehas the specialities such as flexible,high working pressure,anti-erosion,aging resistance,light etc.
MAIN TECHNICAL PARAMETER PVC hose making equipment :
| Model |
Screw diameter (mm) |
L/Rs | Material |
Motor Power (KW) |
Center hight (mm) |
Scope of Product (mm) |
| SJ-55 | 55 | 30 | 38CrMnal | 11 | 1100 | 1''-2'' |
| SJ-75 | 75 | 30 | 38CrMnal | 18.5 | 1100 | 2.5''-4'' |
| SJ-90 | 90 | 30 | 38CrMnal | 37 | 1100 | 4''-6'' |
| SJ-120 | 120 | 30 | 38CrMnal | 55 | 1200 | 6''-8'' |
2)Extruding Machine FOR PVC FIBER REINFORCED HOSE:
FEATURES:
This production line is the whole set of specific machine to produce PVC fiber strengthen soft hose.PVC fiber soft hose is also named as PVC net hose and it has features as transparent ,non-posion,flexible texture,high working pressure,acid&alkali resistant,
stretching resistant,anti-erosion,durable,etc.
It is suitable for conveying air,water,gas,oil,petorl in the foodstuff ,sanitation and other fields.Its working temperature range is -5℃-----65℃.
| Model |
Screw diameter (mm) |
L/Rs | Material |
Motor Power (KW) |
Whole power (kw) |
Center hight (mm) |
Diameter Scope of Product (mm) |
| SJ-45/55 | 45/55 | 30 | 38CrMnal | 7.5/11 | 35 | 1000 | 6-14 |
| SJ-55/65 | 55/65 | 30 | 38CrMnal | 11/15 | 46 | 1000 | 16-38 |
| SJ-75/90 | 75/90 | 30 | 38CrMnal | 18.5/37 | 80 | 1000 | 50-102 |
3)Extruding Machine FOR PVC STEEL WIRE REINFORCED HOSE:
FEATURES:
With spiral steel wire embedded,the PVC steel hose is made of premium pvc material. This kind hose is light,transparent,non-toxic,durable and adaptable to tough temperature and negative pressure.It has samll bending radius and its working temperature range is -10℃----65℃.
Based on Abroad advanced technique and our years of producton experience,this set of production line is assembled.And it functions stably and produces successively and heavily.Our continous designing and innovating makes it to bring benefits for you.
| Model |
Screw diameter (mm) |
L/Rs | Material |
Motor Power (KW) |
Whole power (kw) |
Center hight (mm) |
Diameter Scope of Product (mm) |
| SJ-45 | 45 | 30 | 38CrMnal | 7.5 | 18 | 1100 | 12-20 |
| SJ-65 | 65 | 30 | 38CrMnal | 15 | 27 | 1100 | 25-38 |
| SJ-90 | 90 | 30 | 38CrMnal | 30 | 46 | 1100 | 50-75 |
| SJ-100 | 100 | 30 | 38CrMnal |
37 | 56 | 1100 | 64-102 |
| SJ-120 | 120 | 30 | 38CrMnal | 55 | 80 | 1100 | 75-150 |
| SJ-150 | 150 | 30 | 38CrMnal | 75 | 108 | 1100 | 102-200 |
4)PVC GRANULATING MACHINE:
Granulating machine is assembled with variable frequency speed controller,cast aluminum heater,electronic temperature controller and so on.It adopts single screw structure and it has features as stable operation,high-yield and grain-cutting uniformly.For plastic products manufacturers,this machine is applied to PVC material’s hot-cut and granulate
| Model |
Screw diameter (mm) |
L/Rs | Material |
Motor Power (KW) |
Whole power (kw) |
Center Hight (mm) |
| SJ-90 | 90 | 16 | 38CrMnal | 18.5 | 30 | 800 |
| SJ-150 | 150 | 10 | 38CrMnal | 45 | 70 | 1000 |
PVC hose making equipment
PVC hose making equipment
