Help CenterPE Pipe Extrusion Line, Dia16-1200mm
Related Products
-
Single Wall Corrugation Pipe MachineUS$ 50,000 - 100,000MOQ: 1 Set -
Single Wall Corrugated Pipe Production Line,PE/PVC PipeUS$ 50,000 - 100,000MOQ: 1 Set
-
Aluminum Plastic Composite Pipe Production LineUS$ 50,000 - 100,000MOQ: 1 Set
-
Steel Reinforced Pipe Production LineUS$ 50,000 - 100,000MOQ: 1 Set
-
Plastic Pipe Production Line of PEUS$ 50,000 - 100,000MOQ: 1 Set
Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing
Application:
Water and gas supply, micro&sprinkler irrigation system, sewerage pumping and effluent disposal system.
Properties & Advantages:

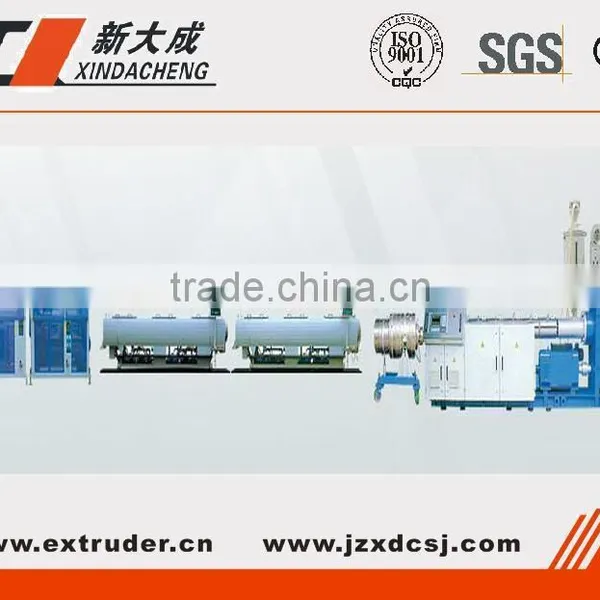

The pipes produced by this line have excellent hardness and flexibility. Their diameters vary from 16mm to 1200mm. The line consists of control system, extruder, die, vacuum calibration unit, hauling-off and planetary cutting system and stacker.
Two extruders are utilized in this line. The main extruder is used to extrude the large diameter pipes and the other small one is used to extrude the mark line.
Basket or spiral type composite die is used in this line. PLC control system and large chromatic liquid crystal screen make the operation very convenient.
| Type | Pipe Spec(mm) | Extruder |
Max.output(kg/h) |
| XDC-PE63 | φ20-φ63 | SJ-45/30 SJ-25/25 | 120 |
| XDC-PE160 | φ63-φ160 | SJ-60/30 SJ-25/25 | 300 |
| XDC-PE250 | φ75-φ250 | SJ-75/30 SJ-25/25 | 400 |
| XDC-PE450 | φ160-φ450 | SJ-90/30 SJ-25/25 | 600 |
| XDC-PE630 | φ315-φ630 | SJ-120/30 SJ-25/25 | 800 |
| XDC-PE800 | φ450-φ800 | SJ-150/30 SJ-25/25 | 1000 |
