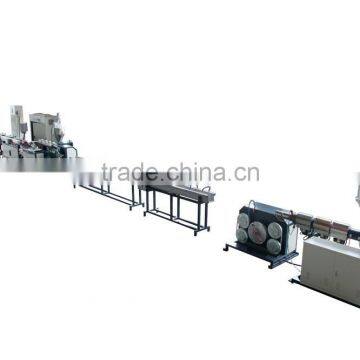

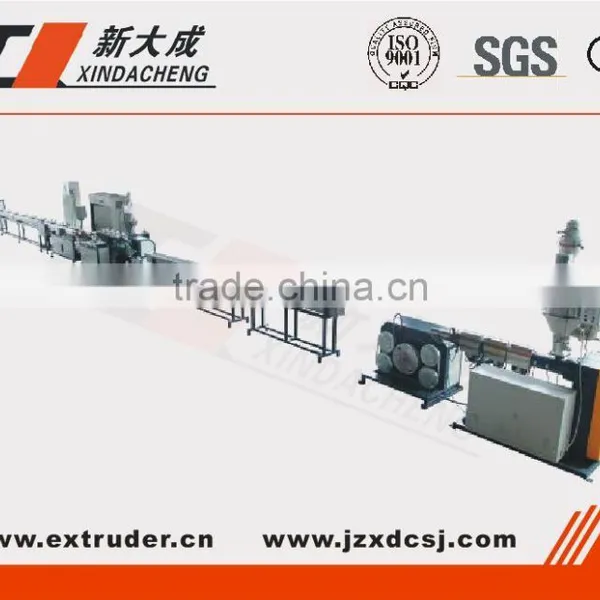

Drip Tape Irrigation Pipe Production Line
Features:
(1). Reliable and steady quality of the pipe produced by the most advanced machinery and online continuous quality control by computer.
(2) Having high adaption of different landform, drip spacing and the water flow can be customized.
(3). Tape irrigation pipe is widely used in greenhouse, vegetables, floriculture, tea garden, economic forest. Especially the row crop like tomato, corn, cotton, sugar cane etc.
Technical parameter:
*Pipe diameter------>12mm, 16mm, 20mm
*Wall thickness----->0.18 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9mm
*Dripper spacing---->200 300 400 500 600mm(as customer's needs)
*Follow rate----------->1.1L, 2L, 2.7L, 4L
* Speed: 200m/min
|
Diameter of the pipe |
12mm,16mm,20mm |
|
Thickness of the walll |
0.18mm-0.6mm |
|
Spacing of the dripper |
100,150,200,250,300,330,500mm |
|
Working presure |
0.01MPa |
|
Water flow |
1.1-1.5-1.8-2.2-3.0-4.0L/h |
|
Length/roll |
1000-1500-2000-2500m/roll |
Product description:

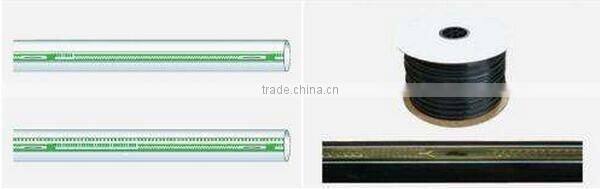

Internal tape drip irrigation pipe dripper, design of the turbulent flow is long enough to produce damping effect and decay the pressure. That makes the flow uniformity much better than flat dripper and single blade labyrinth irrigation pipe. It also have obvious advantage on anti-blocking. The water outlet, using slit type has construction which is similar to one-way valve. Water out-let will shut down when the pipe produced negative pressure. That prevent the pipe from absorb field soil and resistant grass root clogging, then the pipe will not be blocked by negative pressure.
1,Extremely high irrigation uniformity, good flow index, it has much better hydraulic performance beyond comparison of other types of irrigation pipe.
2,Extrusion welding forming one time, no joint, no rough selvedge, little chance burst under compression.
3,Much filter hole on flow inlet, high clogging resistance.
4,Machinery perforate slot outlet. Avoid invasion of plant root and insect to block the dripper. The anti-block performance is better than other types since the special outlet design.
5,Good energy dissipation since the extended turbulent flow, good flow index, and have certain compensation.
6,Exclusive double blue strip make it easier to recognize on installation.
7,This product have various pipe diameter and pipe thickness and it have certain compensation, so the laying length is longer.
Inner tape drip pipe forming device. (Xindacheng invention patent, patent No. ZL2012102831941):
1,Internal labyrinths strip is thermoformed by accurate device and make sure water flow exactness.
2,Labyrinths strip forming device is controlled by servo motor.
3,According to clients required flow, easy to change to molding strip.
4,Special technologies, internal cooling system, make sure succession strip and high speed molding.

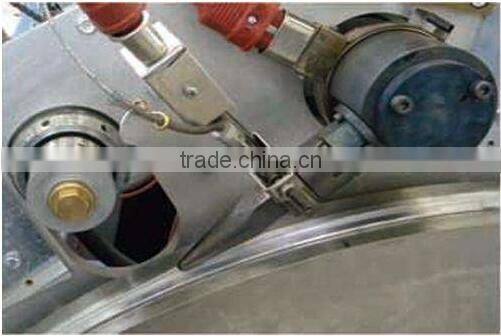

Online high-speed punching and monitor system:
1,Slitting speed: 2000pcs/min
2,Accurate analysis punching state.
3,Slitting water outlet by PLC operation. Auto sense system.

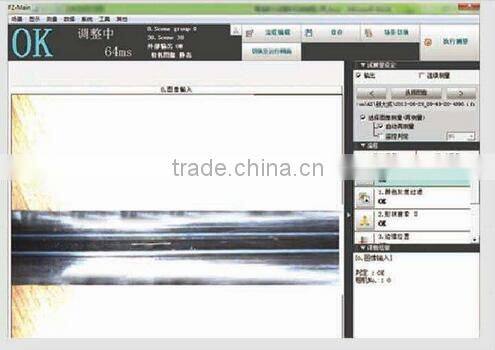

4,Providing online monitor system for detecting slitting and auto identify revised.

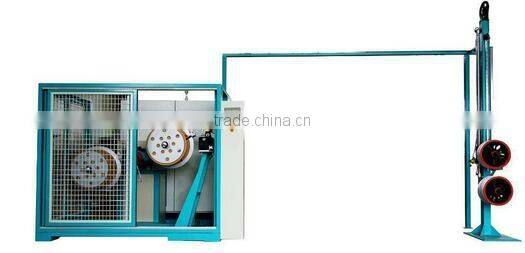

Auto rewinding and accumulate device:

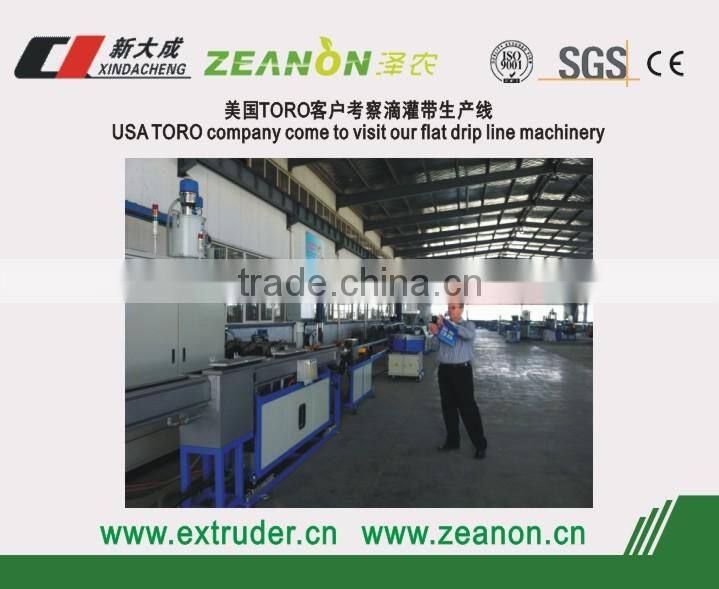

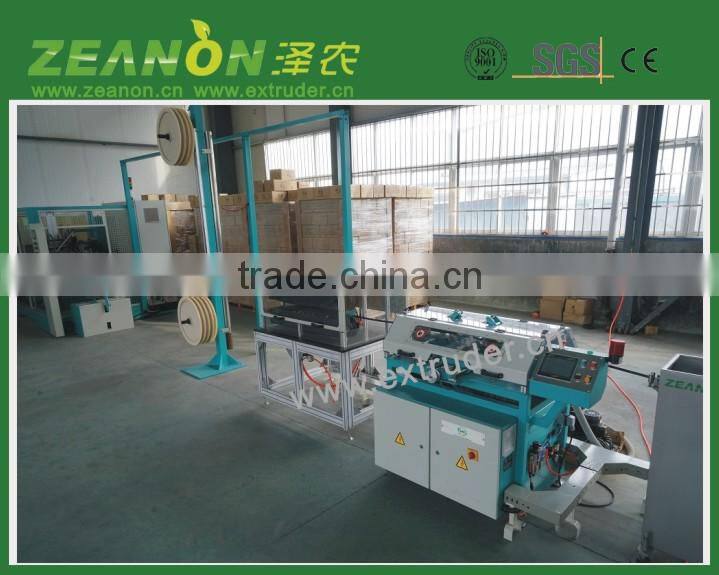

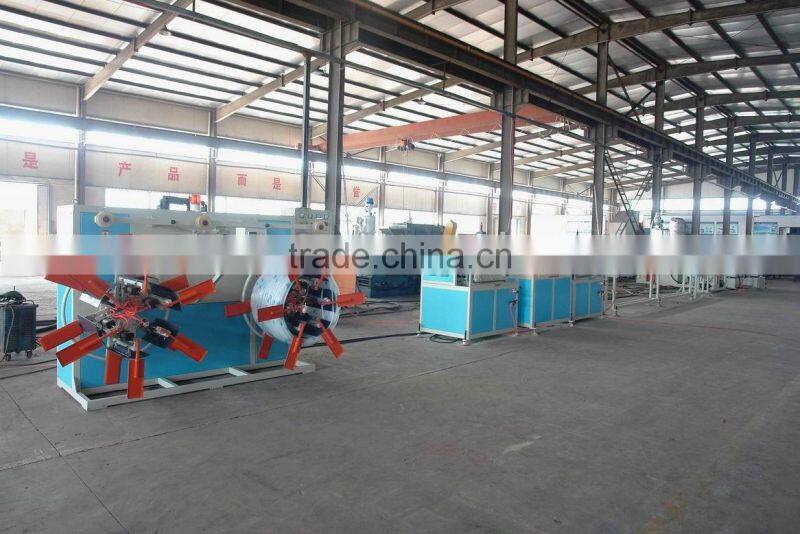

factory:

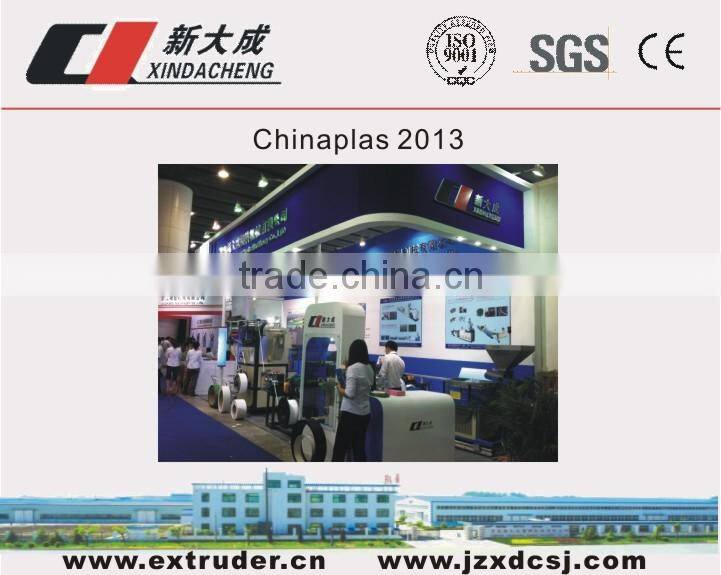

Exhibition:
