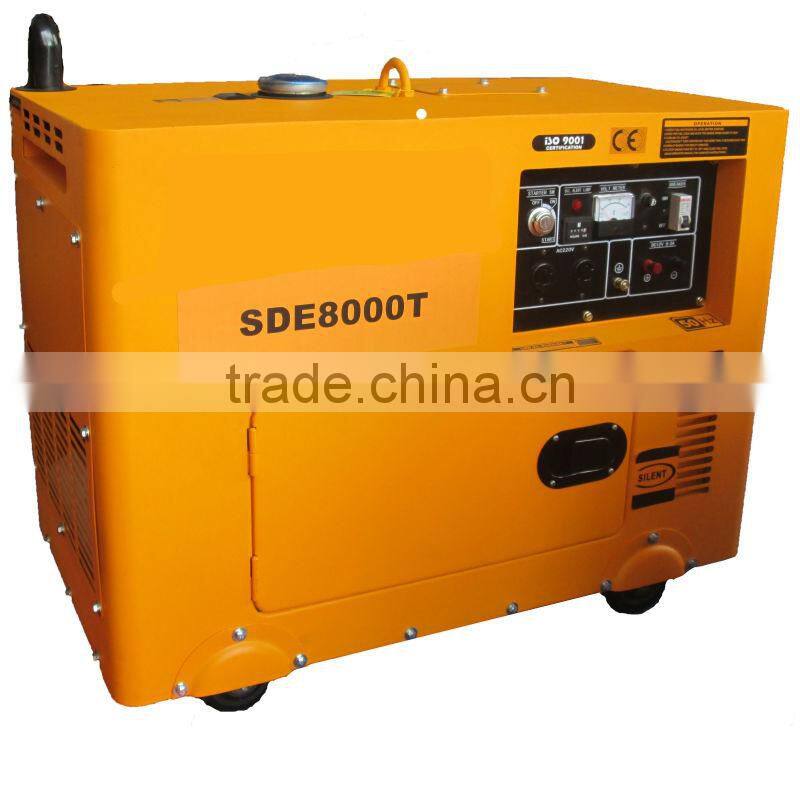

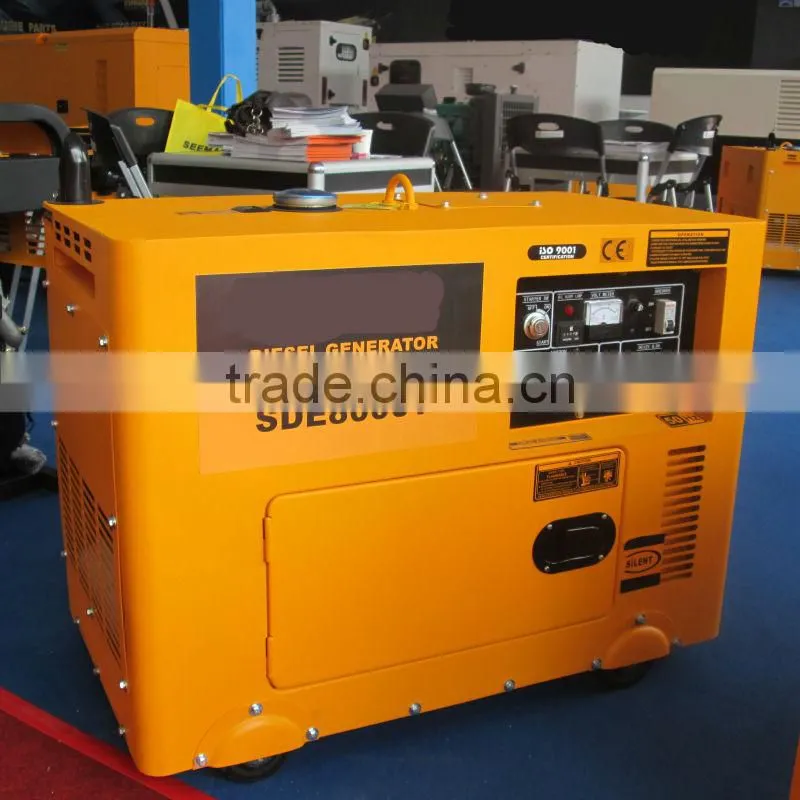

Single Cylinder Open Frame & Silent Diesel Generator Set SDE8000T
Specifications
Single cylinder Open frame & Silent Diesel Generator Set SDE8000T1.Single cylinder 4 stroke air cooled vertical
Single cylinder Open frame & Silent Diesel Generator Set SDE8000T
Diesel generator / air cooled generator / silent diesel generator
| Model No. | SDE8000T | SDE8000TA | |
| Rated Frequency | HZ | 50 | 60 |
| Rated Output | KVA | 6.0 | 6.6 |
| Max.output | KVA | 6.6 | 7.2 |
| Rated Voltage | V | 230/400 | 240/416 |
| Rated current | A | 26.0/15.0 | 27.5/15.8 |
| Rated rotation speed | rpm | 3000 | 3600 |
| Phase No. | Single phase | ||
| Power factor | 0.8 | ||
| Insulation Grade | B | ||
| Pole number | 2 | ||
| Excitation mode | Self-excitation and constant voltage(AVR) | ||
| Panel Type | General Panel | Digital Panel | |
| Voltage | V | 230/400 240/416 | |
| Output Receptacle | Two receptacles | ||
| Connection pole | Without | ||
| DC 12V output | DC receptable output | ||
| Overall dimension:LxWxH | mm | 915*547*742 | |
| Dry weight | kg | 190 | |
| Working assorting weight | kg | 216 | |
| Noise level 7m | dB(A) | 72 | |
| Structure type | Silent | ||
| Engine Model | SD188FAE | ||
| Engine Type | Single-cylinder,Vertical,Four-stroke,direct injection | ||
| Cylinder No. Bore x stroke | mm | 1-88x72 | |
| Displacement | ml | 428 | |
| Rated power | KW | 7.5/3000 | 7.8/3600 |
| Combusition ration | 19:1 | ||
| Rated rotation speed | r/min | 3000 | 3600 |
| Cooling System | Air cooled | ||
| Lubrication system | Pressure splashed | ||
| Starting system | Electric Starter | ||
| Fuel type | Diesel 0#(summer),-10#(winter),-35#(Chill Cold) | ||
| Lube oil brand | SAE 10W30(above CD grade) | ||
| Lube Capacity | L | 1.65 | |
| Starting Motor capacity | V-KW | 12V | 0.8KW |
| Charging generator capacity | V-A | 12V | 3A |
| Battery capacity | V-Ah | 12V | 36AH |
| Fuel comsuption | g/KW.h | 275.1 | 281.5 |
| Fuel tank capacity | L | 16 | |
| Continuous running time | hr | 8 | |
