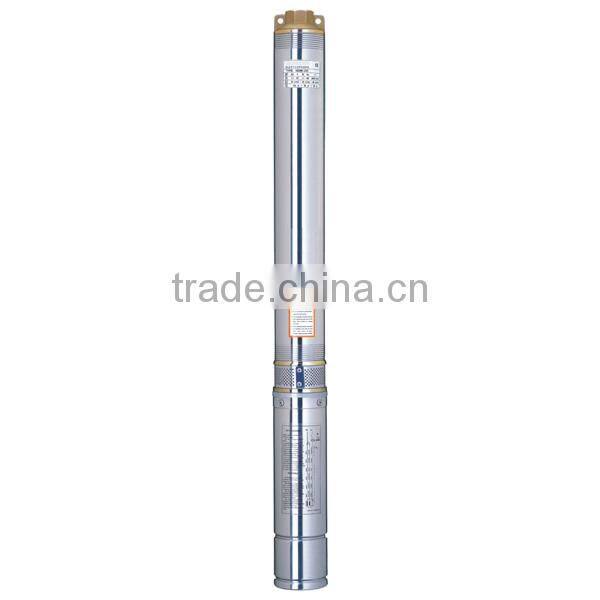

CE Certified 3SD Series Multi-stage Submersible Pump
Negotiable
MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HALOTOP
Model Number:
3SD1.5
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA SEA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Certified Electric Centrifugal Water PumpNegotiableMOQ: 50 Units -
CE Certified Electric Submersible Water PumpsNegotiableMOQ: 50 Units
-
CE Certified Electric Centrifugal Submersible Water Pumps 3.5SD 3 4NegotiableMOQ: 50 Units
-
CE Certified Best Electric Submersible Pumps Brands 4SD2NegotiableMOQ: 50 Units
-
CE Certified Electric Deep Well Submersible Water Pumps 4SD 3NegotiableMOQ: 50 Units
Place of Origin
Shandong, China
Brand Name
HALOTOP
Model Number
3SD1.5
Theory
Centrifugal Pump
Structure
Multistage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electirc
Pressure
High Pressure
Application
Submersible
Specifications
1.CE Certified 3SD Series Submersible Pump2.Multi-stage Pump
3.Three Phase
4.Power: electric
CE Certified 3SD Series Multi-stage Submersible Pump
| Applications |
| 1.For water supply from wells or reservoirs |
| 2.For domestic use, for civil and industrial applications. |
| 3.For garden ues and irrigation. |
| Operating Conditions |
| 1.Maximum fluid temperature up to +35°C |
| 2.Maximum sand content:0.25% |
| 3.Maximum immersion:80m |
| 4.Maximum well diameter:3" |
| Motor and Pump |
| 1.Rewindable motor or Full obturated screen motor |
| 2.Three-phase:380V-415V/50HZ |
| 3.Single-phase:220V-240V/50HZ |
| 4.Pumps are designed by casing stressed |
| 5.Curve tolerance according to ISO2548 |
| Options on request |
| 1.Equip digital auto-control box |
| 2.Special Mechanical Seal |
| 3.Other voltages or frequency 60HZ |
| Warranty:1 year |
| (according to our general sales conditions) |
| PERFORMANCE DATA 50HZ | |||||||||||||||
| MODEL | P2 | DELIVERY n≈2850 1/min | |||||||||||||
|
1~ 220V/240V |
3~ 380V/415V |
KW | HP | Q | m3/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | |||||
| 3SDM1.5/10 | 3SDM1.5/10 | 0.25 | 0.33 | H(m) | 42 | 41 | 40 | 39 | 37 | 34 | 30 | 25 | 19 | 12 | |
| 3SDM1.5/14 | 3SDM1.5/14 | 0.27 | 0.5 | 59 | 58 | 57 | 55 | 52 | 48 | 42 | 35 | 26 | 16 | ||
| 3SDM1.5/20 | 3SDM1.5/20 | 0.55 | 0.75 | 84 | 83 | 81 | 78 | 74 | 69 | 60 | 50 | 37 | 23 | ||
| 3SDM1.5/27 | 3SDM1.5/27 | 0.75 | 1 | 113 | 111 | 109 | 106 | 101 | 92 | 82 | 67 | 51 | 31 | ||
| 3SDM1.5/37 | 3SDM1.5/37 | 1.1 | 1.5 | 155 | 153 | 150 | 145 | 138 | 127 | 112 | 92 | 69 | 43 | ||
| 3SDM1.5/47 | 3SDM1.5/47 | 1.5 | 2 | 197 | 194 | 190 | 184 | 175 | 161 | 142 | 117 | 88 | 55 | ||
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM280 |
| Suction lantern | Cast-Cu ASTM280 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 316 SS & AISI 304 SS |
| Shaft coupling | AISI 316 SS & AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM280 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(carbon-SIC/TC) |
| Shaft | AISI 304 SS-1045 |
| Bearing | NSK |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use |
| MODEL | DN | DIMENSIONS(mm) | WEIGHT(kg) | |||||
|
1~ 220V/240V |
3~ 380V/415V |
L1 | L(S) | L(T) | G(S) | G(T) | ||
| 3SDM1.5/10 | 3SDM1.5/10 | 1" | 419 | 739 | 724 | 7 | 6 | |
| 3SDM1.5/14 | 3SDM1.5/14 | 1" | 509 | 859 | 839 | 8 | 7 | |
| 3SDM1.5/20 | 3SDM1.5/20 | 1" | 668 | 1058 | 1038 | 10 | 9 | |
| 3SDM1.5/27 | 3SDM1.5/27 | 1" | 826 | 1256 | 1236 | 12 | 11 | |
| 3SDM1.5/37 | 3SDM1.5/37 | 1" | 1051 | 1561 | 1511 | 15 | 14 | |
| 3SDM1.5/47 | 3SDM1.5/47 | 1" | 1300 | 1896 | 1830 | 18 | 17 | |
| *L(S)is single phase motor,L(T)is three phase motor *G(S)is single phase motor,G(T)is three phase motor | ||||||||
