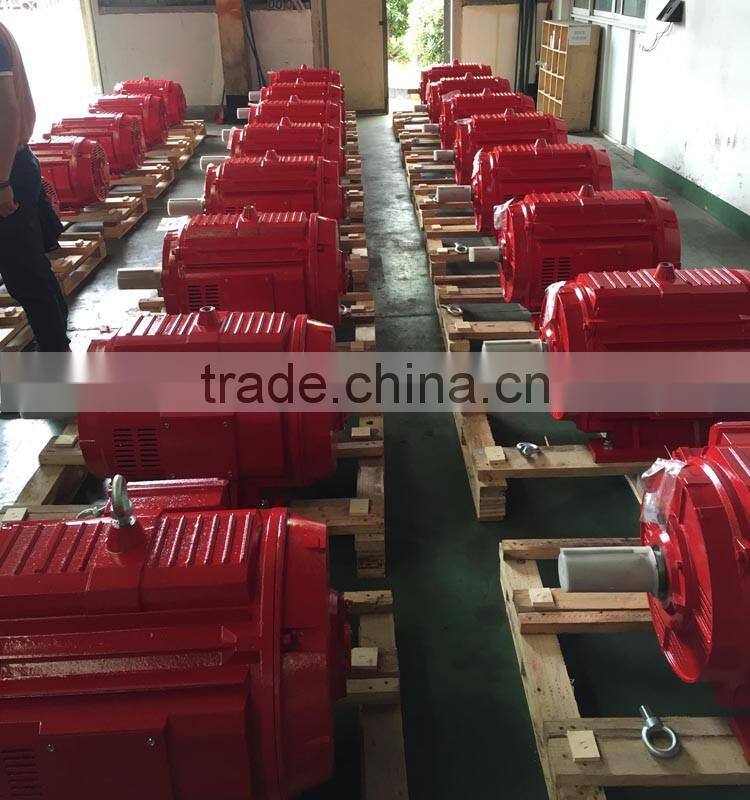

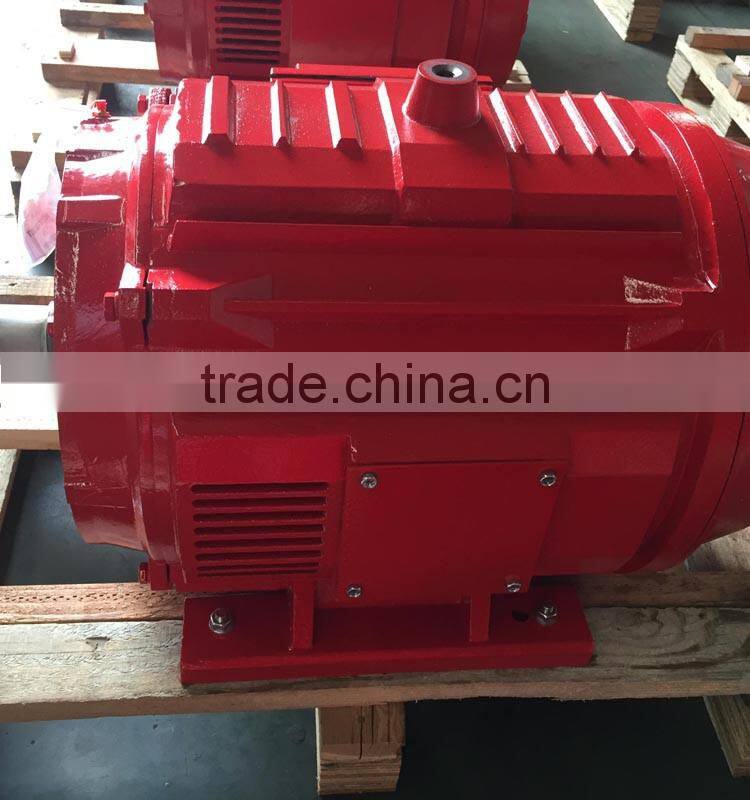

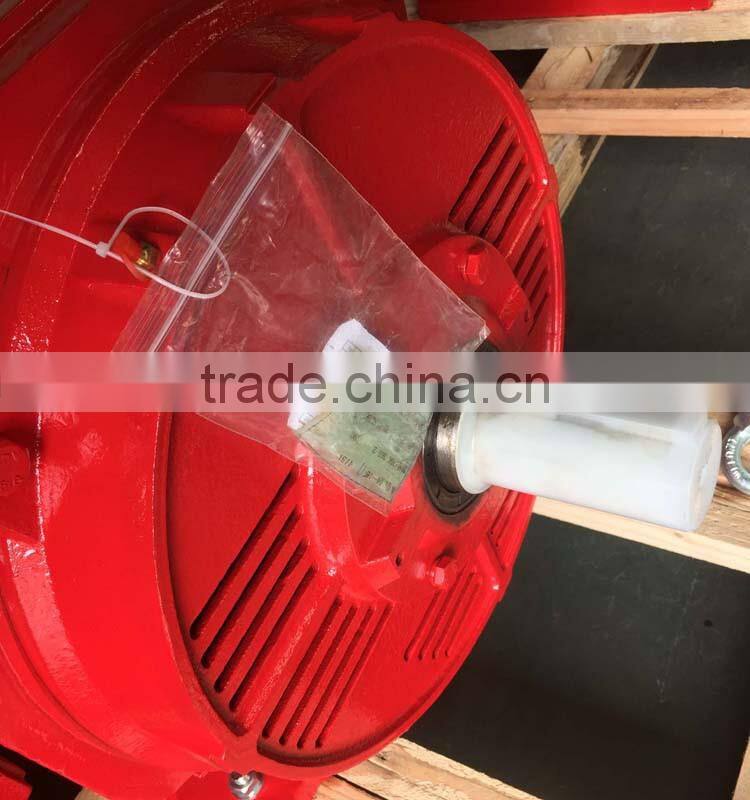

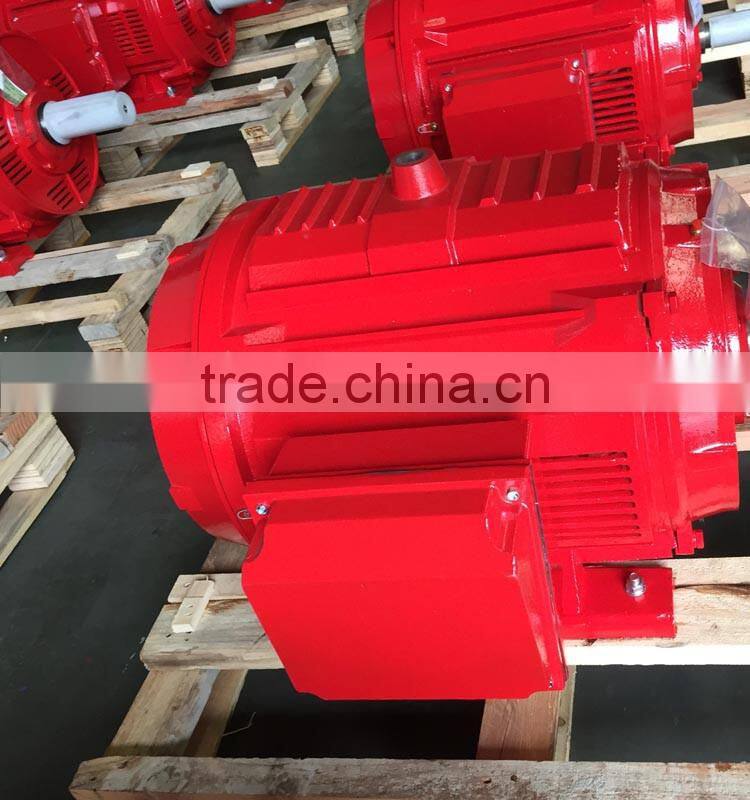

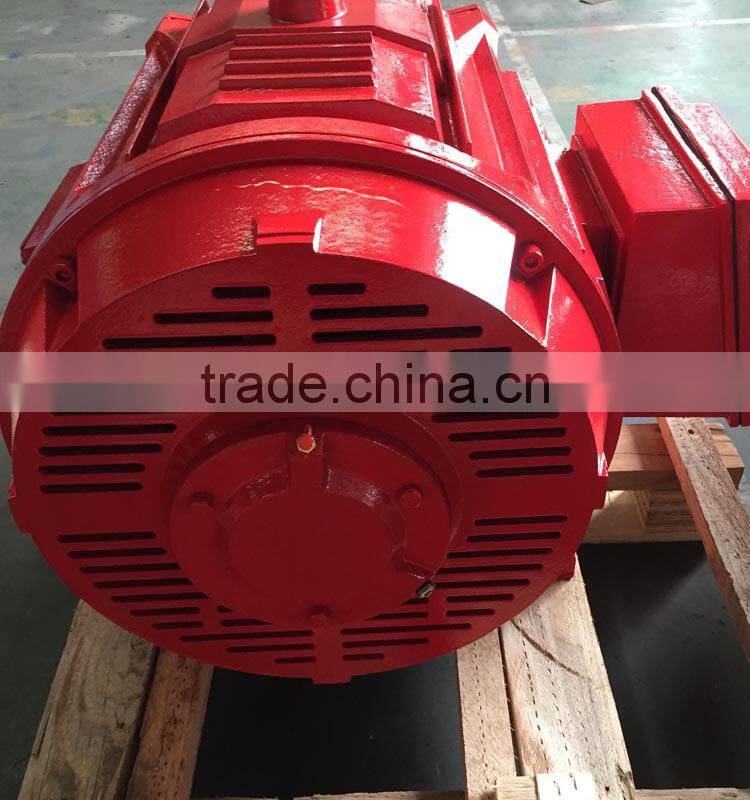

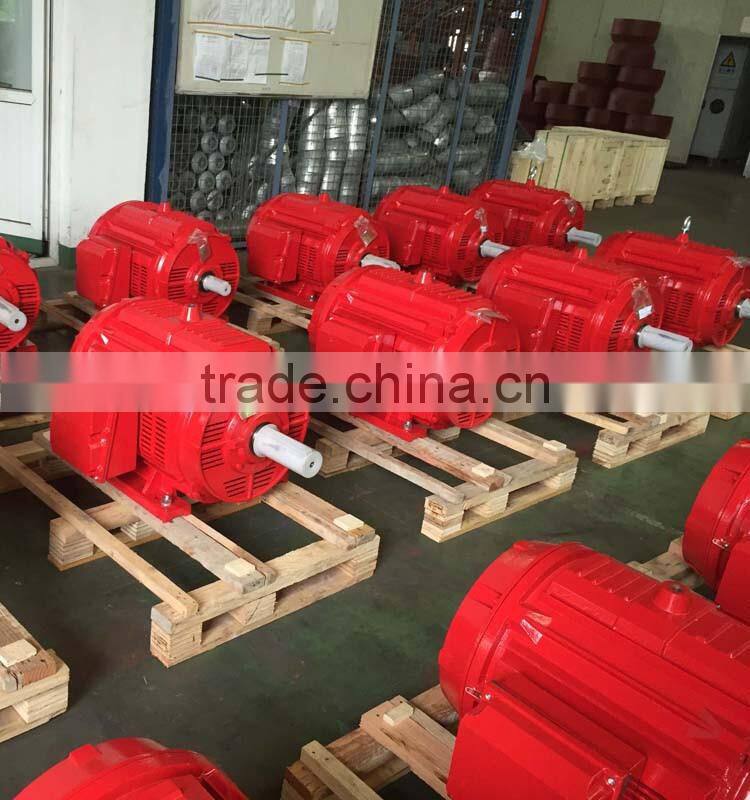

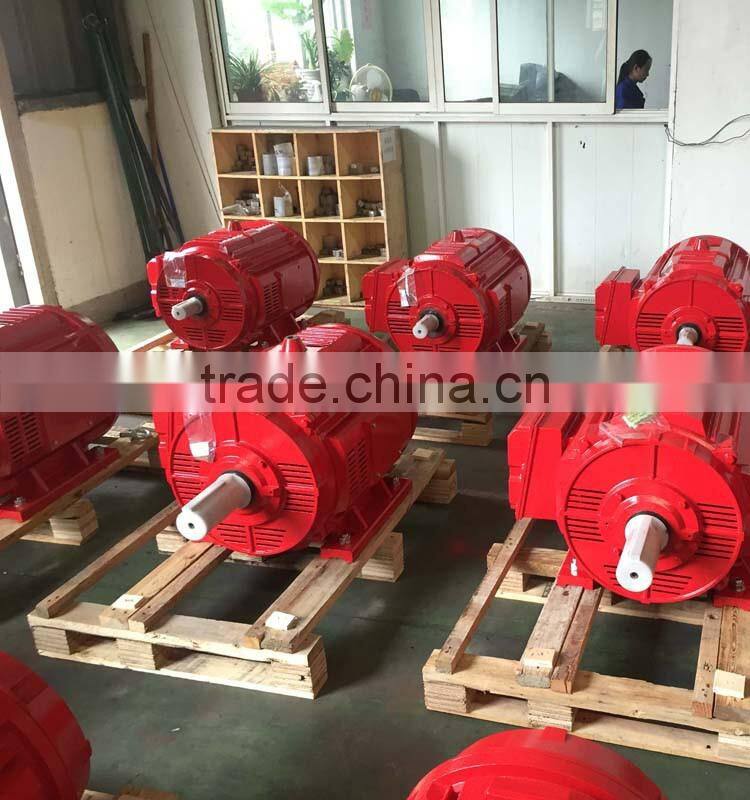

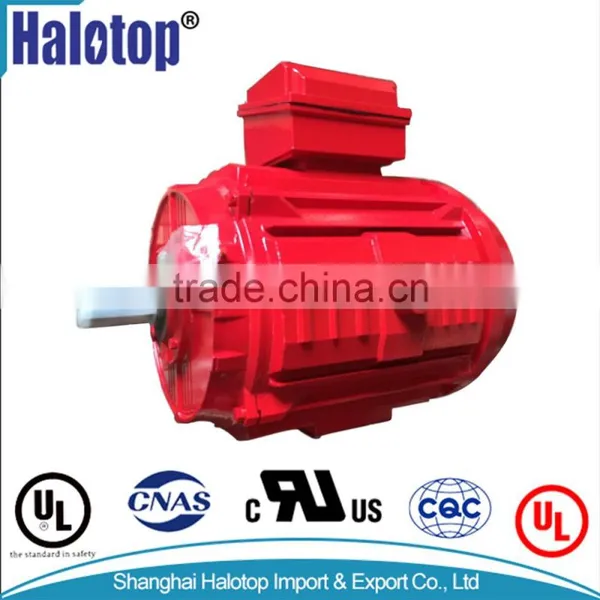

UL LISTED NEMA ODP STANDARD 250 IE1 FIRE MOTOR (TDC449T250U4B)

Name: UL LISTED NEMA ODP STANDARD 250 IE1 FIRE MOTOR (TDC449T250U4B)
Brand: HALOTOP Motor
SKU: 141199530
Availability: InStock

US$ 350 - 350 MOQ: 10 Pieces

Key Specifications

Brand Name:

HALOTOP Motor

Model Number:

TDC449T250U4B

Type:

Synchronous Motor

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HALOTOP Motor

Model Number TDC449T250U4B

Type Synchronous Motor

Frequency 50HZ

Output Power 185KW

Protect Feature Totally Enclosed

Phase Three-phase

Certification CE, UL, Other, CE, UL, NEMA

AC Voltage Other, 380-415V

Place of Origin Shanghai, China

Efficiency IE 1

TDC Serie Fire Pump Motors' Main Performance Parameters(NEMA 415V 50HZ)
Serial NO.	Model NO.	Volts	Outputs (HP)	Hz/DC	Locked Torque Mutiple (Standard)	Maximum Torque Multiple (Standard)	Minimum Torque Multiple (Standard)	Sercice Factor	INS Class	RPM	The Test Environment Temperature
1	TDC254T15U4B	380-415V	15	50	160	200	110	1.15	F	2920	50℃
2	TDC256T20U4B	380-415V	20	50	150	200	105	1.15	F	2920	50℃
3	TDC284T25U4B	380-415V	25	50	150	200	105	1.15	F	2930	50℃
4	TDC286T30U4B	380-415V	30	50	150	200	100	1.15	F	2930	50℃
5	TDC324T40U4B	380-415V	40	50	140	200	100	1.15	F	2930	50℃
6	TDC326T50U4B	380-415V	50	50	140	200	100	1.15	F	2930	50℃
7	TDC364T60U4B	380-415V	60	50	140	200	100	1.15	F	2930	50℃
8	TDC365T75U4B	380-415V	75	50	140	200	100	1.15	F	2940	50℃
9	TDC405T100U4B	380-415V	100	50	125	200	100	1.15	F	2940	50℃
10	TDC444T125U4B	380-415V	125	50	110	200	100	1.15	F	2940	50℃
11	TDC445T150U4B	380-415V	150	50	110	200	100	1.15	F	2940	50℃
12	TDC447T200U4B	380-415V	200	50		200		1.15	F	1480	50℃
13	TDC447TS200U4B	380-415V	250	50		200		1.15	F		50℃
14	TDC449T250U4B	380-415V	250	50		200		1.15	F		50℃
