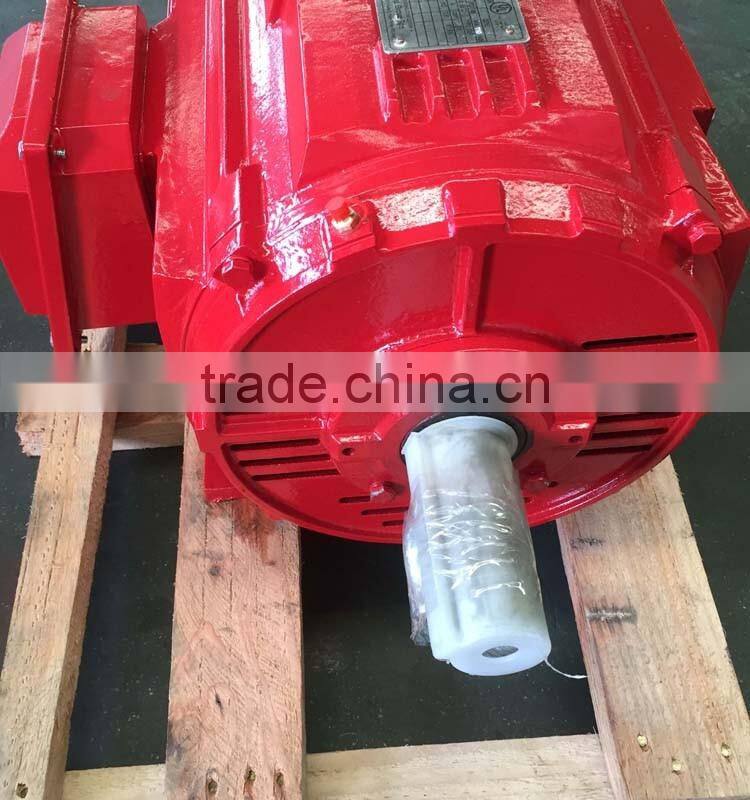

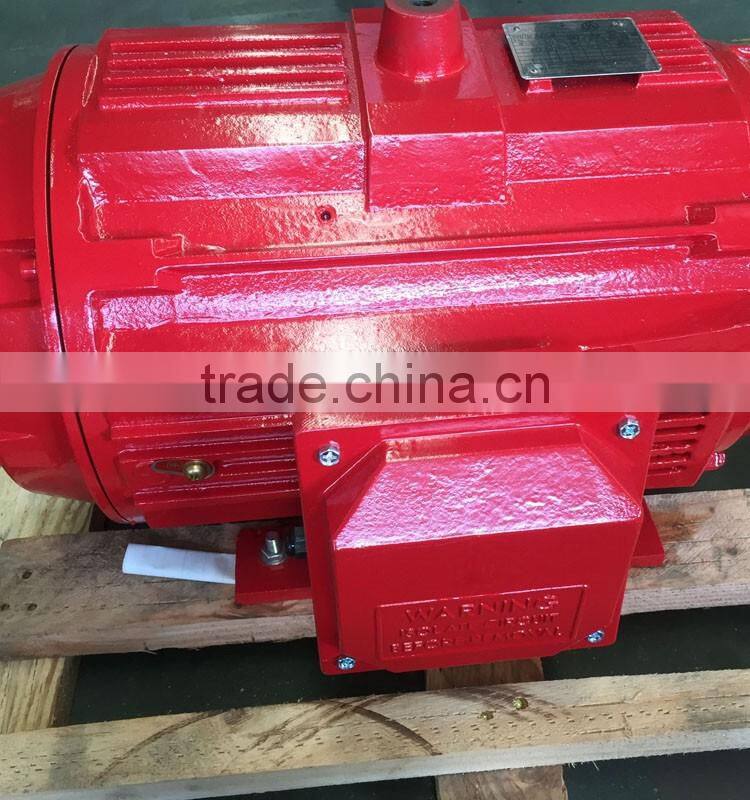

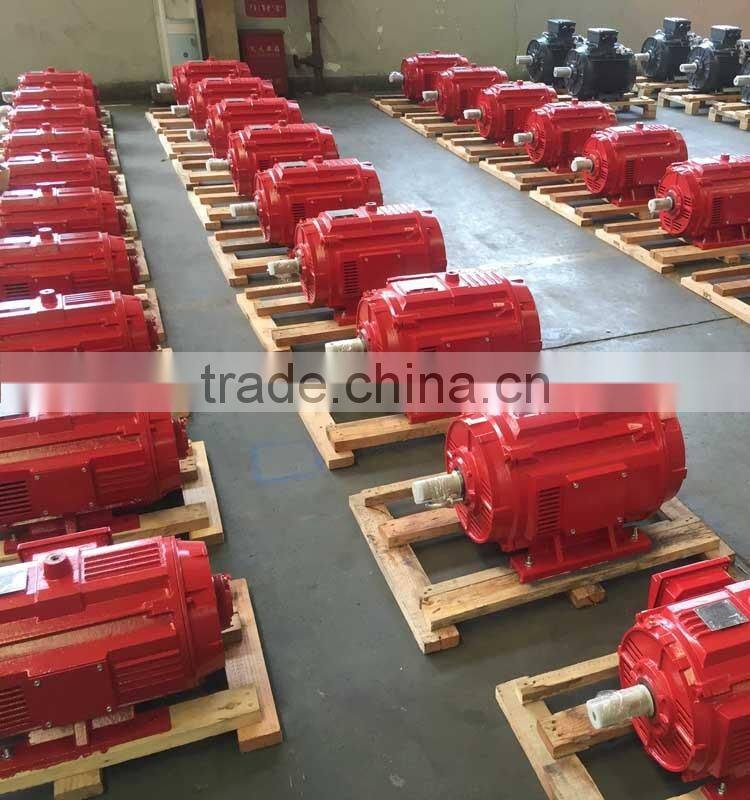

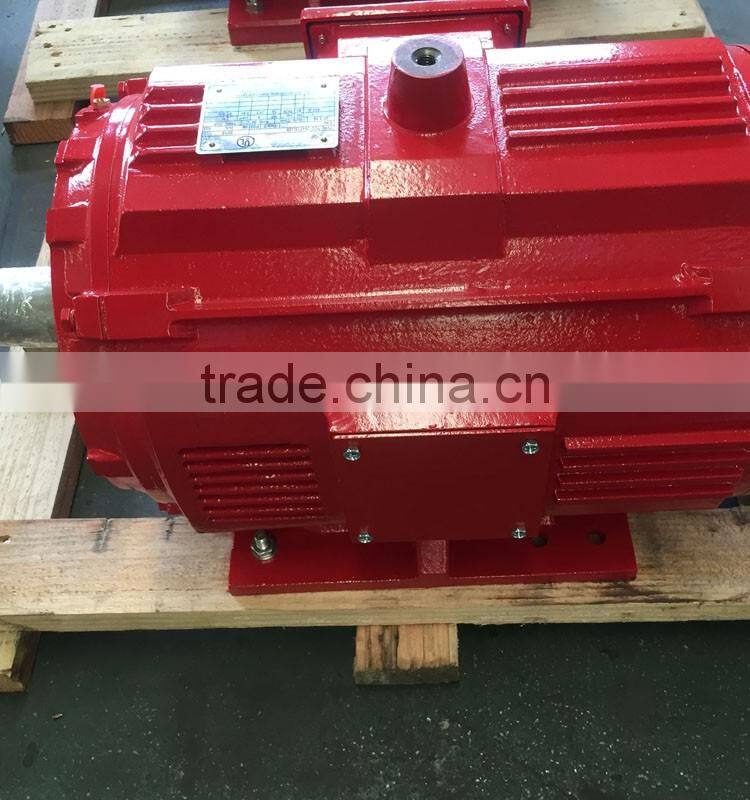

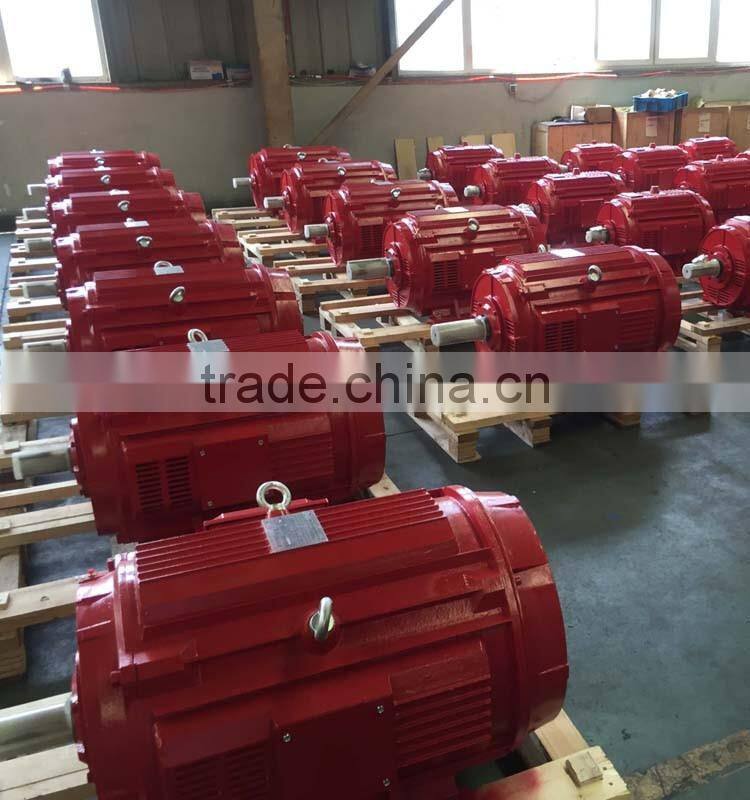

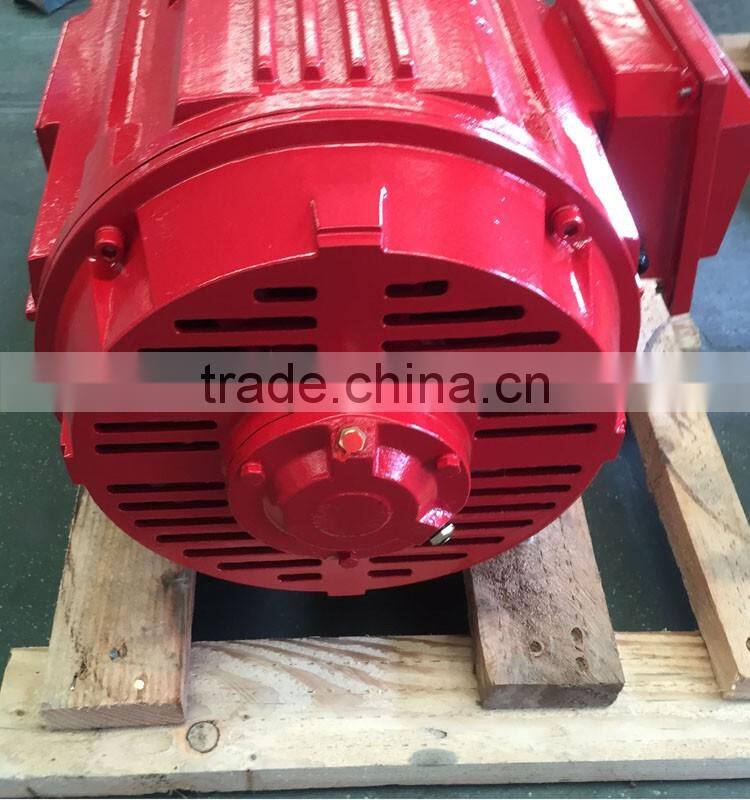

UL LISTED NEMA ODP STANDARD 150HP IE1 FIRE MOTOR (TDC445TS150U2B)

Name: UL LISTED NEMA ODP STANDARD 150HP IE1 FIRE MOTOR (TDC445TS150U2B)
Brand: HALOTOP Motor
SKU: 141199526
Availability: InStock

US$ 350 - 350 MOQ: 10 Pieces

Key Specifications

Brand Name:

HALOTOP Motor

Model Number:

TDC445TS150U2B

Type:

Synchronous Motor

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HALOTOP Motor

Model Number TDC445TS150U2B

Type Synchronous Motor

Frequency 50HZ

Output Power 110KW

Protect Feature Totally Enclosed

Phase Three-phase

Certification CE, UL, Other, CE, UL, NEMA

AC Voltage Other, 380-415V

Place of Origin Shanghai, China

Efficiency IE 1

TDC Serie Fire Pump Motors' Main Performance Parameters(NEMA 415V 50HZ)
Serial NO.	Model NO.	Volts	Outputs (HP)	Hz/DC	Locked currentA (standard) 415V	Locked torque mutiple (standard)	Maximum torque multiple (standard)	Minimum torque multiple (standard)	Sercice Factor	INS Class	RPM	The Test Environment Temperature
1	TDC254T15U2B	380-415V	15	50	141	130	200	100	1.15	F	2920	50℃
2	TDC256T20U2B	380-415V	20	50	177	130	200	100	1.15	F	2920	50℃
3	TDC284TS25U2B	380-415V	25	50	222	130	200	100	1.15	F	2930	50℃
4	TDC286TS30U2B	380-415V	30	50	164	130	200	100	1.15	F	2930	50℃
5	TDC324TS40U2B	380-415V	40	50	354	125	200	100	1.15	F	2930	50℃
6	TDC326TS50U2B	380-415V	50	50	441	120	200	100	1.15	F	2930	50℃
7	TDC364TS60U2B	380-415V	60	50	529	120	200	100	1.15	F	2930	50℃
8	TDC365TS75U2B	380-415V	75	50	661	105	200	95	1.15	F	2940	50℃
9	TDC405TS100U2B	380-415V	100	50	883	105	200	95	1.15	F	2940	50℃
10	TDC444TS125U2B	380-415V	125	50	1105	100	200	90	1.15	F	2940	50℃
11	TDC445TS150U2B	380-415V	150	50	1319	100	200	90	1.15	F	2940	50℃
