Specifications

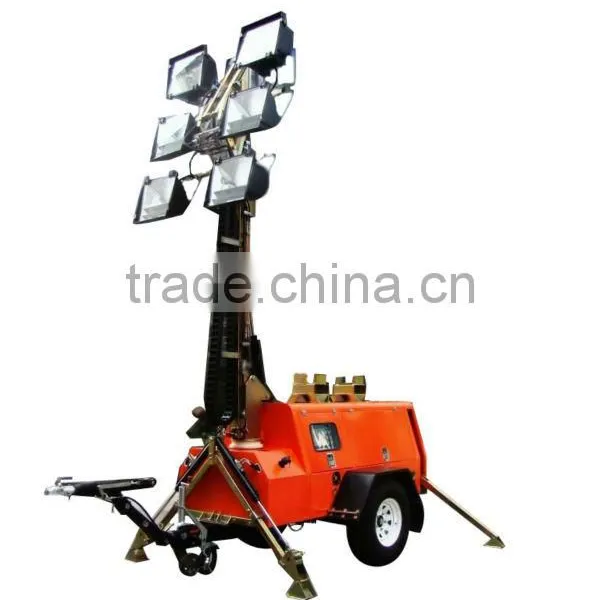

Hydraulic Type Vertical Lighting Tower1) Powered by famous engine
2) 9m mast
3) 4pcs X 1000W lamps
Hydraulic Type Vertical Lighting Tower /Lighting Tower
Features:
is entire hydraulic system with electrical controlling make every operation to be fast and flexible ,more safe and reliable .The six most shining floodlights can illuminate an area of 500 meters radius
1.The OL-KO Hexagon rubber suspension system is suitable for variously rough road ,and its maintenance -free axis's service life will be at least 20 years
2.the inertia braking system can mostly reduce the collision when the vehicle is braking .the adjustable tow bar in height is suitable for various kinds of vehicles
the fully bunded tank avoid the fuel spilling out
the hydraulic legs of individual operation are able to support stably and reliably even on rough ground ,so the lighting tower can also work in the 10 grade wind's weather .
| Standar Equipment | 6HKL6000 | |||||
| Lenght(mm) | 5200(3830,Dismantling the tow bar | |||||
| Width(mm) | 1820(1150,Dismantling the trailer axis&wheells | |||||
| Height(mm) | 2250 | |||||
| Mast Heigth(m,full extended | 9.7 | |||||
| Weight(wet) | 1850kgs | |||||
| Engine Model | V1505-BG(Kubota | 3TNV88(Yanmar) | 403D-15G | |||
| Frequency(hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Speed(rpm) | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 |
| Continued Power(Kva) | 12.5 | 15 | 12.5 | 15 | 12.5 | 14.5 |
| Number of Cylinders | 4 | 3 | 3 | |||
| Diesel engine characters | 4CYCLE,IN LINE ,WATERCOOLED DIESEL | |||||
| combustion type | PRECOMBUSTION | DIRECT INJECTION | INDIRECT INJECTION | |||
| engine Aspiration | Natural | |||||
| Emission Level | Stage3 | Tier4 | Stage3 | Tier 4 | Stage 2 | Tier4 |
| alternator | brushless&Single Phase | |||||
| Rating Voltage(v0 | 230 | |||||
| Alternator Insulation | H Class | |||||
| Fuel Tank type | Bimded Taml | |||||
| Fuel Tank capacity | 133 LITERS(35 US gALLONS ) | |||||
| Fuel Tank Operating Hours | 60(Original Gewiss) | |||||
| Type of Lights | Metal Halide Floodlight (Famous brand) | |||||
| Number & Power of Lights | 6x1000w | |||||
| Mast Lifting & extension | Hydraulic operation | |||||
| Mast Rotation | 180 hydraulic operation | |||||
| Light Bar Tilt | Hydraulic extending&90 electric operation | |||||
| Automatic Light Controller | ||||||
| Stabilisers Support | Hydraulic operation | |||||
| trailer suspension system | Hexagon rubber axis | |||||
| braking system | Inertia drum braking with adjustable hitch in height | |||||
| Hitch | Ball or O ring | |||||
| Tire Rim Size | 16" |
|||||
| Acoustic pressure | 70dB(A) at 7 meters away | |||||
| Output Sockets | 2 Piece(230v,16a) |
|||||
| Input terminals&mts | 1set(230,63a) | |||||
