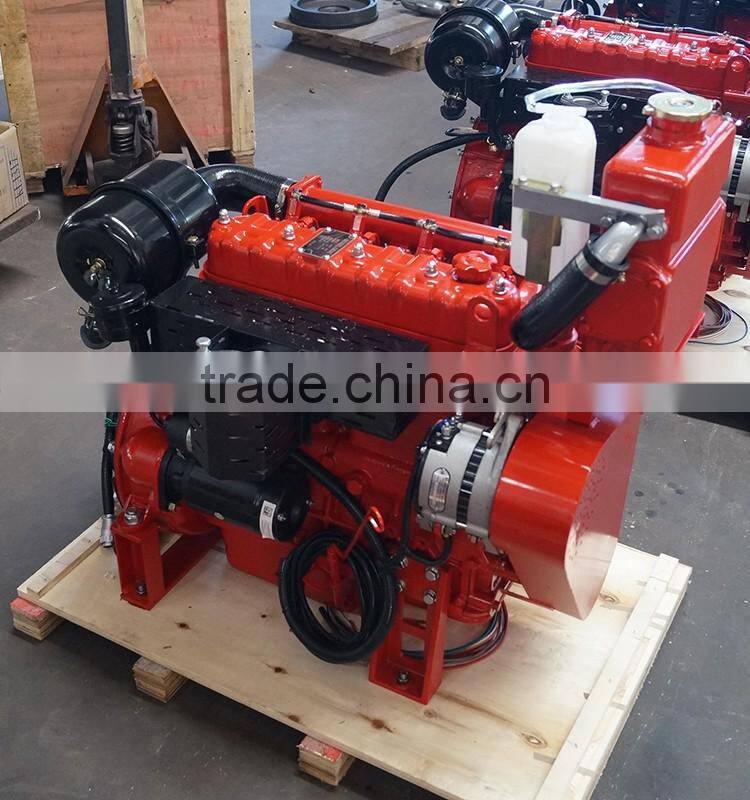

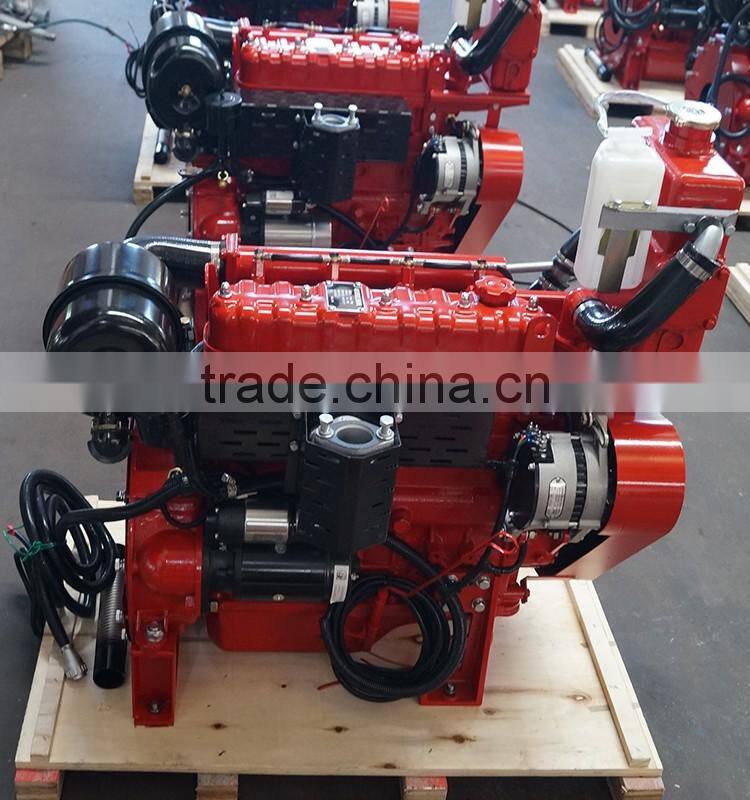

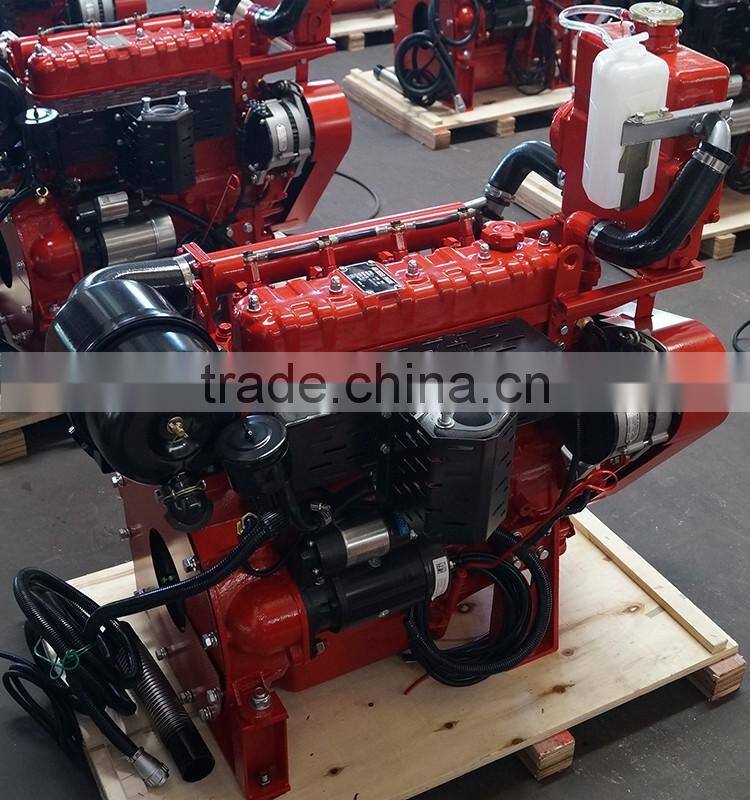

Product Description
FORM A:
| Specification of Diesel Engines | ||||||||
| MODEL | HT380 | HT480 | HT485 | HT490 | HT4100 | HT4102 | HT4105 | HT4108 |
| TYPE | VERTICAL,WATER-COOLED,FOUR-STROKR,DIRECTION-INJECTOR | |||||||
| NUMBER OF CYLINDERS | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| BORE*STROKE(MM) | 80*90 | 80*90 | 85*95 | 90*100 | 100*105 | 102*118 | 105*118 | 108*118 |
| RATE POWER(KW) | 20 | 27.8 | 34 | 42 | 58 | 63.8 | 70 | 80 |
| RATE POWER(HP) | 27 | 37 | 46 | 58 | 78 | 87 | 95 | 110 |
| RATE SPEED(R/MIN) | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| TOTAL DISPLACEMENT(L) | 1.357 | 1.809 | 2.156 | 2.54 | 3.298 | 3.857 | 4.087 | 4.324 |
| MAX.TORQUE(N.M) | 72.6 | 99.8 | 118.2 | 149.7 | 193.1 | 231.8 | 260 | 280 |
| MIN.SPECIFIC FUEL CONSUMPTION AT FULL LOAD | 247 | 247 | 262 | 247 | 238 | 238 | 238 | 238 |
| DIRECTION OF CRANKSHAFT ROTATION(FACING TO FLYWHEEL) | COUNTER-CLOCKWISE | |||||||
| LUBRICATING METHOD | PRESSURRE AND SPLASH LUBRICATING | |||||||
| STARTING METHOD | ELECTRIC STARTING | |||||||
| NET MASS(KG) | 230 | 250 | 260 | 300 | 350 | 360 | 380 | 400 |
FORM B:
| Specification of Diesel Engine | ||||||||
| MODEL | HT6102BQ | HT6102BZQ | HT6102BZS | HT6112T | HT6120T | HT6120Ti | HT6126Ti-1 | HT6126Ti-2 |
| TYPE | VERTICAL,WATER-COOLED,FOUR-STROKR,DIRECTION-INJECTOR | |||||||
| NUMBER OF CYLINDERS | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| BORE*STROKE(MM) | 102*118 | 102*118 | 102*118 | 112*135 | 120*130 | 126*130 | 126*130 | 126*130 |
| RATE POWER(KW) | 95 | 110 | 125 | 150 | 165 | 200 | 245 | 275 |
| RATE POWER(HP) | 130 | 150 | 170 | 204 | 225 | 272 | 334 | 374 |
| RATE SPEED(R/MIN) | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| TOTAL DISPLACEMENT(L) | 5.785 | 5.785 | 5.785 | 7.98 | 8.82 | 8.82 | 9.73 | 9.73 |
| MAX.TORQUE(N.M) | 372 | 420 | 470 | 760 | 1250 | 1250 | 1640 | 1640 |
| MIN.SPECIFIC FUEL CONSUMPTION AT FULLLOAD | 205 | 205 | 205 | 201 | 201 | 201 | 203 | 203 |
| DIRECTION OF CRANKSHAFT ROTATION(FACING TO FLYWHEEL) | COUNTER-CLOCKWISE | |||||||
| LUBRICATING METHOD | PRESSURRE AND SPLASH LUBRICATING | |||||||
| STARTING METHOD | ELECTRIC STARTING | |||||||
| NET MASS(KG) | 580 | 580 | 580 | 1200 | 1300 | 1300 | 1400 | 140 |
Packaging & Shipping
Our Services
WE HAVE SALES AND SERVICE CENTRE IN DUBAI,U.A.E.
